Description

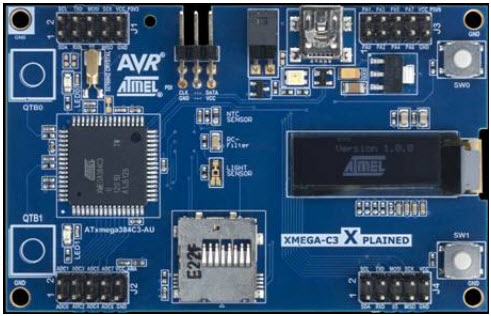

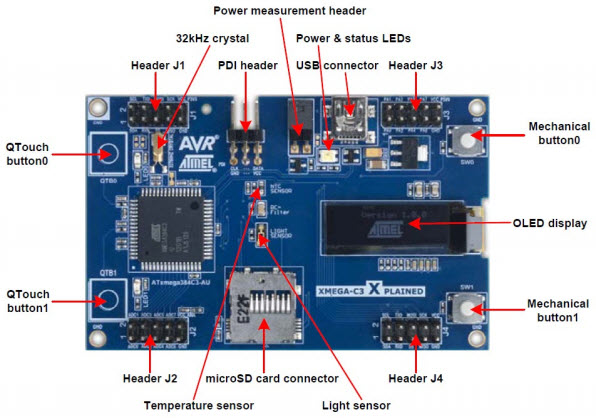

Microcontroller. It is a complete development platform that includes a XMEGA-C3 Xplained board, a USB cable, and a software package. The board features an ATxmega384C3 AVR MCU, a 32-pin TQFP package, and a wide range of peripherals. It also includes an on-board debugger, an LCD display, and a temperature sensor. The board is designed to be used with the Atmel Studio development environment, and it is compatible with the Atmel Software Framework. The board is ideal for automotive and transportation applications, and it can be used to develop a wide range of applications.

Specifications

Microchip Technology technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology .
  • Type
    Parameter
  • Factory Lead Time
    14 Weeks
  • Mounting Type
    Fixed
  • Series
    AVR® ATxmega
  • Published
    2013
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    MCU 16-Bit
  • Operating Supply Voltage
    5V
  • Interface
    USB
  • Number of Bits
    8
  • Core Processor
    AVR
  • Data Bus Width
    32b
  • Utilized IC / Part
    ATxmega384
  • Evaluation Kit
    Yes
  • Core Architecture
    AVR
  • Contents
    Board(s), OLED
  • Board Type
    Evaluation Platform
  • Platform
    XMEGA-C3 Xplained
  • REACH SVHC
    No SVHC
  • RoHS Status
    ROHS3 Compliant
0 Similar Products Remaining
Technical Documents

Associated Products

Part NumberManufacturerDescriptionStockRFQ
NCP1117LPST33T3G
ON SemiconductorLDO Regulator Pos 3.3V 1A 4-Pin(3 Tab) SOT-223 T/R8000RFQ
ATXMEGA256A3BU-AU
Microchip TechnologyMCU 8-bit/16-bit XMEGA AVR RISC 256KB Flash 1.8V/2.5V/3.3V 64-Pin TQFP2700RFQ
