NXP USA Inc. TWR-S08DC-PT60NXP TWR-S08DC-PT60 Tower System Daughter Card, For MC9S08P, HCS08, GPIO via LEDs, Touch-sensing Interface
Applications:
Embedded System >
Microcontroller
End Products:
Power ManagementBattery ChargerPower ToolHVACHome AppliancesElectric MotorLighting control systemsMetering
ECAD Model:
Description

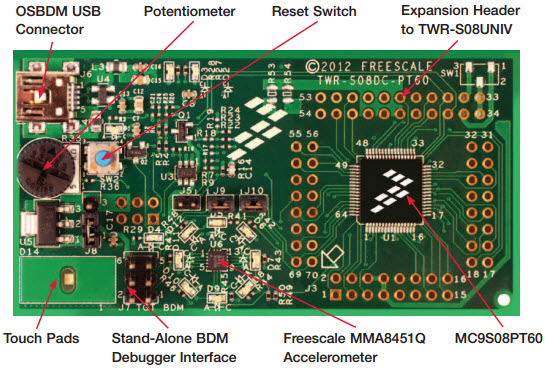

The NXP Semiconductors TWR-S08DC-PT60 is a Tower System Daughter Card for the PC9S08PT60VLH 5-Volt, 8-bit MCU, Power Management Module. This daughter card is designed to provide a complete development platform for the PC9S08PT60VLH MCU. It features a wide range of peripherals, including a USB 2.0 port, an LCD display, a keypad, and a real-time clock. The daughter card also includes a power management module, which allows the user to monitor and control the power consumption of the MCU. The TWR-S08DC-PT60 is an ideal solution for embedded applications that require low power consumption and high performance.
Specifications
NXP USA Inc. technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. .
- TypeParameter
- Mounting TypeFixed
- SeriesHCS08
- Published2011
- Part StatusObsolete
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypeMCU 8-Bit
- Core ProcessorHCS08
- Utilized IC / PartMC9S08P
- ContentsBoard(s), Cable(s)
- Board TypeEvaluation Platform
- PlatformTower System
- RoHS StatusROHS3 Compliant
0 Similar Products Remaining
Technical Documents
Associated Products
| Part Number | Manufacturer | Description | Stock | RFQ |
|---|---|---|---|---|
| Diodes Incorporated | IC TRNSLTR BIDIRECTIONAL SOT363 | 3000 | RFQ | |
| Diodes Incorporated | LOGIC LVC 1G TRANSLATOR SOT26 | 0 | RFQ | |
| Nexperia USA Inc. | Voltage Level Translator 1-CH Bidirectional 6-Pin XSON T/R | 3646 | BUY | |
| Nexperia USA Inc. | IC TRNSLTR BIDIRECTIONAL 6XSON | 25 | BUY | |
| Diodes Incorporated | 74LVC Series 5.5 V Push Pull Single SMT Single Bit Voltage Translator - SOT-563 | 0 | BUY | |
| Diodes Incorporated | Translation - Voltage Levels SGL BIT Dual PS 3State 1.65V to 5.5V | 54800 | RFQ | |
| Nexperia | Voltage Level Translator 1-CH Bidirectional 6-Pin XSON | 10000 | RFQ | |
| Nexperia USA Inc. | IC TRNSLTR BIDIRECTIONAL 6XSON | 3996 | BUY | |
| Nexperia USA Inc. | IC TRNSLTR BIDIRECTIONAL 6TSSOP | 3000 | BUY |

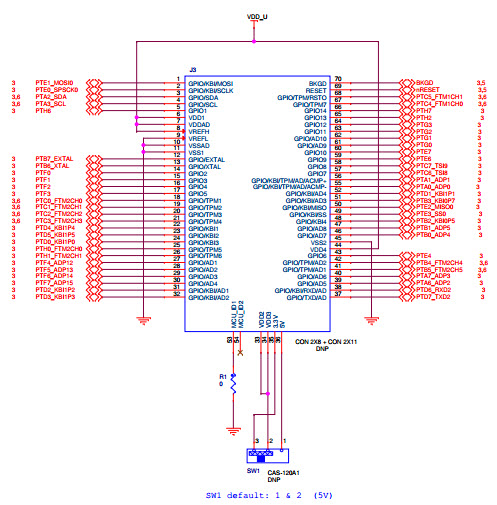

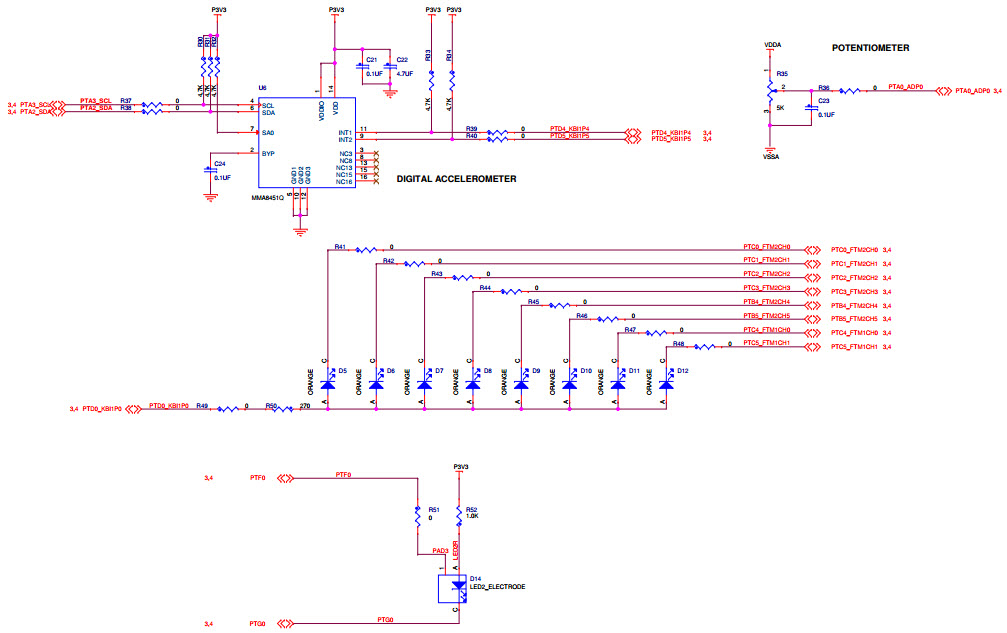

Related Reference Design
