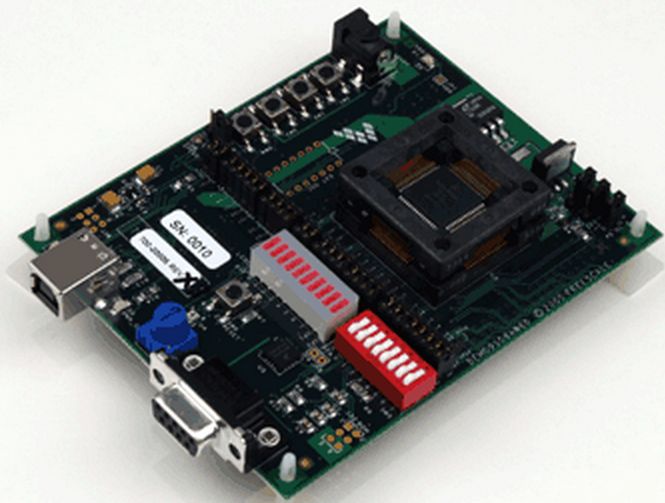

NXP USA Inc. DEMO9S08AC60ENXP DEMO9S08AC60E Demo Board, Flexis, MC9S08, USB-BDM, HCS08, On-Board Visible Light Sensor, Master Reset Switch
Applications:
Embedded System >
Microcontroller
End Products:
IndustrialMotion Motor ControlDishwasherWashing MachineRefrigerator and freezerDryerHVACHome AppliancesIndustrialBuilding Management
ECAD Model:
Description
The NXP Semiconductors DEMO9S08AC60E-E Demonstration Board is designed to showcase the features of the MC9S08AC60 high-performance, S08AC Microcontroller family. This board is ideal for industrial automation applications, providing a comprehensive set of features and peripherals to help developers quickly and easily evaluate the capabilities of the MC9S08AC60. The board includes a USB-based debug interface, a power supply, a LCD display, and a variety of I/O connectors. The board also includes a variety of software examples to help developers get started quickly. With its comprehensive set of features and peripherals, the NXP Semiconductors DEMO9S08AC60E-E Demonstration Board is an ideal platform for evaluating the capabilities of the MC9S08AC60 microcontroller family.
Specifications
NXP USA Inc. technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. .
- TypeParameter
- Mounting TypeFixed
- SeriesHCS08
- Published2007
- Part StatusObsolete
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypeMCU 8-Bit
- Utilized IC / PartMC9S08AC60
- ContentsBoard(s), Cable(s)
- Board TypeEvaluation Platform
- RoHS StatusROHS3 Compliant
0 Similar Products Remaining
Technical Documents
Associated Products
| Part Number | Manufacturer | Description | Stock | RFQ |
|---|---|---|---|---|
| ON Semiconductor | IC SENSOR UNDERVOLTAGE 5V MICRO8 | 42 | BUY | |
| Texas Instruments | IC OPAMP GP 1MHZ RRO SOT23-5 | 326500 | RFQ | |
| Texas Instruments | IC RS232 MULTCH DRVR/RCVR 28SOIC | 0 | RFQ | |
| Texas Instruments | IC RS232 MULTCH DRVR/RCVR 28SSOP | 292 | RFQ | |
| Texas Instruments | Translation - Voltage Levels SNGL Bit Dual Supply Bus Transceiver | 40 | BUY | |
| Analog Devices, Inc. | IC REG LDO 3.3V 1.5A D2PAK | 64 | RFQ |

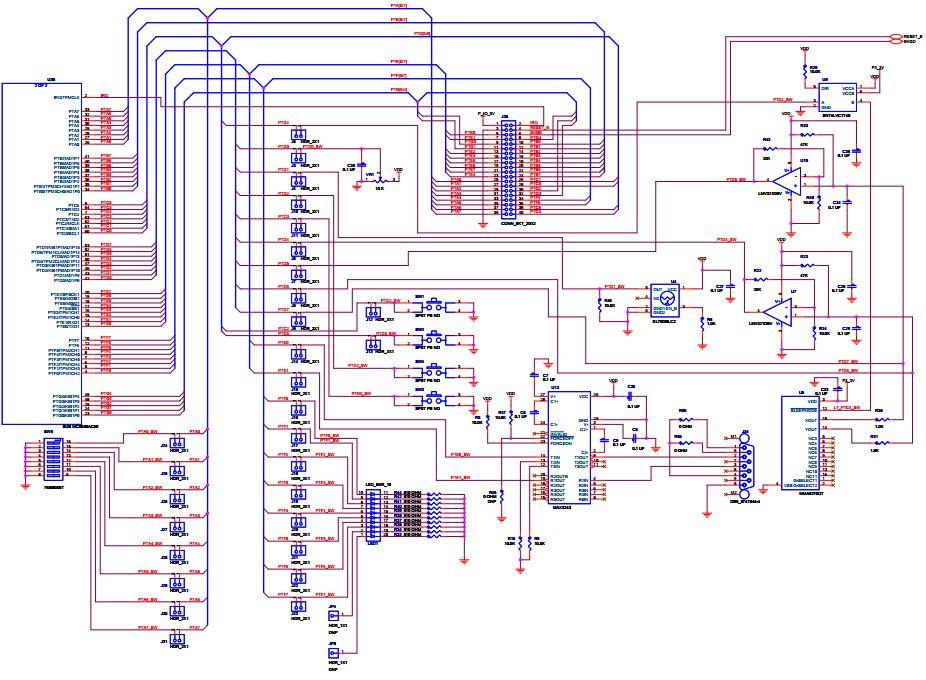

Related Reference Design
