NXP USA Inc. DEMO9S08DZ60NXP DEMO9S08DZ60 Demo Board for MC9S08DZ60 Microcontroller
Applications:
Embedded System >
Microcontroller
End Products:
AutomotiveMotion Motor ControlElectric Parking BrakeHVACLightingVacuum CleanerSafetyWindow Lift and Seat ControlDoors
ECAD Model:
Description

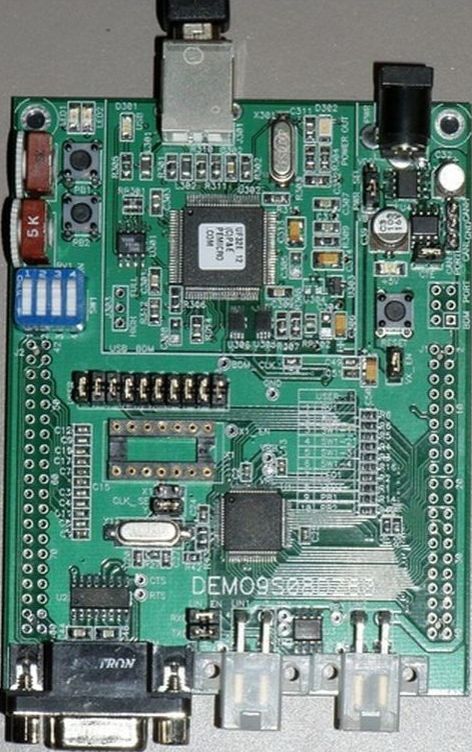

The NXP Semiconductors DEMO9S08DZ60-DZ60 is a demonstration board for the MC9S08DZ60 microcontroller, designed for automotive and transportation applications. It features a wide range of peripherals, including a CAN transceiver, a LIN transceiver, a 12-bit ADC, and a 10-bit DAC. The board also includes a USB interface, allowing for easy connection to a PC for programming and debugging. The board is powered by a 5V DC power supply, and is designed to be used with the CodeWarrior Development Studio for S08 microcontrollers. With its wide range of features, the DEMO9S08DZ60-DZ60 is an ideal platform for developing and testing automotive and transportation applications.
Specifications
NXP USA Inc. technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. .
- TypeParameter
- Factory Lead Time6 Weeks
- Mounting TypeFixed
- SeriesHCS08
- Published2002
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypeMCU 8-Bit
- Utilized IC / PartMC9S08DZ60
- ContentsBoard(s), Cable(s)
- Board TypeEvaluation Platform
- RoHS StatusROHS3 Compliant
0 Similar Products Remaining
Technical Documents
Associated Products
| Part Number | Manufacturer | Description | Stock | RFQ |
|---|---|---|---|---|
| STMicroelectronics | STMICROELECTRONICS L4931CD50-TR Fixed LDO Voltage Regulator | 19989 | RFQ | |
| NXP USA Inc. | LIN Transceiver 20kBd Automotive 8-Pin SO T/R | 15 | BUY | |
| NXP USA Inc. | CAN 1MBd Standby 5V Automotive 8-Pin SO T/R | 995 | RFQ |
