NXP USA Inc. DEMO9S08EL32AUTODevelopment Boards & Kits - S08 / S12 EL32 DEMO BOARD AUTO
Applications:
Embedded System >
Microcontroller
End Products:
Consumer ElectronicsConsumer ElectronicsPower ToolMotor ControlSecurity SystemHealth SystemFire AlarmSmart SensorHandheld POS ScannerIndustrial Networking
ECAD Model:
Description

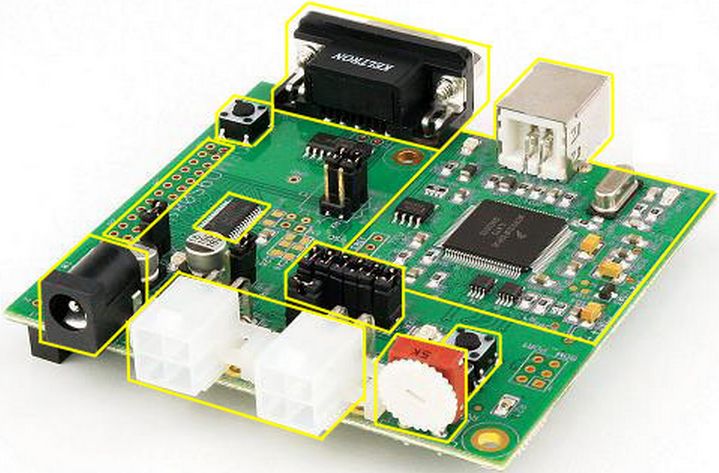

The NXP Semiconductors DEMO9S08EL32AUTO-AUTO is a demonstration board for the MC9S08EL32 S08EL/SL device, designed for automotive, consumer electronics, and industrial control applications. It features a 32-bit S08EL/SL device with a maximum operating frequency of 24 MHz, and a wide range of peripherals, including a CAN module, a LIN module, a 12-bit ADC, and a 10-bit DAC. The board also includes a USB interface, an LCD display, and a keypad for user interaction. The board is designed to be used with the CodeWarrior Development Studio for S08EL/SL, allowing users to quickly and easily develop applications for the MC9S08EL32 device.
Specifications
NXP USA Inc. technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. .
- TypeParameter
- Factory Lead Time11 Weeks
- Mounting TypeFixed
- SeriesHCS08
- Published2008
- Part StatusActive
- Moisture Sensitivity Level (MSL)1 (Unlimited)
- TypeMCU 8-Bit
- Utilized IC / PartMC9S08EL32
- ContentsBoard(s), Cable(s)
- Board TypeEvaluation Platform
- RoHS StatusROHS3 Compliant
0 Similar Products Remaining
Technical Documents
Associated Products
| Part Number | Manufacturer | Description | Stock | RFQ |
|---|---|---|---|---|
| STMicroelectronics | STMICROELECTRONICS L4931CD50-TR Fixed LDO Voltage Regulator, 7V to 20V, 400mV Dropout, 5Vout, 300mAout, SOIC-8 | 19989 | RFQ | |
| NXP USA Inc. | LIN Transceiver 20kBd Automotive 8-Pin SO T/R | 15 | BUY |

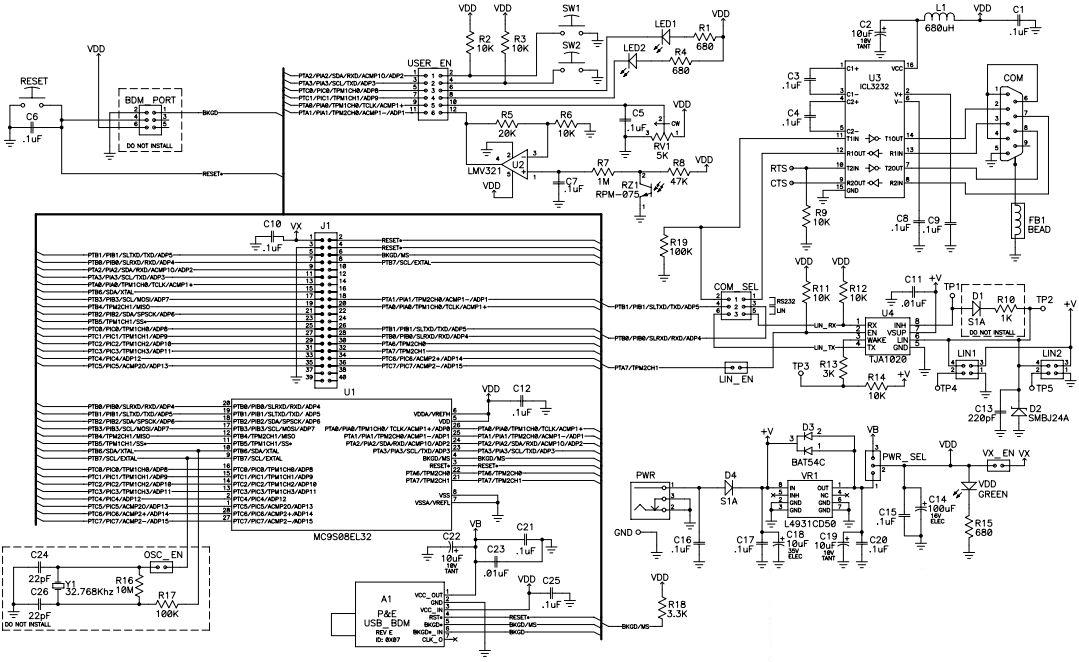

Related Reference Design
