ON Semiconductor NCV890104MWGEVBNCV890104 Switching Regulator Evaluation Board

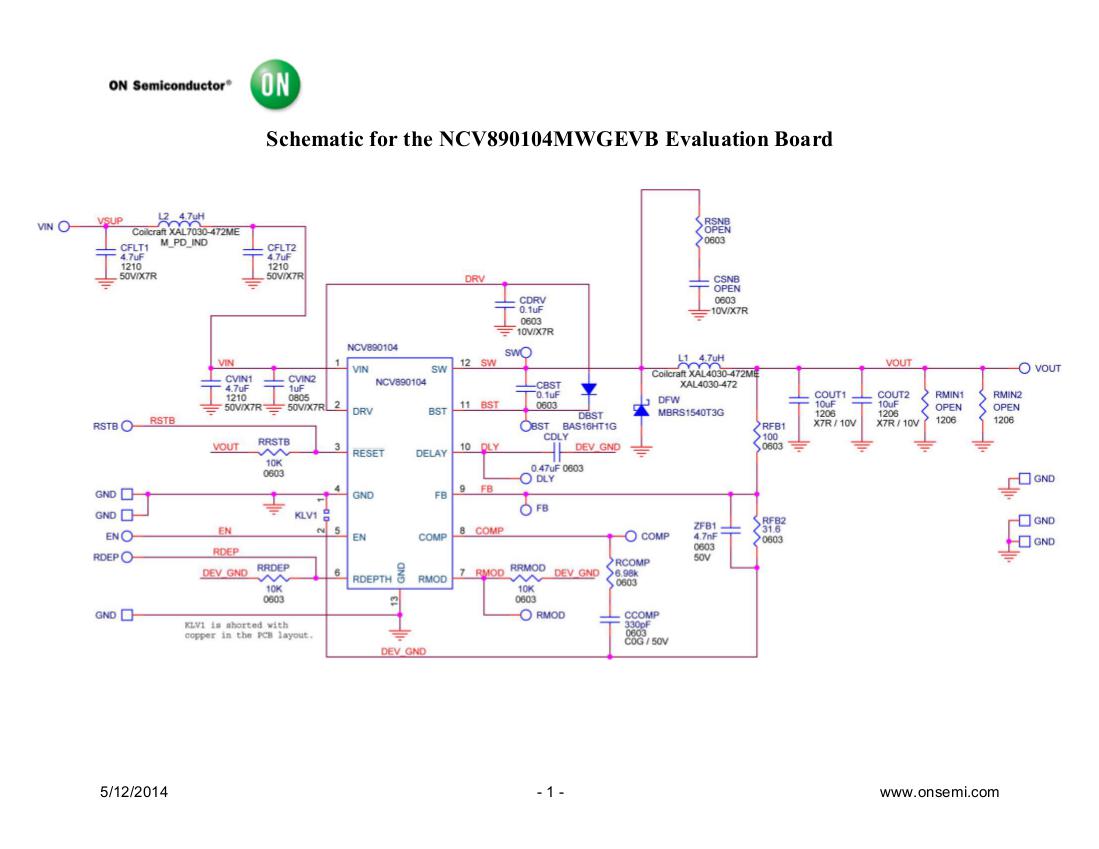

ON Semiconductor NCV890104MWGEVB Reference Design 4
ON Semiconductor NCV890104MWGEVB Reference Design 1
ON Semiconductor NCV890104MWGEVB Reference Design 2
ON Semiconductor NCV890104MWGEVB Reference Design 3
ON Semiconductor NCV890104MWGEVB Reference Design 4
ON Semiconductor NCV890104MWGEVB Reference Design 1
ON Semiconductor NCV890104MWGEVB Reference Design 1
ON Semiconductor NCV890104MWGEVB Reference Design 2
ON Semiconductor NCV890104MWGEVB Reference Design 3
ON Semiconductor NCV890104MWGEVB Reference Design 4

Applications:

Power Supplies >

DC to DC Single Output Power Supplies

End Products:

AudioAutomotive Vision ControlAudioElectrocardiograph Battery PoweredInfotainmentAutomotiveSafetyInstrumentation and Measurement

ECAD Model:

Buy

Description

The ON Semiconductor NCV890104MWGEVB-MWGEVB is an automotive switching regulator spread spectrum evaluation board and audio amplifier evaluation board. It is designed to evaluate the performance of the NCV890104 switching regulator and audio amplifier. The board features a wide input voltage range of 4.5V to 40V, adjustable output voltage, and a spread spectrum frequency range of 1.5kHz to 2.5kHz. It also includes a power-on reset circuit, over-voltage protection, and thermal shutdown protection. The board is ideal for automotive applications such as powertrain, body electronics, and infotainment systems.

Specifications

ON Semiconductor technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor .
  • Type
    Parameter
  • Factory Lead Time
    8 Weeks
  • Published
    2007
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Max Operating Temperature
    150°C
  • Min Operating Temperature
    -40°C
  • Frequency - Switching
    2MHz
  • Utilized IC / Part
    NCV890104
  • Supplied Contents
    Board(s)
  • Evaluation Kit
    Yes
  • Board Type
    Fully Populated
  • Main Purpose
    DC/DC, Step Down
  • Outputs and Type
    1, Non-Isolated
  • Regulator Topology
    Buck
  • RoHS Status
    ROHS3 Compliant
