Silicon Labs 1060-490-DKDevelopment Boards & Kits - Wireless Si1060 490MHz NoWire MCU Development Kit

Silicon Labs 1060-490-DK Reference Design 10
Silicon Labs 1060-490-DK Reference Design 1
Silicon Labs 1060-490-DK Reference Design 2
Silicon Labs 1060-490-DK Reference Design 3
Silicon Labs 1060-490-DK Reference Design 4
Silicon Labs 1060-490-DK Reference Design 5
Silicon Labs 1060-490-DK Reference Design 6
Silicon Labs 1060-490-DK Reference Design 7
Silicon Labs 1060-490-DK Reference Design 8
Silicon Labs 1060-490-DK Reference Design 9
Silicon Labs 1060-490-DK Reference Design 10
Silicon Labs 1060-490-DK Reference Design 1
Silicon Labs 1060-490-DK Reference Design 1
Silicon Labs 1060-490-DK Reference Design 2
Silicon Labs 1060-490-DK Reference Design 3
Silicon Labs 1060-490-DK Reference Design 4
Silicon Labs 1060-490-DK Reference Design 5
Silicon Labs 1060-490-DK Reference Design 6
Silicon Labs 1060-490-DK Reference Design 7
Silicon Labs 1060-490-DK Reference Design 8
Silicon Labs 1060-490-DK Reference Design 9
Silicon Labs 1060-490-DK Reference Design 10

Applications:

Embedded System >

Microcontroller

End Products:

SecurityHome AutomationTelemetrySecurity SystemHVACAccess ControlRemote ControlHealth SystemLighting ControlFire AlarmRemote Keyless EntryGarage Door OpenerMetering

ECAD Model:

Buy

Description

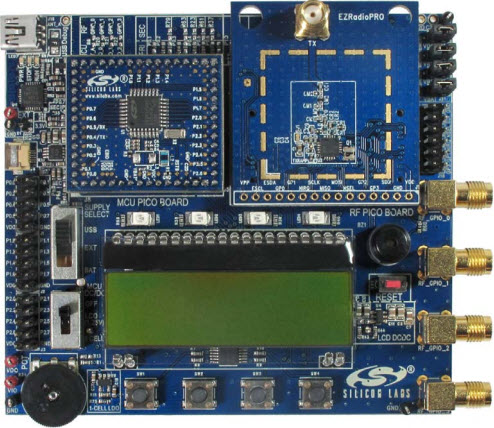

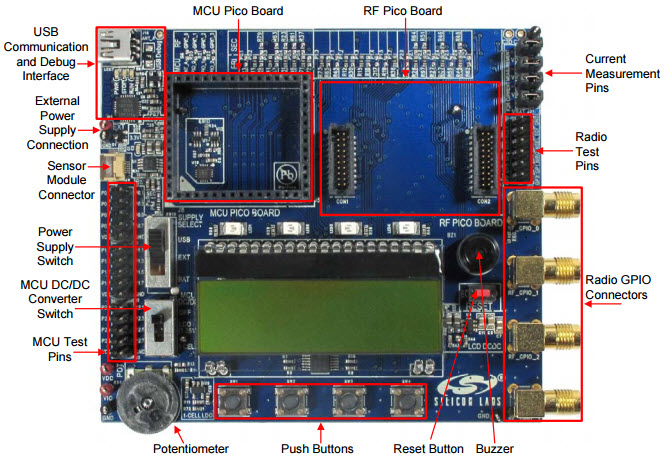

The Silicon Labs 1060-490-DK is a development kit for the Si1060 490-MHz Wireless MCU Security SoC. It is designed to help developers quickly and easily create secure wireless applications. The kit includes a Si1060 490-MHz Wireless MCU Security SoC, a USB-based debug adapter, a USB-to-UART bridge, and a variety of other components. The kit also includes a comprehensive set of software tools, including a software development kit, a wireless protocol stack, and a graphical user interface. The kit is ideal for developing secure wireless applications for the Internet of Things (IoT) and other embedded applications.

Specifications

Silicon Labs technical specifications, attributes, parameters and parts with similar specifications to Silicon Labs .
  • Type
    Parameter
  • Factory Lead Time
    2 Weeks
  • Series
    EZRadioPRO®
  • Published
    2000
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    Transceiver
  • Frequency
    490MHz
  • Operating Supply Voltage
    1.9V
  • Interface
    USB
  • Data Bus Width
    8b
  • Supplied Contents
    Board(s), Cable(s)
  • Evaluation Kit
    Yes
  • Core Architecture
    8051
  • RoHS Status
    RoHS Compliant
