STMicroelectronics SPC560BADPT144SDaughter Cards & OEM Boards Socketed Mini Mod SPC5608B QFP144

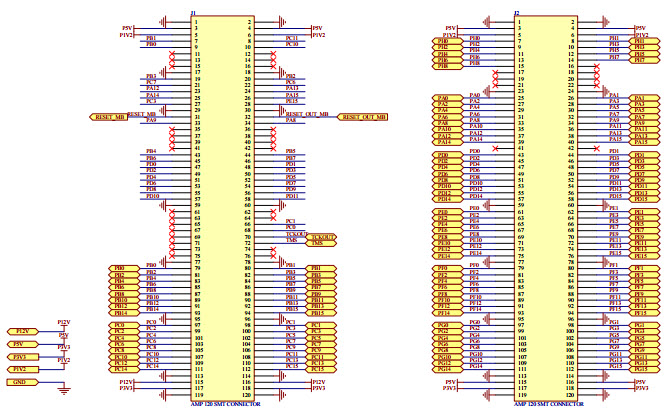

STMicroelectronics SPC560BADPT144S Reference Design 2

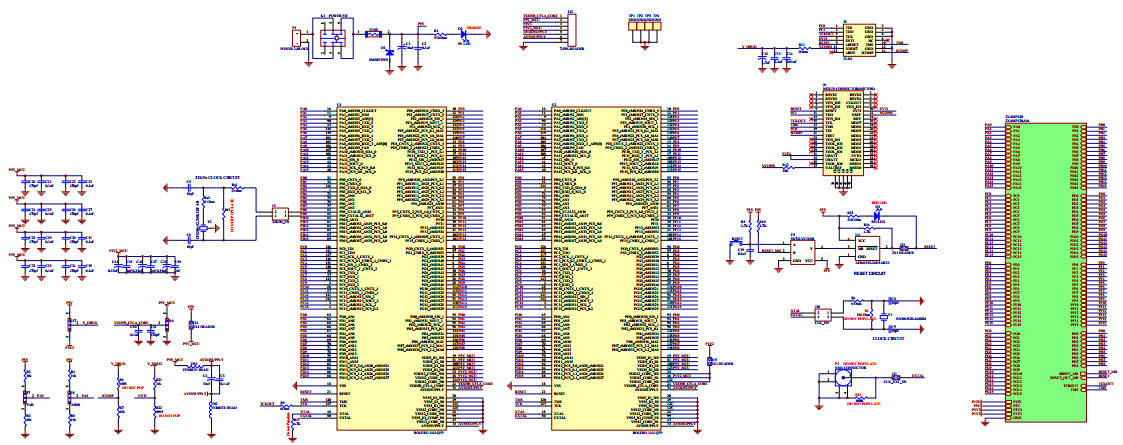

STMicroelectronics SPC560BADPT144S Reference Design 1

Applications:

Embedded System >

Microcontroller

End Products:

AutomotiveAutomotive - Body Electronics

ECAD Model:

Buy

Description

The STMicroelectronics SPC560BADPT144S-S, SPC560BADPT144S, Daughter/Adapter Board is designed for use with the SPC560B40L5 and SPC560B50L5 SPC560 series 512KB/1.5MB MCU devices in QFP144 package. This board is ideal for automotive and transportation applications, providing a reliable and cost-effective solution for prototyping and development. It features a wide range of peripherals, including CAN, LIN, SPI, I2C, UART, and GPIO, as well as a JTAG connector for debugging. The board also includes a power supply, a USB connector, and a reset button. The board is designed to be used with the STMicroelectronics SPC560B40L5 and SPC560B50L5 MCU devices, and is compatible with a variety of development tools.

Specifications

STMicroelectronics technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics .

Type
Parameter
Mounting Type
Fixed
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Type
MCU 32-Bit
Core Processor
e200
Utilized IC / Part
SPC560B
Evaluation Kit
Yes
Contents
Board(s)
Board Type
Evaluation Platform
RoHS Status
ROHS3 Compliant

0 Similar Products Remaining

Technical Documents

SPC560 Brief

Associated Products
