Description

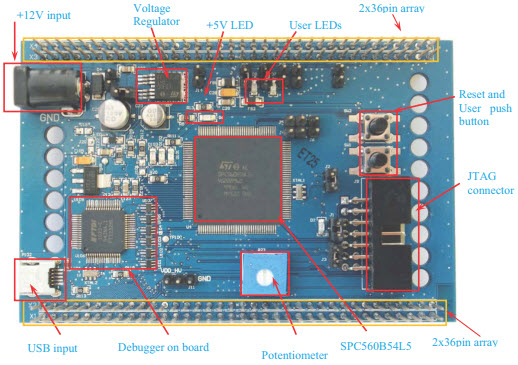

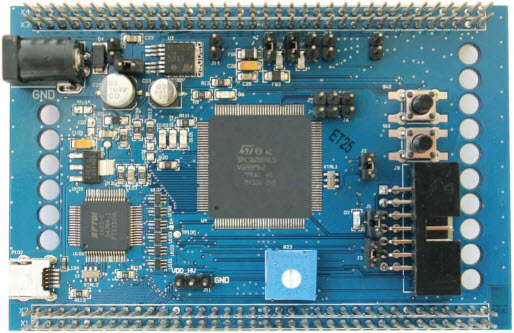

The STMicroelectronics SPC560B-DIS, SPC560B-DIS, SPC56B-Discovery Discovery Kit is a comprehensive development platform for the SPC56 B line of microcontrollers. It is equipped with the SPC560B54L5 MCU, which is a 32-bit automotive-grade microcontroller with a wide range of features, including a high-performance ARM Cortex-M4 core, advanced security and safety features, and a wide range of peripherals. The kit also includes a range of development tools, such as an integrated development environment, a debugger, and a range of software libraries. The kit is designed to enable rapid prototyping and development of automotive applications, and is ideal for use in automotive, industrial, and consumer applications.

Specifications

STMicroelectronics technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics .
  • Type
    Parameter
  • Mounting Type
    Fixed
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    MCU 32-Bit
  • Operating Supply Voltage
    5V
  • Interface
    USB
  • Number of Bits
    32
  • Core Processor
    e200
  • Data Bus Width
    32b
  • Utilized IC / Part
    SPC560B
  • Contents
    Board(s)
  • Board Type
    Evaluation Platform
  • Platform
    Discovery
  • REACH SVHC
    No SVHC
  • RoHS Status
    ROHS3 Compliant
0 Similar Products Remaining
