STMicroelectronics STEVAL-ILL054V1BOARD EVAL LED DVR LED2001 QFN

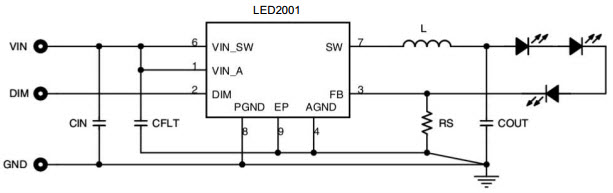

STMicroelectronics STEVAL-ILL054V1 Reference Design 3

STMicroelectronics STEVAL-ILL054V1 Reference Design 1

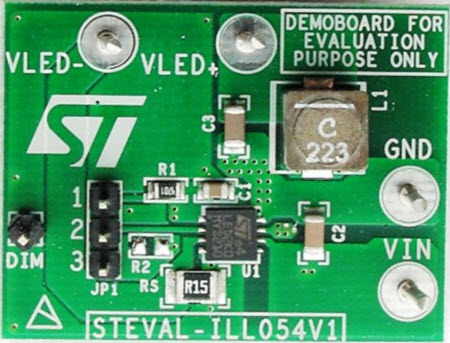

STMicroelectronics STEVAL-ILL054V1 Reference Design 2

Applications:

Lighting >

High Brightness LED Driver

End Products:

LightingHigh-Brightness LED DriverHalogen LightingSignage Lighting

ECAD Model:

Buy

Description

The STMicroelectronics STEVAL-ILL054V1 Evaluation Board is a powerful tool for lighting applications. It is based on the LED2001 4A HB LED driver with dimming function in a QFN package. This board provides a complete solution for driving high-brightness LEDs with dimming control. It features a wide range of dimming functions, including PWM, analog, and digital dimming. The board also includes a wide range of protection features, such as over-temperature protection, over-current protection, and short-circuit protection. With its high efficiency and low power consumption, the STEVAL-ILL054V1 Evaluation Board is an ideal solution for lighting applications.

Specifications

STMicroelectronics technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics .
