STMicroelectronics STEVAL-SPBT4ATV3Power Management IC Development Tools SPBT2632C1A USB Module Dongle V3.0

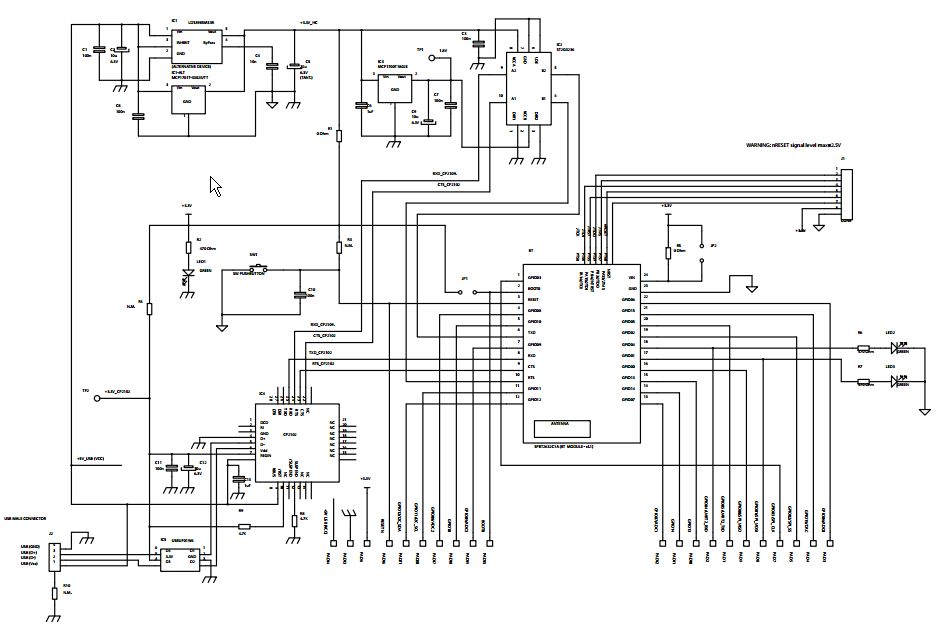

STMicroelectronics STEVAL-SPBT4ATV3 Reference Design 3

STMicroelectronics STEVAL-SPBT4ATV3 Reference Design 1

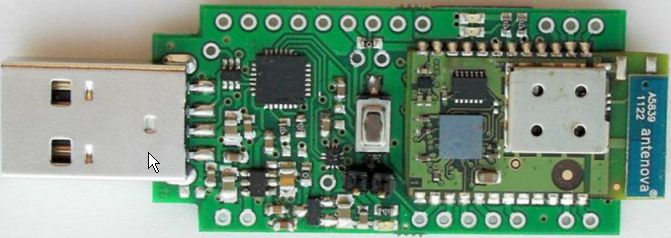

STMicroelectronics STEVAL-SPBT4ATV3 Reference Design 2

Applications:

Wireless Communication >

Wireless Systems

End Products:

Consumer ElectronicsData Acquisition SystemMonitoring and TherapySecurityHealth SystemSystem Monitoring and ControlSmart SensorIndustrial ControlUSB DongleDiagnosticsBluetoothMachine Control using DeviceNet

ECAD Model:

Buy

Description

The STMicroelectronics STEVAL-SPBT4ATV3 is a USB dongle demonstration board for the Bluetooth Class-1 SPBT2632C1A.AT2 module. It is designed for consumer electronics applications and provides a convenient way to evaluate the features and performance of the module. The board includes a USB connector, a power switch, a reset button, and a status LED. It also includes a Bluetooth antenna and a USB cable for easy connection to a PC. The board is compatible with Windows, Linux, and Android operating systems, and supports Bluetooth Low Energy (BLE) and Bluetooth Classic (BR/EDR) protocols. The board is ideal for applications such as wireless audio, home automation, and remote control.

Specifications

STMicroelectronics technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics .

Type
Parameter
Package / Case
Module
Packaging
Bulk
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
Not Applicable
Type
Transceiver; Bluetooth® Classic
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Frequency
2.4GHz
Interface
USB
Supplied Contents
Board(s)
Evaluation Kit
Yes
RoHS Status
ROHS3 Compliant
Radiation Hardening
No
REACH SVHC
No SVHC
Lead Free
Lead Free

0 Similar Products Remaining

Technical Documents

AT Command Set Firmware Manual

Associated Products

Part Number	Manufacturer	Description	Stock	RFQ
CP2102-GMR	Silicon Labs	USB-to-UART 1-CH 640byte FIFO 3.3V Automotive 28-Pin QFN EP T/R	235	RFQ
CP2102N-A02-GQFN24	Silicon Labs	SILICON LABS - CP2102N-A02-GQFN24 - Interface Bridges	1677	RFQ
CP2102N-A02-GQFN28R	Silicon Labs	IC Usb to Uart Bridge QFN28	0	RFQ
CP2102N-A02-GQFN28	Silicon Labs	Full Speed USB to UART Bridge USB 2.0 3.3V Tube Automotive 28-Pin QFN EP	0	BUY
USBUF01W6	STMicroelectronics	EMI Filter Noise Suppression 30MHz to 1000MHz Gull Wing SMD Automotive T/R	2945	RFQ
MCP1700T-1802E/TT	Microchip Technology	IC REG LINEAR 1.8V 200MA SOT23-3	283	RFQ
LDS3985M33R	STMicroelectronics	LDS3985 Series 3.3 V 300 mA Fixed Low Noise LDO BiCMOS Regulator - SOT-23-5	15000	RFQ
CP2102N-A02-GQFN24R	Silicon Labs	IC Usb to Uart Bridge QFN24	10	RFQ
CP2102N-A02-GQFN20R	Silicon Labs	IC Usb to Uart Bridge QFN20	40000	RFQ
CP2102N-A02-GQFN20	Silicon Labs	Full Speed USB to UART Bridge USB 2.0 3.3V Tube Automotive 20-Pin QFN EP	89	BUY
