STMicroelectronics STM32VLDISCOVERYDISCOVERY STM32F10X EVAL BRD

STMicroelectronics STM32VLDISCOVERY Reference Design 6
STMicroelectronics STM32VLDISCOVERY Reference Design 1
STMicroelectronics STM32VLDISCOVERY Reference Design 2
STMicroelectronics STM32VLDISCOVERY Reference Design 3
STMicroelectronics STM32VLDISCOVERY Reference Design 4
STMicroelectronics STM32VLDISCOVERY Reference Design 5
STMicroelectronics STM32VLDISCOVERY Reference Design 6
STMicroelectronics STM32VLDISCOVERY Reference Design 1
STMicroelectronics STM32VLDISCOVERY Reference Design 1
STMicroelectronics STM32VLDISCOVERY Reference Design 2
STMicroelectronics STM32VLDISCOVERY Reference Design 3
STMicroelectronics STM32VLDISCOVERY Reference Design 4
STMicroelectronics STM32VLDISCOVERY Reference Design 5
STMicroelectronics STM32VLDISCOVERY Reference Design 6

Applications:

Embedded System >

Microcontroller

End Products:

Consumer ElectronicsMotion Motor ControlScannersHVACAlarm Control PanelGaming and ToysIndustrial Programmable Logic Controllers (PLCs)PrintersGPS

ECAD Model:

Buy

Description

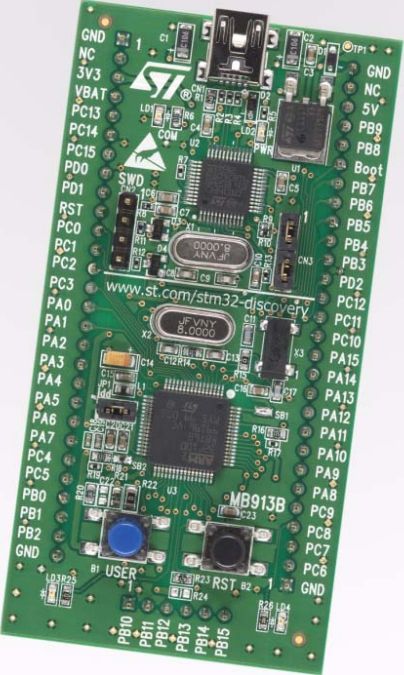

The STMicroelectronics STM32VLDISCOVERY-VLDISCOVERY is a Discovery kit for the STM32F100 Value Line microcontroller. It is a low-cost, low-power, and high-performance consumer electronics development platform. The kit includes an STM32F100RB microcontroller, a USB cable, a USB-to-serial converter, and a set of development tools. The STM32F100RB microcontroller is a 32-bit ARM Cortex-M3 processor with up to 128KB of Flash memory and up to 20KB of SRAM. It also features a wide range of peripherals, including a 12-bit ADC, a 10-bit DAC, and a variety of communication interfaces. The kit also includes a comprehensive set of development tools, including an integrated development environment (IDE), a debugger, and a simulator. The STM32VLDISCOVERY-VLDISCOVERY is an ideal platform for developing consumer electronics applications.

Specifications

STMicroelectronics technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics .
  • Type
    Parameter
  • Mounting Type
    Fixed
  • Series
    STM32F1
  • Part Status
    Active
  • Moisture Sensitivity Level (MSL)
    1 (Unlimited)
  • Type
    MCU 32-Bit
  • Operating Supply Voltage
    5V
  • Interface
    USB
  • Number of Bits
    32
  • Core Processor
    ARM® Cortex®-M3
  • Data Bus Width
    32b
  • Utilized IC / Part
    STM32F10x
  • Evaluation Kit
    Yes
  • Core Architecture
    ARM
  • Contents
    Board(s)
  • Board Type
    Evaluation Platform
  • Platform
    Discovery
  • REACH SVHC
    No SVHC
  • Radiation Hardening
    No
  • RoHS Status
    ROHS3 Compliant
  • Lead Free
    Lead Free
