What Makes Rocker Switches Unique

You will notice that rocker switches stand out because of their unique rocking action. When you press one side, the switch rocks into place, giving you a clear, tactile response. This design makes the rocker switch easy to use and reliable for controlling power. Many devices use rocker switches as the main on/off switch. Their popularity continues to rise as industries like automotive and consumer electronics demand reliable and easy-to-use controls.

• Market size in 2023: $2.5 billion

• Used in cars, homes, and industrial machines

• Simple design supports frequent use

Rocker Switch Features

Rocking Mechanism

You will notice that the main feature of rocker switches is their unique rocking action. When you press one side of the switch, it rocks back and forth like a seesaw. This movement happens because of a spring mechanism inside the switch. The spring and a small ball sit near the pivot point of the rocker paddle. The spring pushes the ball toward an opening, which helps the switch snap into place when you press it. This design gives you a clear and satisfying click every time you use the rocker switch.

Engineers have designed the spring-loaded support to allow smooth movement while keeping the switch stable. Limit-stop elements inside the switch restrict how far the paddle can move, so you do not accidentally push it too far. Some rocker switches even include overcompression elements that add extra resistance before the switch reaches its limit. This careful engineering makes the rocking mechanism both reliable and comfortable to use.

Scientific studies in other fields, like biology and engineering, show that rocking mechanisms work well for repeated use. For example, researchers have measured how rocking motions in machines and even proteins can repeat thousands of times without wearing out. This supports why rocker switches last so long, even when you use them every day.

Tactile and Visual Feedback

Rocker switches stand out because they give you both tactile and visual feedback. When you press the switch, you feel a distinct click or snap. This feedback comes from the spring and ball mechanism inside the switch. The force you feel helps you know that the switch has changed position, which makes it easier to use without looking.

You also get visual feedback from many rocker switches. Manufacturers often add built-in LEDs or illuminated markings to the switch. These lights show you if the switch is on or off at a glance. The table below shows some technical data about popular rocker switch series and their visual feedback features:

You will find that these features make rocker switches easy to use in dark or noisy environments. The use of strong materials like thermoplastics and metals, along with waterproof or splash-proof designs, ensures that the switches last a long time. Many rocker switches can handle at least 10,000 cycles, so you can trust them for frequent use.

Designers also focus on the feel and look of rocker switches. The shape, size, and texture of the switch affect how comfortable it is to use. Studies show that a well-designed rocker switch can make you feel more confident and reduce hand fatigue. Custom options like different colors, shapes, and LED lights help match the switch to your device, making it both functional and attractive.

Tip: When choosing a rocker switch, look for one with clear tactile and visual feedback. This will help you use your device safely and easily.

Latching and Multi-Position Options

Rocker switches often use a latching mechanism to stay in the position you select. When you press the switch, it snaps into place and stays there until you press it again. This latching action uses a snapping motion that quickly moves the contacts and locks them in either the open or closed position. Some rocker switches use SNAP-LOCK® technology, which makes the latching even more reliable.

You can also find rocker switches with multi-position options. These switches let you control more than just on and off. For example, a three-position rocker switch might let you choose between two different settings and an off position. The latching mechanism in these switches ensures that each position feels secure and does not slip out of place.

• The rocker-type limit switch pivots to shift and lock the latches, using a snapping motion to move contacts.

• SNAP-LOCK® technology ensures quick and reliable switching, locking the contacts in place.

• Good cam design is important for long-lasting performance.

• Heavy-duty rocker switches with SNAP-LOCK® work well even in tough industrial settings.

You will see that these features make rocker switches a great choice for many applications. The ability to customize the number of positions, the type of latching, and the look of the switch means you can find the perfect rocker switch for your needs. Many models offer options like single pole single throw (SPST), double pole double throw (DPDT), and even more complex configurations. You can also choose from waterproof ratings like IP65, IP66, or IP67, which protect the switch from dust and water.

Designers use these options to improve both usability and aesthetics. A rocker switch with a good latching mechanism feels solid and dependable. Customization options like LED lights, special markings, and different shapes make the switch easy to identify and use, even in challenging environments.

How Rocker Switches Work

Internal Structure

When you look inside a rocker switch, you find several important parts that help it work. The main parts include the actuator, a spring, movable contacts, and terminals. The actuator is the part you press with your finger. It rocks back and forth, which is why people call it a rocker switch.

A semi-elliptical spring sits under the actuator. This spring helps the switch snap into place when you press it. The spring also pushes a movable contact. When you press the actuator, the spring moves the contact to touch or separate from another contact. This action either connects or disconnects the circuit.

You also find sealing rubber inside many rocker switches. This rubber keeps out dust and moisture, which helps the switch last longer. The cover protects all the internal parts. The contacts and terminals carry the electrical current to your device.

Here is a table that shows the main parts and their functions:

You can see how each part works together to make the rocker switch reliable and easy to use. The design keeps the switch safe and helps it last through many cycles.

Electrical Operation

The working principle of rocker switches is simple but effective. When you press the actuator, you tilt the movable contact. This movement either closes or opens the circuit. If the contacts touch, electricity flows and your device turns on. If the contacts separate, the circuit breaks and your device turns off.

You can find different types of rocker switches based on how they control the circuit. The most common types include SPST, SPDT, DPST, and DPDT. Each type has a different number of terminals and controls the circuit in a unique way.

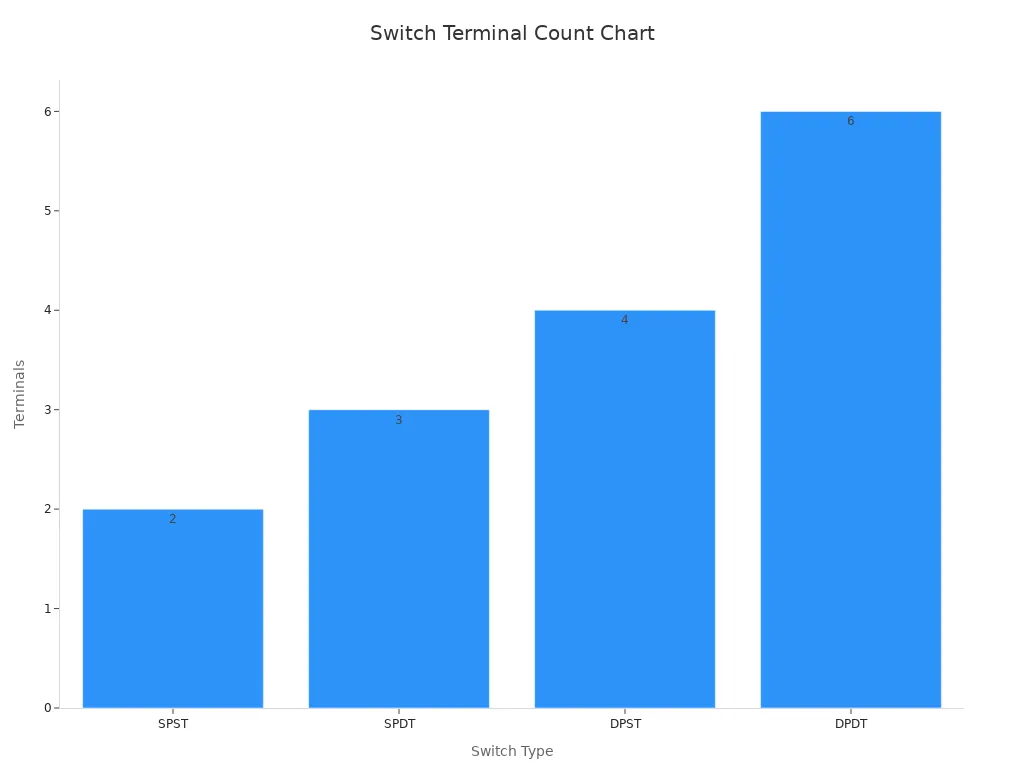

You can also see the difference in terminal counts in this chart:

Rocker switches use different actuation modes to control circuits:

• Momentary ON: The contacts only connect while you press the switch.

• Momentary OFF: The contacts only disconnect while you press the switch.

• Alternate ON/OFF: The first press turns the device on, and the next press turns it off.

• Three-position momentary center-NEUTRAL: The center position acts as a neutral or off state.

The working principle of these switches ensures that you can control power safely and easily. Circuit isolation keeps your devices safe from electrical interference. Positive opening contacts make sure the circuit stays open even if something goes wrong inside the switch. Maintained contact switches need a manual reset, so you always know when the circuit reconnects.

You can trust rocker switches to handle different electrical loads. Manufacturers test them for maximum current, voltage, and power ratings. Many rocker switches last for thousands of cycles, so you can use them in many applications like monitors, surge protectors, and power supplies.

Note: Always check the ratings and safety features before you choose a rocker switch for your project. This helps prevent misuse and keeps your devices safe.

Advantages and Disadvantages

Benefits of Rocker Switches

You will find that rocker switches offer many advantages in daily use. Their design makes them easy to operate, even if you wear gloves or have limited dexterity. The clear rocking motion gives you instant feedback, so you always know if the switch is on or off. Many people prefer rocker switches because they last a long time and can handle frequent use.

• Schütte and Eklund (2005) found that users value rocker switches for their robustness and precision. Their research showed that people like the solid feel and reliable action of these switches.

• The same study linked user preferences to real features, such as how stiff the switch feels and how well it fits into a device’s design.

• Automotive studies show that rocker switches meet the needs of drivers who want controls that are easy to find and use without looking away from the road.

You can see more benefits in the table below:

Tip: If you need a switch that works well in tough conditions, rocker switches are a smart choice.

Drawbacks to Consider

You should also think about some drawbacks before choosing a rocker switch. Some models may not fit well in very small spaces because they need room for the rocking action. If you need a switch for a device with limited panel space, you might need to look for a smaller type.

• Rocker switches can collect dust or moisture if not sealed properly. This can affect how well they work over time.

• Some designs may not offer as many positions as rotary or slide switches, which limits your control options.

• If you use a rocker switch in a high-vibration area, the switch might wear out faster unless you choose a heavy-duty model.

Note: Always check the size, sealing, and durability ratings before you install rocker switches in your project.

Rocker Switches vs. Other Switches

Toggle Switch Comparison

You may wonder how a rocker switch compares to a toggle switch. Both switches control electrical circuits, but they work in different ways. A toggle switch uses a lever that you flip up or down. You often see toggle switches in older electronics or on control panels. The lever sticks out, so you can grab it easily.

A rocker switch has a flat surface that rocks back and forth. You press one side to turn it on, and the other side to turn it off. This design keeps the switch low-profile. You can use a rocker switch even if you wear gloves. The flat shape also makes it less likely to catch on clothing or tools.

Here is a quick comparison:

Tip: If you want a switch that blends into your device and feels modern, choose a rocker switch.

Other Common Switch Types

You will find many other switches in electronics. A light switch is one of the most familiar types. It usually uses a large paddle or toggle to control room lights. Slide switches move a small knob along a track. Rotary switches turn in a circle to select different settings.

Some devices use a push-button switch. You press the button to make or break a connection. Each switch type has its own strengths. For example, a power switch often uses a rocker or toggle design for clear on/off control.

You can explore many rocker switch types for different needs. Some have waterproof seals. Others offer multiple positions or built-in lights. When you pick a switch, think about how you want to use it and what feels best in your hand.

You now know what makes rocker switches unique. Their rocking action gives you clear feedback and easy control. You can trust them for many uses because they last a long time and work well in tough places.

• Rocker switches feel natural to use and give you a solid click.

• You see them in cars, homes, and machines because they are reliable.

• Experts say they work best for simple on/off tasks.

If you want a switch that is easy to use and lasts, try a rocker switch for your next project.

FAQ

What makes rocker switches different from a regular light switch?

You will notice that rocker switches use a rocking motion instead of a flipping or sliding action. A light switch often uses a paddle or toggle. Rocker switches give you a clear on/off switch feel and work well in many devices.

How does the working principle of a rocker switch help in daily use?

You press one side of the rocker switch. The internal contacts connect or disconnect the circuit. This simple working principle lets you control power safely and quickly. You can trust this design for reliable on/off control.

Can I use a rocker switch as a power switch for my project?

Yes, you can use a rocker switch as a power switch. Many people choose rocker switches for this purpose. You get a clear indication of the on/off state. These switches handle different electrical loads and last for thousands of cycles.

What rocker switch types are available for different needs?

You can find many rocker switch types, such as SPST, SPDT, DPST, and DPDT. Each type controls circuits in a unique way. Some rocker switches have waterproof seals or built-in lights. You can pick the best type for your application.
