Reconfigurable Antennas: Improving Efficiency in Modern Communication
Next-generation wireless networks require an antenna that can perform multiple functions while offering adaptability and flexibility in operation. Conventional antennas are limited because they are usually made for specific uses and have set working parameters. Reconfigurable antennas can overcome these challenges.
In contrast to regular antennas, reconfigurable antennas can change their working conditions instantly to meet specific needs. A single programmable antenna can replace multiple single-function antennas. This makes the system compact, affordable, and easier to understand while improving performance.
What are reconfigurable antennas?
It is an antenna capable of dynamically modifying its frequency and radiation properties in a controlled and reversible manner. These antenna designs have the ability to transition between different states, changing properties including polarization, radiation pattern, and operating frequency. They are single-element antennae with internal reconfiguration mechanisms, which differs from smart antennas using external signal processing techniques.
Classification of Reconfigurable Antennas
Depending on the parameter that is altered, reconfigurable antennas are categorized as follows
● Frequency reconfiguration
● Radiation pattern reconfiguration
● Polarization reconfiguration
● Compound reconfiguration
Frequency Reconfiguration
They have the ability to modify their operating frequency dynamically. Frequency reconfiguration is accomplished by various methods, including electrical or mechanical. The electrical method is divided into discrete tuning (achieved by RF switches) and continuous tuning methods (achieved by varactor diode). The mechanical method physically alters the antenna's size or materials used.
These adaptive capabilities make these antennas particularly valuable in applications such as multi-band communication systems, cognitive radio networks, and integrated wireless devices where space constraints and system efficiency are primary considerations.
Radiation Pattern Reconfiguration
These antennas are based on the intentional modification of the spherical distribution of radiation patterns. The primary technique involved is beam steering (adjusting the direction of maximum radiation). They are designed using mechanical and electrical approaches.
The mechanical approach involves using movable/rotatable structures like metasurface (that can physically reorient to modify radiation characteristics) or alternate methods employing switchable reactive-loaded capacitive elements, which allow for electronic control of the radiation pattern without mechanical movement. The benefit of this design is maximized antenna gain.
Polarization Reconfiguration
These antennas have the ability to switch between various modes of polarization. Using frequency reuse technology, these antennas help double the communication capacity and prevent multipath fading. Antenna polarization can be divided into circular, elliptical, and linear. Linear vertical and linear horizontal polarization are two more classifications for linear polarization.
Compound Reconfiguration
This antenna allows simultaneous tuning of multiple parameters, such as frequency and radiation pattern, which operate through two distinct methodologies. First, it can integrate multiple single-parameter reconfiguration techniques within the same antenna structure. Second, it can employ dynamic pixel surface reshaping, where the antenna's surface geometry can be modified in real time to achieve desired performance characteristics. Combining frequency agility and beam scanning capability achieves enhanced spectral efficiency.
Reconfiguration Techniques
Reconfigurable antennas use a variety of techniques, as shown in Fig. 1, to achieve their tunability, which include
● Electrical
● Optical
● Mechanical
● Material

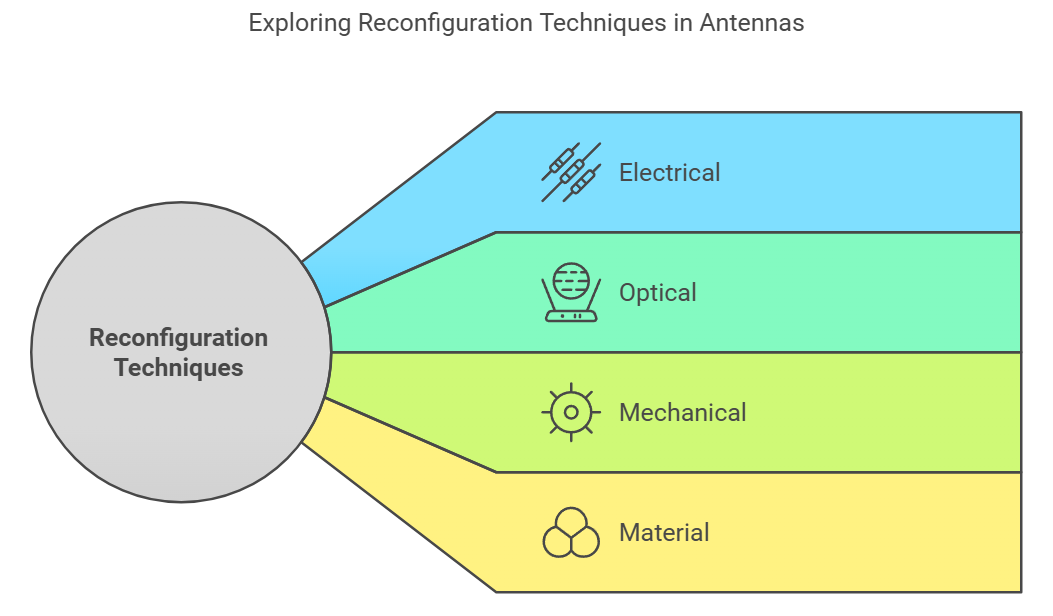

Fig. 1 Illustration of reconfiguration techniques Source: Rakesh Kumar, Ph.D.
Electrical
Electrical reconfiguration is a well-established and less complex approach in antenna design. The key advantages of electrical reconfiguration include low power consumption, space efficiency, cost-effectiveness, reliability, fast response, etc. The core of electrical reconfiguration relies on electronic components, primarily
● RF switches
● PIN diode
● Varactor diode
RF Switches:
RF switches control high-frequency signal flow by acting as electronic gates, routing, or blocking signals. They come in two types: semiconductor switches and MEMS switches. Semiconductor switches use PIN diodes and FETs, which have very fast switching but are limited by linearity and power consumption
MEMS switches use microscopic mechanical structures with better isolation and linearity, lower insertion loss, and power consumption. However, it has slower switching speeds and fabrication consistency issues.
PIN Diode:
PIN diodes act as voltage-controlled switches in antenna systems. Under forward bias, they conduct current freely, while reverse bias creates high resistance that blocks current. This switching behavior enables selective activation of antenna elements, allowing dynamic reconfiguration of the antenna's properties.
Varactor Diode:
Varactor diodes provide variable capacitance controlled by bias voltage. Adjusting this voltage allows the antenna's resonant frequency to be tuned continuously. While effective, they need high bias voltages (up to 20V) and have power handling limitations.
Optical
They use photoconductive switching elements instead of metallic wires or traditional biasing lines activated by laser lights. This technology has several advantages, including low loss, fast switching speed, decreased metallic interference, low power consumption, and reduced signal distortion.
This is achieved by optical gradient force, wavelength manipulation, photonic crystal nanostructure, etc. They have drawbacks, such as more complex implementation, higher costs, and larger system sizes. This technology relies heavily on precise control over laser activation, necessitating frequent calibration for best results and considering total power requirements, including those for the laser source.
Mechanical
This method involves structurally altering the radiating components of the antenna. This approach provides superior control capabilities. However, structural changes to antenna components raise the system's total size, cost, complexity, and power supply needs. It is also difficult to enable multi-function reconfigurable features.
Material
Smart materials like phase-change materials, graphene, liquid crystals, and ferrites enable dynamic property changes in reconfigurable antennas and provide dynamic modification of material properties in a controlled manner. They have a wide operational range, fast switching speed, and low power consumption.
Application
Applications using wireless communication could perform better with the use of reconfigurable antennas. Reconfigurable antennas have a wide range of applications in various fields, including
● Multi-standard wireless communication
● Satellite communication
● Biomedical applications
● Cognitive radio system
● Industrial application
● Military system
● MIMO systems
● Smartphones
● IoT system
Reconfigurable antennas significantly advance wireless communication technology, offering flexibility and performance across diverse communication scenarios.
Summarizing the Key Points
● Reconfigurable antennas can adjust their frequency, radiation patterns, and polarization dynamically, making them suitable for various wireless communication applications and enhancing system performance.
● Unlike conventional antennas, reconfigurable designs can replace multiple single-function antennas, reducing size, cost, and complexity while improving overall efficiency and adaptability.
● Various reconfiguration techniques are discussed, including electrical, optical, mechanical, and material methods, each offering distinct advantages and challenges in antenna design and implementation.
Reference
García, E., Andújar, A., & Anguera, J. (2024). Overview of Reconfigurable Antenna Systems for IoT Devices. Electronics, 13(20), 3988. https://doi.org/10.3390/electronics13203988
Parchin, N. O., Basherlou, H. J., Al-Yasir, Y. I. A., Abdulkhaleq, A. M., & Abd-Alhameed, R. A. (2020). Reconfigurable Antennas: Switching Techniques—A Survey. Electronics, 9(2), 336. https://doi.org/10.3390/electronics9020336
Suryapaga, V., & Khairnar, V. V. (2024b). Review on Multifunctional Pattern and Polarization Reconfigurable Antennas. IEEE Access, 12, 90218–90251. https://doi.org/10.1109/access.2024.3420426
