KBPC5010 is a 50A 1000V rectifier bridge. It is a single-phase silicon bridge rectifier with a reverse voltage of 50 to 1000V, 50.0A. This article mainly introduces package, pinout, datasheet and other detailed information about Comchip Technology KBPC5010.

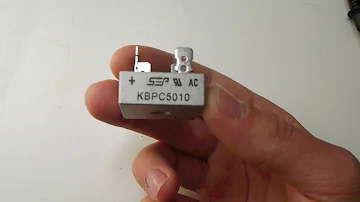

This video will show you the Bridge Rectifier KBPC5010.

HIGH AMP Brindge Rectifier 1000V 50A

KBPC5010 Description

KBPC5010 is a 50A 1000V rectifier bridge. It is a single-phase silicon bridge rectifier with a reverse voltage of 50 to 1000V, 50.0A. Its forward current is 10/15/25/35/50A, RoHS Device.



If it is only used the rectifier bridge to prevent reverse connection, it can be implemented in a DXI-50-1200 1200V, TO-237/TOP3 package. If the requirements are high, you can use EUPEC's DD89N as a replacement, which is a 140A 1200V tube.


KBPC5010 Pinout

The following figure is the Pinout of KBPC5010.


Pinout


KBPC5010 CAD Model

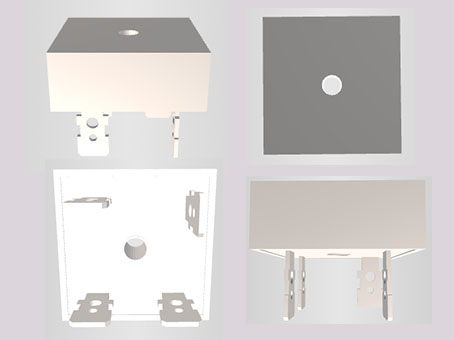

The following figure is the KBPC5010 3D Model.

3d model.jpg

3D Model


KBPC5010 Features

● Surge Overload -240~500 Amperes Peak.

● Low Forward Voltage Drop.

● Electrically Isolated Base -2000 Volts.

● Materials Used Carries UL Recognition.

● UL Recognized File # E349301


Specifications

Comchip Technology KBPC5010-G technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology KBPC5010-G.
  • Type
    Parameter
  • Factory Lead Time
    12 Weeks
  • Mount

    In electronic components, the term "Mount" typically refers to the method or process of physically attaching or fixing a component onto a circuit board or other electronic device. This can involve soldering, adhesive bonding, or other techniques to secure the component in place. The mounting process is crucial for ensuring proper electrical connections and mechanical stability within the electronic system. Different components may have specific mounting requirements based on their size, shape, and function, and manufacturers provide guidelines for proper mounting procedures to ensure optimal performance and reliability of the electronic device.

    Surface Mount
  • Mounting Type

    The "Mounting Type" in electronic components refers to the method used to attach or connect a component to a circuit board or other substrate, such as through-hole, surface-mount, or panel mount.

    QC Terminal
  • Package / Case

    refers to the protective housing that encases an electronic component, providing mechanical support, electrical connections, and thermal management.

    4-Square, KBPC
  • Diode Element Material

    The parameter "Diode Element Material" refers to the specific semiconductor material used in the construction of a diode. This material determines the electrical characteristics and performance of the diode, including its forward voltage drop, reverse breakdown voltage, and switching speed. Common diode element materials include silicon, germanium, and gallium arsenide, each offering different advantages for various applications. The choice of material impacts the diode's efficiency, thermal stability, and overall suitability for specific electronic circuits.

    SILICON
  • Number of Elements
    4
  • Operating Temperature

    The operating temperature is the range of ambient temperature within which a power supply, or any other electrical equipment, operate in. This ranges from a minimum operating temperature, to a peak or maximum operating temperature, outside which, the power supply may fail.

    -55°C~150°C TJ
  • Packaging

    Semiconductor package is a carrier / shell used to contain and cover one or more semiconductor components or integrated circuits. The material of the shell can be metal, plastic, glass or ceramic.

    Bulk
  • Published
    2003
  • Part Status

    Parts can have many statuses as they progress through the configuration, analysis, review, and approval stages.

    Active
  • Moisture Sensitivity Level (MSL)

    Moisture Sensitivity Level (MSL) is a standardized rating that indicates the susceptibility of electronic components, particularly semiconductors, to moisture-induced damage during storage and the soldering process, defining the allowable exposure time to ambient conditions before they require special handling or baking to prevent failures

    1 (Unlimited)
  • Number of Terminations
    4
  • ECCN Code

    An ECCN (Export Control Classification Number) is an alphanumeric code used by the U.S. Bureau of Industry and Security to identify and categorize electronic components and other dual-use items that may require an export license based on their technical characteristics and potential for military use.

    EAR99
  • Additional Feature

    Any Feature, including a modified Existing Feature, that is not an Existing Feature.

    UL RECOGNIZED
  • HTS Code

    HTS (Harmonized Tariff Schedule) codes are product classification codes between 8-1 digits. The first six digits are an HS code, and the countries of import assign the subsequent digits to provide additional classification. U.S. HTS codes are 1 digits and are administered by the U.S. International Trade Commission.

    8541.10.00.80
  • Terminal Position

    In electronic components, the term "Terminal Position" refers to the physical location of the connection points on the component where external electrical connections can be made. These connection points, known as terminals, are typically used to attach wires, leads, or other components to the main body of the electronic component. The terminal position is important for ensuring proper connectivity and functionality of the component within a circuit. It is often specified in technical datasheets or component specifications to help designers and engineers understand how to properly integrate the component into their circuit designs.

    UPPER
  • Terminal Form

    Occurring at or forming the end of a series, succession, or the like; closing; concluding.

    SOLDER LUG
  • Peak Reflow Temperature (Cel)

    Peak Reflow Temperature (Cel) is a parameter that specifies the maximum temperature at which an electronic component can be exposed during the reflow soldering process. Reflow soldering is a common method used to attach electronic components to a circuit board. The Peak Reflow Temperature is crucial because it ensures that the component is not damaged or degraded during the soldering process. Exceeding the specified Peak Reflow Temperature can lead to issues such as component failure, reduced performance, or even permanent damage to the component. It is important for manufacturers and assemblers to adhere to the recommended Peak Reflow Temperature to ensure the reliability and functionality of the electronic components.

    NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)

    Time@Peak Reflow Temperature-Max (s) refers to the maximum duration that an electronic component can be exposed to the peak reflow temperature during the soldering process, which is crucial for ensuring reliable solder joint formation without damaging the component.

    NOT SPECIFIED
  • JESD-30 Code

    JESD-30 Code refers to a standardized descriptive designation system established by JEDEC for semiconductor-device packages. This system provides a systematic method for generating designators that convey essential information about the package's physical characteristics, such as size and shape, which aids in component identification and selection. By using JESD-30 codes, manufacturers and engineers can ensure consistency and clarity in the specification of semiconductor packages across various applications and industries.

    R-XUFM-D4
  • Configuration

    The parameter "Configuration" in electronic components refers to the specific arrangement or setup of the components within a circuit or system. It encompasses how individual elements are interconnected and their physical layout. Configuration can affect the functionality, performance, and efficiency of the electronic system, and may influence factors such as signal flow, impedance, and power distribution. Understanding the configuration is essential for design, troubleshooting, and optimizing electronic devices.

    BRIDGE, 4 ELEMENTS
  • Diode Type

    In electronic components, the parameter "Diode Type" refers to the specific type or configuration of a diode, which is a semiconductor device that allows current to flow in one direction only. There are various types of diodes, each designed for specific applications and functions. Common diode types include rectifier diodes, zener diodes, light-emitting diodes (LEDs), and Schottky diodes, among others. The diode type determines the diode's characteristics, such as forward voltage drop, reverse breakdown voltage, and maximum current rating, making it crucial for selecting the right diode for a particular circuit or application. Understanding the diode type is essential for ensuring proper functionality and performance in electronic circuits.

    Single Phase
  • Current - Reverse Leakage @ Vr

    Current - Reverse Leakage @ Vr is a parameter that describes the amount of current that flows in the reverse direction through a diode or other semiconductor component when a reverse voltage (Vr) is applied across it. This leakage current is typically very small, but it is important to consider in electronic circuits as it can affect the overall performance and reliability of the component. The reverse leakage current is influenced by factors such as the material properties of the semiconductor, temperature, and the magnitude of the reverse voltage applied. Manufacturers provide this parameter in datasheets to help engineers and designers understand the behavior of the component in reverse bias conditions.

    5μA @ 1000V
  • Voltage - Forward (Vf) (Max) @ If

    The parameter "Voltage - Forward (Vf) (Max) @ If" refers to the maximum voltage drop across a diode when it is forward-biased and conducting a specified forward current (If). It indicates the maximum potential difference the diode can withstand while allowing current to flow in the forward direction without breaking down. This value is crucial for designing circuits as it helps determine how much voltage will be lost across the diode during operation. Higher Vf values can lead to reduced efficiency in power applications, making this parameter essential for optimizing circuit performance.

    1.1V @ 25A
  • Case Connection

    Case Connection refers to the method by which an electronic component's case or housing is connected to the electrical circuit. This connection is important for grounding purposes, mechanical stability, and heat dissipation. The case connection can vary depending on the type of component and its intended application. It is crucial to ensure a secure and reliable case connection to maintain the overall performance and safety of the electronic device.

    ISOLATED
  • Max Reverse Leakage Current

    Max Reverse Leakage Current refers to the maximum amount of current that can flow through a semiconductor device, such as a diode or transistor, when it is reverse biased. This current is an important parameter as it indicates the level of unintended current that can flow when the device is not conducting in the forward direction. High values of reverse leakage current can lead to power loss, reduced efficiency, and may affect the performance and reliability of electronic circuits. It is particularly critical in applications where precise current control and low power consumption are necessary.

    10μA
  • Max Surge Current

    Surge current is a peak non repetitive current. Maximum (peak or surge) forward current = IFSM or if(surge), the maximum peak amount of current the diode is able to conduct in forward bias mode.

    500A
  • Output Current-Max

    Output Current-Max is a parameter in electronic components that specifies the maximum amount of current that can be safely drawn from the output of the component without causing damage. It is an important specification to consider when designing circuits to ensure that the component can handle the required current without overheating or failing. Exceeding the maximum output current can lead to performance issues, component damage, or even complete failure of the circuit. It is crucial to adhere to the specified maximum output current to ensure the reliable operation of the electronic component and the overall circuit.

    50A
  • Current - Average Rectified (Io)

    The parameter "Current - Average Rectified (Io)" in electronic components refers to the average value of the rectified current flowing through the component. This parameter is important in determining the average power dissipation and thermal considerations of the component. It is typically specified in datasheets for diodes, rectifiers, and other components that handle alternating current (AC) and convert it to direct current (DC). Understanding the average rectified current helps in selecting the appropriate component for a given application to ensure reliable operation and prevent overheating.

    50A
  • Number of Phases
    1
  • Voltage - Peak Reverse (Max)

    Voltage - Peak Reverse (Max) refers to the maximum voltage that a semiconductor device, typically a diode, can withstand in the reverse-bias direction without undergoing breakdown. It is crucial for ensuring reliable operation in circuits where the direction of the voltage may change. Exceeding this parameter can result in permanent damage to the component, leading to failure in its intended function. This specification is particularly important in applications involving rectification or signal modulation.

    1kV
  • Breakdown Voltage-Min

    Breakdown Voltage-Min, also known as minimum breakdown voltage, is a crucial parameter in electronic components, especially in devices like diodes, transistors, and capacitors. It refers to the minimum voltage at which the component experiences a breakdown and allows a significant current to flow through it. This breakdown voltage is a critical threshold beyond which the component may get damaged or exhibit unexpected behavior. Manufacturers specify this parameter to ensure that the component operates within safe limits and to help designers select the appropriate components for their circuit requirements. It is essential to consider the Breakdown Voltage-Min when designing circuits to prevent overloading or damaging the components.

    1000V
  • Height
    10.77mm
  • Length
    28.3mm
  • Width
    28.3mm
  • RoHS Status

    RoHS means “Restriction of Certain Hazardous Substances” in the “Hazardous Substances Directive” in electrical and electronic equipment.

    ROHS3 Compliant
0 Similar Products Remaining

KBPC5010 Wiring Diagram

The following figure shows you the Wiring Diagram of KBPC5010.

WIRING DIAGRAM.png

Wiring Diagram


KBPC5010 Standard Packaging

Case TypeBULK PACK
  BOX
( pcs )
 CARTON
( pcs )
KBPC50500


KBPC5010 Marking Code

Marking Code.png

Part NumberKBPC10005-G
KBPC15005-G
KBPC25005-G
KBPC35005-G
KBPC50005-G
KBPC1001-G
KBPC1501-G
KBPC2501-G
KBPC3501-G
KBPC5001-G
KBPC1002-G
KBPC1502-G
KBPC2502-G
KBPC3502-G
KBPC5002-G
KBPC1004-G
KBPC1504-G
KBPC2504-G
KBPC3504-G
KBPC5004-G
KBPC1006-G
KBPC1506-G
KBPC2506-G
KBPC3506-G
KBPC5006-G
KBPC1008-G
KBPC1508-G
KBPC2508-G
KBPC3508-G
KBPC5008-G
KBPC1010-G
KBPC1510-G
KBPC2510-G
KBPC3510-G
KBPC5010-G
Marking codeKBPC10005
KBPC15005
KBPC25005
KBPC35005
KBPC50005
KBPC1001
KBPC1501
KBPC2501
KBPC3501
KBPC5001
KBPC1002
KBPC1502
KBPC2502
KBPC3502
KBPC5002
KBPC1004
KBPC1504
KBPC2504
KBPC3504
KBPC5004
KBPC1006
KBPC1506
KBPC2506
KBPC3506
KBPC5006
KBPC1008
KBPC1508
KBPC2508
KBPC3508
KBPC5008
KBPC1010
KBPC1510
KBPC2510
KBPC3510
KBPC5010


KBPC5010 Applications

● Mains Rectification

● Products in the Field of Power Circuit Rectification

● Switching Power Supplies

● Power Adapters

● LED Light Source Circuits

● Chargers

● Refrigerators

● Air Conditioners

● Household Appliances

● Small Appliances and Other Related Products

● Automotive Rectifiers

● Electromechanical Equipment


KBPC5010 Package

Next the Package of KBPC5010 will be shown to you.


Package


KBPC5010 Manufacturer

Comchip Technology Corporation is in a leading position in the design and manufacture of discrete SMD semiconductor systems. Comchip provides bridge rectifiers, fast and efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors with unique research and proprietary production skills.


For your application, we provide the correct diode. Comchip Technology was the first company to establish a RoHS-compliant DFN/flat chip package, using gold terminations to eliminate the potential of tin whiskers. SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 packages can be used in DFN packages. Comchip devices are suitable for many applications, including lighting, automotive, industrial, TFT-LCD, networking/telecommunications, mobile, consumer electronics, and high-reliability applications with zero tin whisker potential. The computer is equipped with a variety of computers.


Comchip has passed TS16949, ISO9001 and ISO14001 certifications to provide better quality and reliability. Comchip bridge corrector and TVS passed the UL safety equipment application test as an additional safety layer. Many Comchip diodes meet the AEC-Q101 automotive stress-test standard and are suitable for automotive and high-reliability applications.


Trend Analysis

Datasheet PDF

Download datasheets and manufacturer documentation for Comchip Technology KBPC5010-G.
Frequently Asked Questions

1.What is the difference between KBPC5010 and KBPC3510 rectifier bridge?

The difference is that the maximum current is different.
(1)The maximum current of KBPC5010 is 50A.
(2)The maximum current of KBPC3510 is 35A.
Generally, there are 3 numbers in the name of the rectifier bridge, the first number represents the rated current, A; the last two numbers represent the rated voltage (number*100), V.

2.How to distinguish between positive and negative poles and AC in bridge rectifier KBPC5010?

Generally, the diagonal line is positive when looking at the left side of the picture, and the diagonal line is negative. You can also use a multimeter to measure and judge.
The bridge rectifier uses four diodes to be connected in pairs. When the positive half of the input sine wave is turned on, the two tubes are turned on, and the positive output is obtained; when the negative half of the sine wave is input, the other two tubes are turned on. Since the two tubes are reversely connected, the output is still positive of the sine wave. Half part. The utilization efficiency of the input sine wave by the bridge rectifier is twice as high as that of the half-wave rectifier.

3.What is the size of KBPC5010 rectifier bridge one bigger than it?

KBPC5010 is a single-phase rectifier bridge with a 50A reverse repetitive peak voltage of 1000V, and 50A is the largest in this series.
You can consider using QL60A 1000V /QL60-10, QL80A 1000V /QL80-10, QL100A 1000V /QL100-10.
QL series single-phase rectifier bridges have QL10A, 15A, 25A, 35A, 40A, 50A, 60A, 80A, 100A, 150A, 200A, with a withstand voltage of 100~1600V.

4. What is KBPC5010?

50A 1000V rectifier bridge.

5. What is the reverse voltage of KBPC5010?

50.0A

6. What is EUPECs DD89N?

140A 1200V tube.
