Buffer Amplifier | Operating Principle, Advantages, and Applications

When two circuits are connected, there are chances of signal loss/distortion due to the mismatch in the impedances of both circuits. Similarly, there are also chances of loading effects due to different voltage levels or when one circuit draws too much current from the other. To tackle these situations, the buffer amplifier comes into action.

A buffer amplifier is one of the essential components in the world of electronics today, especially in signal-processing applications. This guide will talk in detail about the buffer amplifier to clarify all your concepts around its working principle and applications.

What is a Buffer Amplifier?

Buffer amplifier, or simply buffer, provides electrical impedance transformation from one circuit to another. Its purpose is to prevent the signal source from getting affected by the current or voltage the load may impose. It helps to maintain the signal integrity when the signal is transferred from one circuit to another.

In simple words, the buffer amplifier is a small signal processing circuit that prevents power loss and signal distortion, which can occur if a high-impedance signal source is directly connected to a low-impedance load. So, when a buffer ensures impedance match, it leads to maximum power transfer and high maintainability of the original waveform.

There are two main types of buffer amplifiers, as follows:

1. Voltage Buffer Amplifier

A voltage buffer amplifier is a type of buffer that transfers voltage from one circuit with a high output impedance to the second circuit with a low input impedance. When there is a buffer amplifier between the two circuits, it ensures that the second circuit does not excessively overload the first circuit and impact its operation.

If the voltage buffer is not used, the output impedance of the first circuit will interfere with the voltage of the second circuit. However, once a voltage buffer is used, it can take the input signal without loading the source circuit significantly and deliver it to the target circuit without a prominent voltage drop. This way, it is best to maintain signal integrity and prevent the loading effect. An ideal voltage buffer has zero output impedance and infinite input impedance.

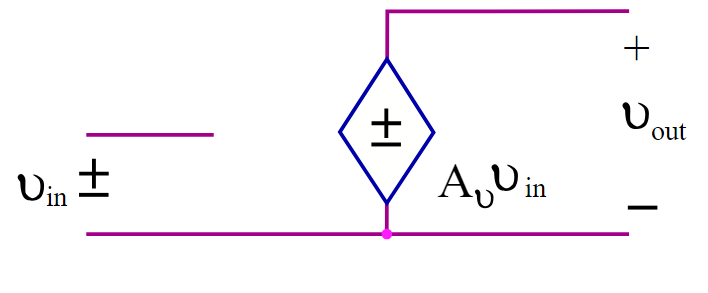

1.Voltage Buffer Amplifier

2. Current Buffer Amplifier

A current buffer amplifier is a type of buffer that transfers current from one circuit with a low output impedance to the second circuit with a high input impedance. It ensures that the second circuit does not excessively overload the current of the first circuit and impact its operation.

A current buffer amplifier is used in those electronic circuits where the current has more importance than the voltage. It ensures stable current flow across circuits and reduces current-related loading effects. An ideal current buffer has zero input impedance (acts as a short circuit) and infinite output impedance (acts as an ideal current source).

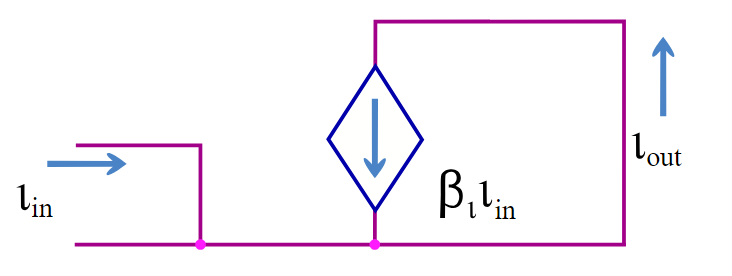

2.Current Buffer Amplifier

The Operating Principle of Buffer Amplifier

The operating principle of the buffer amplifier is all about impedance transformation. When the source circuit has high impedance, it produces low current. So, it is more vulnerable to current-related distortions when connected to a load circuit with low impedance. However, a buffer amplifier minimizes the current drawn due to its high input impedance. At the same time, it allows high current flow to the load due to low output impedance. This way, it maintains the signal integrity.

When it comes to the design of the buffer amplifier, the "unity-gain voltage buffer" is commonly used. It involves an operational amplifier (op-amp) as the core component. The op-amp is a high-gain differential amplifier with two inputs (inverting and non-inverting) and a single output.

The Operating Principle of Buffer Amplifier

The inverting input terminal is commonly grounded, while the non-inverting input terminal is fed with input voltage. With the high open-loop gain, the op-amp makes its output to a voltage that eradicates voltage difference with its inputs. This way, it equalizes the output voltage with the input voltage, i.e., unity gain or amplification of 1.

Advantages of Buffer Amplifier

The buffer amplifier is a valuable component of signal-processing circuits due to its wide range of advantages. Some of the main advantages it offers include the following:

1. Impedance Matching

One of the main advantages of the buffer amplifier is impedance matching between circuits. Its high input impedance and low output impedance ensure that signals are transferred efficiently, no matter the varying impedance levels of circuits.

2. Prevent Signal Distortion

Signal distortion can occur when the two circuits have differences in impedance. The buffer amplifier acts as a bridge between them and prevents the loading effect. This eradicates the signal distortion concerns.

3. Ensure Signal Isolation and Integrity

The buffer amplifier is an excellent way to isolate input and output circuits. When you connect components with altering input and output impedances, the signal isolation with a buffer ensures that every component operates independently. This is very useful in maintaining the signal integrity.

4. Maximum Power Transfer

As mentioned above, the high input impedance and low output impedance of the buffer amplifier are useful to prevent signal distortion and ensure signal integrity. When this happens, it maximizes the power transfer.

Applications of Buffer Amplifier

Buffer amplifiers are used in many IoT and electronic equipment, as follows:

· Audio Systems: Buffer amplifiers are used in audio systems for high-quality audio outputs. They match the impedance between the source (microphones or musical instruments) and the speaker/recording equipment. This minimizes audio loss and alterations to the audio signal.

· Voltage Regulation: Buffer amplifiers are used in voltage regulation circuits to ensure regulated and stable output voltage that follows the input voltage.

· Radio Frequency (RF) Circuits: Buffer amplifiers help to isolate RF chain stages to avoid distortions.

· Sensors: Buffer amplifiers are used in different sensors, like temperature or pressure sensors, to convert the high-impedance sensor output into a low-impedance signal and easily transmit it without distortion.

· Data Acquisition Systems: Buffer amplifiers are used in data acquisition systems as intermediaries between the data source and the measurement device. This helps to get accurate readings without getting any kind of interaction between the source and the device.

In short, buffer amplifiers have a wide range of applications, especially in circuits that need to avoid signal distortion and maximize power transfer.

Wrapping Up

A buffer amplifier is a small circuit with an impactful role in electronic signal processing. Its high input impedance and low output impedance make it best to ensure impedance match, signal integrity, reduced signal distortion, and maximum power transfer. That's why it has become an essential component in most electronic equipment that involves signal processing.
