Ohmic Resistors: Differences, Laws, and Applications

Have you ever wondered about the fundamental components that make our electronic devices tick? In the vast and fascinating world of electronics, resistors are ubiquitous, playing a crucial role in controlling current flow and voltage levels. But not all resistors are created equal. Today, we're diving deep into the world of the ohmic resistor, a cornerstone of countless circuits. Understanding the distinction between ohmic and non-ohmic resistors is not just academic; it's essential for anyone, from hobbyists to seasoned engineers, looking to design or troubleshoot electronic systems effectively. This article will guide you through their definitions, characteristics, the pivotal role of Ohm's Law, and their diverse applications, ensuring you gain a comprehensive understanding of these vital components.

2.1 Definition and Characteristics

At its core, an ohmic resistor is a type of electrical component that strictly adheres to Ohm's Law. What does this mean in practical terms? It means that the current flowing through the resistor is directly proportional to the voltage applied across it, provided its physical conditions, especially temperature, remain constant. This linear relationship is the defining characteristic of an ohmic resistor. Imagine a garden hose: if you increase the water pressure (voltage), the flow of water (current) increases proportionally, assuming the hose itself doesn't change in any way. That's the essence of ohmic behavior.

Unlike some other electronic components, the resistance of an ohmic resistor remains constant regardless of the voltage applied or the current flowing through it. This predictability makes them incredibly valuable in circuit design. Common examples of materials that exhibit ohmic behavior include most metallic conductors like copper, aluminum, and silver. These materials have a stable internal structure where electron flow is relatively unimpeded and consistent under varying electrical conditions.

Pro Tip: Always remember that the linearity of the current-voltage relationship is the hallmark of an ohmic resistor. Any deviation suggests non-ohmic behavior.

2.2 Graphical Analysis

The most straightforward way to identify an ohmic resistor is through its current-voltage (I-V) graph. When you plot the current (I) on the y-axis against the voltage (V) on the x-axis for an ohmic resistor, you will always get a straight line passing through the origin. The slope of this line is equal to the reciprocal of the resistance (1/R). This graphical representation visually confirms the constant resistance and linear relationship that defines ohmic behavior. For instance, if you double the voltage across an ohmic resistor, the current through it will also double, maintaining the same slope on the I-V graph.

Figure 2.1: Typical I-V graph of an Ohmic Resistor showing a linear relationship. Source: Electronics and Physics Teaching

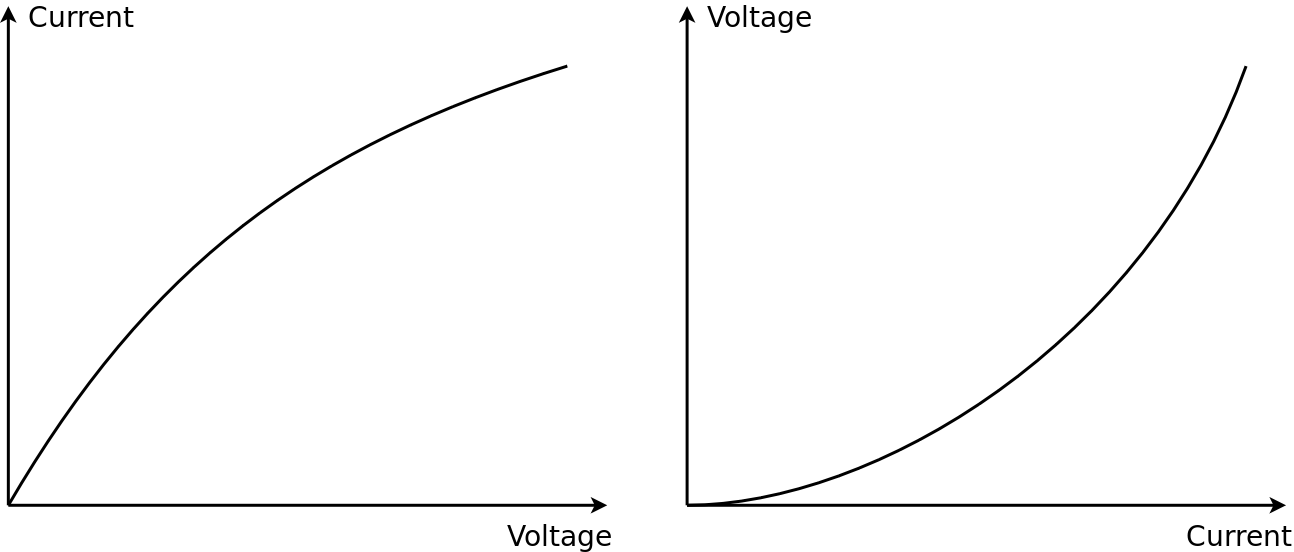

This linearity is crucial for predictable circuit behavior. In contrast, a non-ohmic device would produce a curved line on an I-V graph, indicating that its resistance changes with varying voltage or current. This visual distinction is a powerful tool for engineers and students alike to quickly assess the nature of a component.

3.0 Ohmic vs. Non-Ohmic Resistors

3.1 Direct Comparison

The fundamental difference between ohmic and non-ohmic resistors lies in their adherence to Ohm's Law. As we've discussed, ohmic resistors maintain a constant resistance regardless of the applied voltage or current, resulting in a linear current-voltage relationship. Non-ohmic resistors, on the other hand, do not follow Ohm's Law. Their resistance changes with variations in voltage, current, or even temperature, leading to a non-linear I-V characteristic. This distinction is paramount in electronics, as it dictates how these components behave within a circuit.

Consider the implications: with an ohmic resistor, you can precisely predict the current flow if you know the voltage and resistance, or vice-versa. This predictability simplifies circuit design and analysis significantly. For non-ohmic devices, the relationship is more complex, often requiring more advanced mathematical models or empirical data to understand their behavior. This makes them suitable for specialized applications where a variable resistance is desired, but also introduces challenges in circuit design.

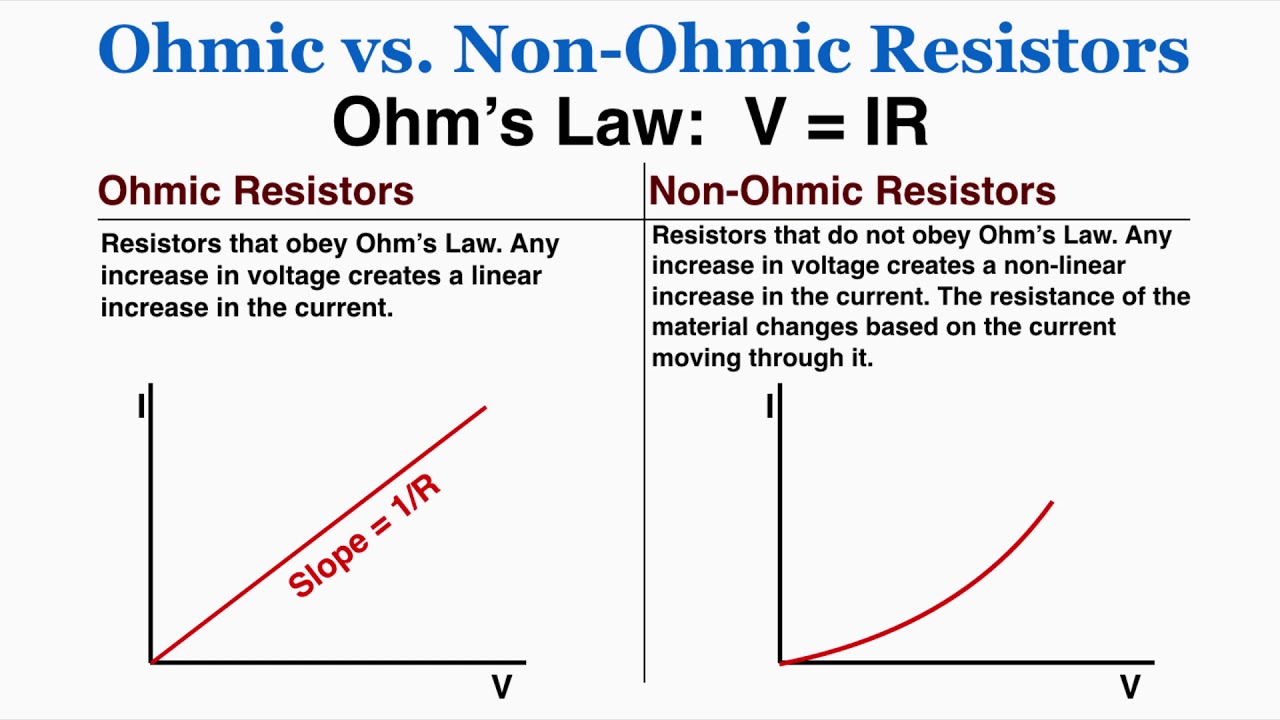

Figure 3.1: Comparison of I-V graphs for Ohmic and Non-Ohmic Resistors. Source: IB Physics - Andy Masley

3.2 Physical Examples

Understanding the theoretical differences is one thing, but what do these resistors look like in the real world? Ohmic resistors are typically found in common electronic components like fixed resistors, which are designed to provide a specific, constant resistance. These are the workhorses of most circuits, used for voltage division, current limiting, and other fundamental tasks. Examples include carbon film resistors, metal film resistors, and wirewound resistors, especially when operated within their specified power and temperature limits.

On the other hand, non-ohmic resistors are often components whose primary function relies on their variable resistance. Diodes, for instance, allow current to flow in one direction but block it in the other, and their resistance changes dramatically depending on the applied voltage. Thermistors, whose resistance changes significantly with temperature, are another excellent example. Light-dependent resistors (LDRs), which vary their resistance based on the intensity of light, and even the filament of an incandescent light bulb (whose resistance increases as it heats up) are all classic examples of non-ohmic devices. These components are invaluable for sensing, switching, and rectification applications.

3.3 Reasons for Non-Ohmic Behavior

Why do some materials and components exhibit non-ohmic behavior? The reasons are rooted in their fundamental physical properties and how they respond to electrical stimuli. One primary factor is temperature dependence. While we assume constant temperature for ohmic resistors, in many real-world scenarios, current flow generates heat (Joule heating). In materials like the filament of an incandescent bulb, this heat significantly increases the material's resistance, leading to a non-linear I-V curve. As current increases, the filament gets hotter, its resistance rises, and the current doesn't increase proportionally with voltage.

Another reason is the material's internal structure and doping. Semiconductors, for example, are inherently non-ohmic. Their conductivity can be drastically altered by small changes in voltage or temperature due to the behavior of charge carriers (electrons and holes) within their crystal lattice. Diodes and transistors leverage these non-linear properties to perform their functions, such as rectification or amplification. The way charge carriers are scattered or their concentration changes with applied voltage contributes to the variable resistance observed in non-ohmic devices. Understanding these underlying physical mechanisms is key to designing and utilizing these components effectively in complex circuits.

Important Note: The assumption of constant temperature is critical for a resistor to behave ohmically. In high-power applications, even typically ohmic resistors can exhibit non-ohmic behavior due to self-heating.

4.0 Ohm’s Law and Ohmic Resistors

4.1 Explanation of Ohm’s Law

At the heart of understanding ohmic resistors lies Ohm’s Law, a fundamental principle in electrical engineering. Formulated by German physicist Georg Simon Ohm, this law states that the electric current through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them. Mathematically, it is expressed as: V = I × R, where:

• V is the voltage (potential difference) measured in Volts (V).

• I is the current measured in Amperes (A).

• R is the resistance measured in Ohms (Ω).

This simple yet profound equation allows us to calculate any one of these three quantities if the other two are known. For instance, if you have a 12-volt battery and a 4-ohm resistor, you can easily determine that the current flowing through the circuit will be 3 amperes (I = V/R = 12V / 4Ω = 3A). Ohm’s Law is the bedrock upon which much of circuit analysis and design is built, providing a clear and predictable relationship between these key electrical parameters.

Video 4.1: Ohm's Law Explained. This video provides a clear explanation of Ohm's Law and its components. Source: YouTube - The Engineering Mindset

4.2 Real-World Examples

Ohm’s Law isn’t just a theoretical concept; it’s applied daily in countless real-world scenarios. Think about a simple LED circuit. LEDs (Light Emitting Diodes) are sensitive to current, and too much current can burn them out. To protect the LED and ensure it operates at its optimal brightness, a current-limiting resistor is always placed in series with it. By using Ohm’s Law, engineers can calculate the precise resistance needed to drop the excess voltage and limit the current to a safe level for the LED. This is a classic example of how ohmic resistors, governed by Ohm’s Law, are used to control current flow in practical applications.

Another common application is in voltage dividers. Imagine you have a 9V battery, but you need a 3V supply for a small sensor. You can use two ohmic resistors in series to create a voltage divider. By carefully selecting the resistance values based on Ohm’s Law, you can tap into the circuit at a point where the voltage has dropped to the desired 3V. This technique is widely used in various electronic circuits to provide specific voltage levels from a single power source. These examples highlight the practical utility and predictability that Ohm’s Law brings to the design and analysis of circuits containing ohmic components.

Pro Tip: When designing circuits, always consider the power rating of your resistors. While Ohm's Law helps calculate current and voltage, the power dissipated (P = V × I = I² × R = V²/R) can cause a resistor to overheat if its power rating is insufficient.

4.3 Application to Ohmic and Non-Ohmic Resistors

While Ohm’s Law is fundamental, it’s crucial to remember that it only strictly applies to ohmic resistors. For these components, the resistance (R) is considered constant, making the relationship between voltage and current linear. This allows for straightforward calculations and predictable circuit behavior. When you see a resistor symbol in a circuit diagram, it generally represents an ohmic resistor, implying that Ohm’s Law can be directly applied to it.

However, for non-ohmic resistors, Ohm’s Law, in its simple V=IR form, does not hold true because their resistance is not constant. For example, in a diode, the current-voltage relationship is exponential, not linear. While you can still define an instantaneous or dynamic resistance (dV/dI) at any given point on its I-V curve, it’s not a fixed value like that of an ohmic resistor. This is why understanding the distinction is so vital: applying Ohm’s Law blindly to a non-ohmic device will lead to incorrect predictions and potentially flawed circuit designs. Instead, non-ohmic devices require more complex models or characteristic curves to describe their behavior accurately. This nuanced understanding is what separates a novice from a seasoned electronics enthusiast.

Video 4.2: Ohmic vs. Non Ohmic Resistors. This video further elaborates on the differences between ohmic and non-ohmic resistors. Source: YouTube - IB Physics - Andy Masley

5.0 Applications of Ohmic Resistors

5.1 Uses in Electronic Circuits

Ohmic resistors are the unsung heroes of virtually every electronic circuit. Their predictable and constant resistance makes them indispensable for a wide array of functions. One of their most common uses is current limiting. In many circuits, certain components, like LEDs or sensitive integrated circuits, can be damaged by excessive current. By placing an ohmic resistor in series with these components, the current flowing through them can be precisely controlled according to Ohm’s Law. This ensures the longevity and proper operation of the entire circuit.

Another critical application is in voltage division. Resistors can be arranged in series to create a voltage divider network, allowing a portion of the input voltage to be tapped off at a lower, desired level. This is incredibly useful for biasing transistors, setting reference voltages for analog-to-digital converters, or simply providing different voltage levels from a single power supply. Furthermore, ohmic resistors are integral to RC (Resistor-Capacitor) circuits, which are fundamental for timing, filtering, and oscillation applications. The time constant of an RC circuit, which dictates how quickly a capacitor charges or discharges, is directly proportional to the resistance, highlighting the resistor’s role in controlling dynamic circuit behavior.

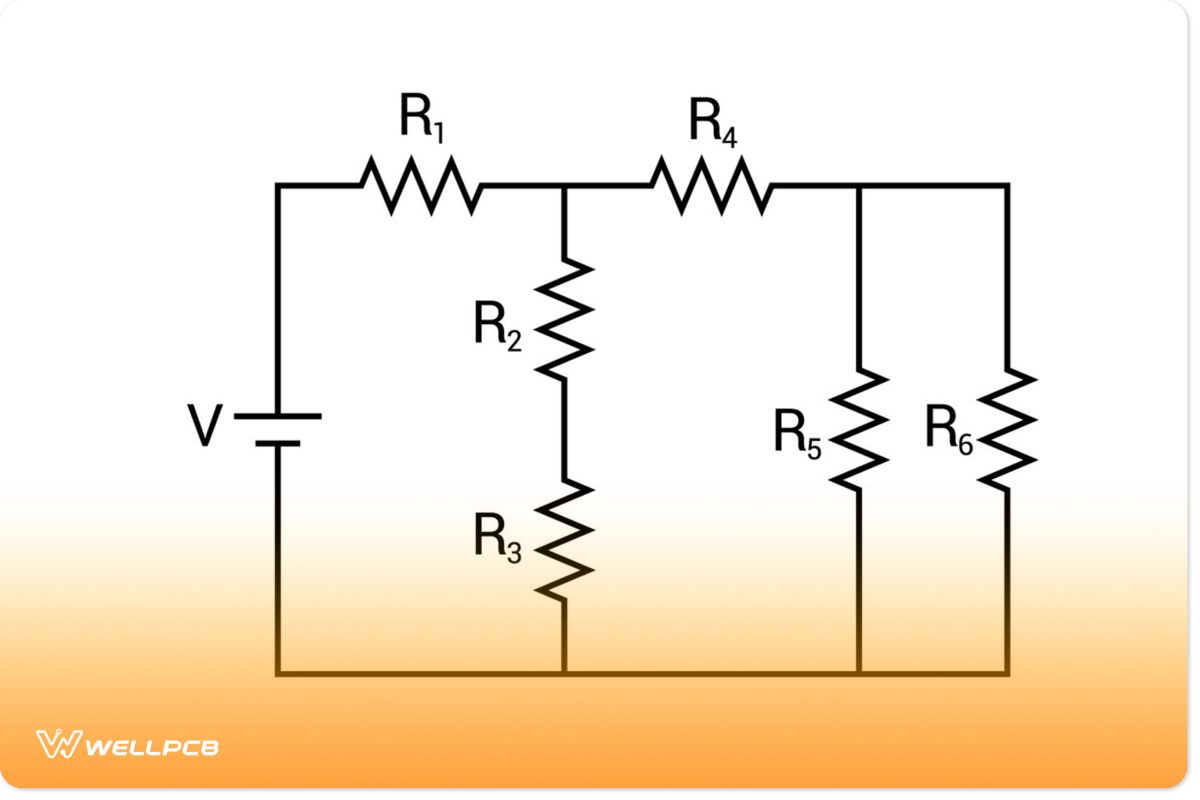

Figure 5.1: An example of a complex resistor circuit diagram. Source: WellPCB

5.2 Specific Applications

Beyond their general uses, ohmic resistors find specific applications across various electronic domains. In audio equipment, they are used to set gain levels in amplifiers, control volume, and create frequency filters to shape the sound. In power supplies, they are employed as bleeder resistors to safely discharge capacitors after power is removed, preventing electric shock hazards. They also serve as pull-up and pull-down resistors in digital circuits, ensuring that logic gates have a defined state (high or low) when inputs are floating, thus preventing erratic behavior.

In sensor interfaces, ohmic resistors are often paired with variable sensors (like thermistors or photoresistors, which are themselves non-ohmic) to form voltage dividers. This allows the changing resistance of the sensor to be converted into a measurable voltage signal, which can then be processed by microcontrollers or analog-to-digital converters. For example, a simple light sensor circuit might use an LDR and an ohmic resistor to create a voltage that varies with light intensity. This versatility makes ohmic resistors fundamental building blocks for countless electronic systems, from simple consumer gadgets to complex industrial control systems.

Important Note: While ohmic resistors are highly versatile, their primary limitation is their fixed resistance. For applications requiring variable resistance, non-ohmic components or variable resistors (like potentiometers, which are essentially variable ohmic resistors) are used.

5.3 Advantages and Disadvantages

The primary advantage of ohmic resistors lies in their simplicity and predictability. Their constant resistance, governed by Ohm’s Law, makes them incredibly easy to integrate into circuit designs. Engineers can rely on their consistent behavior, simplifying calculations and ensuring stable circuit operation. They are also relatively inexpensive to manufacture and widely available in a vast range of resistance values and power ratings. This makes them a cost-effective and reliable choice for most general-purpose electronic applications. Their linear I-V characteristic also means they introduce minimal distortion in analog signals, which is crucial for applications like audio amplification.

However, ohmic resistors also have certain disadvantages. Their fixed resistance means they cannot adapt to changing circuit conditions or provide sensing capabilities on their own. For applications requiring variable resistance, such as volume control or temperature sensing, additional components (like potentiometers or thermistors) are necessary. Furthermore, all resistors dissipate power as heat (P = I²R). In high-current applications, this heat can become significant, leading to energy loss and potentially requiring heat sinks to prevent component damage. While their resistance is generally stable, extreme temperature variations can still cause slight deviations from their ideal ohmic behavior, as we will discuss further in Section 7.

6.0 Case Studies and Examples

6.1 Simple Experiments to Test Ohmic Behavior

Want to see ohmic behavior in action? You can easily conduct a simple experiment to test if a component is ohmic. All you need is a variable DC power supply, an ammeter, a voltmeter, and the resistor you wish to test. Connect the resistor in series with the ammeter to measure current, and connect the voltmeter in parallel across the resistor to measure voltage. Begin by setting the power supply to a low voltage and record the corresponding current and voltage readings. Gradually increase the voltage in small increments, recording the current and voltage at each step.

Once you have a series of data points, plot the current (y-axis) against the voltage (x-axis). If the component is an ohmic resistor, your graph will show a straight line passing through the origin. The slope of this line will represent the reciprocal of the resistance (1/R). If the graph is curved, or if it doesn't pass through the origin, then the component is non-ohmic. This hands-on approach provides a clear, visual demonstration of Ohm's Law and the characteristics of ohmic components. It's a foundational experiment for anyone studying basic electronics.

6.2 Analysis of Resistor Graphs to Distinguish Ohmic from Non-Ohmic Types

As we touched upon earlier, the I-V graph is your best friend when it comes to distinguishing between ohmic and non-ohmic components. For an ohmic resistor, the graph is a perfectly straight line, signifying that the resistance (V/I) remains constant. This means that for every unit increase in voltage, there is a proportional unit increase in current. It’s like a perfectly balanced seesaw; as one side goes up, the other goes up by the same amount.

In stark contrast, the I-V graph for a non-ohmic resistor will be curved. Take a filament lamp, for example. As the voltage across it increases, the filament heats up, causing its resistance to increase. This means that for the same increase in voltage, the increase in current becomes progressively smaller, resulting in a curve that bends towards the voltage axis. Similarly, a diode’s I-V graph shows a very low resistance (steep slope) when forward-biased above a certain threshold, and extremely high resistance (flat slope) when reverse-biased. These distinct graphical signatures are not just theoretical; they are practical tools used by engineers to understand and predict component behavior in complex circuits. Learning to interpret these graphs is a crucial skill for anyone working with electronics.

7.0 Further Considerations

7.1 Temperature Effects

While we often discuss ohmic resistors as having a constant resistance, it’s important to acknowledge that in reality, temperature can have a subtle yet significant effect on their behavior. Most metallic conductors, which form the basis of ohmic resistors, exhibit a positive temperature coefficient of resistance. This means that as their temperature increases, their resistance also tends to increase. This phenomenon occurs because higher temperatures cause the atoms within the material to vibrate more vigorously, leading to more frequent collisions with the flowing electrons. These increased collisions impede the flow of charge, thus increasing resistance.

For many standard applications, this temperature dependence is negligible, especially when resistors operate within their specified temperature ranges. However, in precision circuits or high-power applications where significant heat is generated, this effect becomes crucial. Engineers must account for these changes to ensure circuit stability and accuracy. For instance, a resistor used in a sensitive measurement device might need to be housed in a temperature-controlled environment or be made from materials specifically designed to have a very low temperature coefficient of resistance. Understanding this nuance is key to moving beyond theoretical ideals to practical circuit design.

7.2 Material Choices and Performance Impacts

The choice of material is paramount in determining a resistor’s characteristics and performance. For ohmic resistors, common materials include carbon composition, metal film, and wirewound. Each offers a unique set of properties that make them suitable for different applications.

• Carbon Composition Resistors: These are among the oldest types, made from a mixture of carbon powder and a binder. They are inexpensive and can withstand high energy pulses, but have relatively poor tolerance and high temperature coefficients.

• Metal Film Resistors: These are made by depositing a thin film of metal (like Nichrome or tantalum nitride) onto a ceramic substrate. They offer much better precision, lower noise, and better temperature stability compared to carbon composition resistors, making them popular for general-purpose and precision applications.

• Wirewound Resistors: Constructed by winding a resistive wire (often Nichrome) around a non-conductive core, these resistors are known for their high power handling capabilities and excellent stability. They are often used in high-power applications or where very low resistance values are required.

The material choice directly impacts parameters such as resistance tolerance, temperature coefficient of resistance (TCR), noise characteristics, and power dissipation capabilities. For instance, a metal film resistor with a low TCR will maintain its resistance more consistently across varying temperatures than a carbon composition resistor. Similarly, a wirewound resistor can dissipate much more heat than a small surface-mount metal film resistor. Understanding these material-specific performance impacts is crucial for selecting the right resistor for a given circuit design, ensuring both functionality and reliability.

7.3 Identifying Ohmic Resistors in Practice

In a practical setting, how do you identify an ohmic resistor? The simplest way is to look for standard fixed resistors. These components are designed to be ohmic within their operational limits. You can often identify them by their color bands (for through-hole components) or markings (for surface-mount devices), which indicate their resistance value and tolerance. If you’re working with an unknown component, the most reliable method is to perform the I-V characteristic test we discussed in Section 6.1. By plotting the current against voltage, you can visually confirm if the relationship is linear and passes through the origin.

Another practical consideration is the component’s datasheet. Manufacturers provide detailed specifications for their resistors, including their nominal resistance, tolerance, power rating, and temperature coefficient. These datasheets will implicitly confirm whether the component is designed to behave ohmically under normal operating conditions. For instance, if a component’s resistance is specified as a fixed value with a certain tolerance, it’s intended to be ohmic. Conversely, if the datasheet shows a complex I-V curve or explicitly states that its resistance varies with voltage, current, or other parameters, then it’s a non-ohmic device. Always consult the datasheet for critical applications to ensure the component meets your design requirements.

Pro Tip: When troubleshooting a circuit, if a component that should be ohmic is behaving non-ohmically (e.g., its resistance changes unexpectedly), it might indicate a fault, such as overheating or damage.

8.0 Conclusion

In conclusion, the ohmic resistor stands as a fundamental and indispensable component in the vast landscape of electronics. We’ve explored its definition as a device that faithfully obeys Ohm’s Law, exhibiting a constant resistance and a linear current-voltage relationship. This predictability is what sets it apart from its non-ohmic counterparts, whose resistance varies with changing conditions. Understanding these distinctions is not merely an academic exercise; it’s crucial for anyone involved in circuit design, analysis, or troubleshooting. From current limiting in sensitive circuits to voltage division in complex systems, ohmic resistors provide the stability and control necessary for reliable electronic operation.

While temperature and material choices can influence their performance, the core principle of constant resistance under ideal conditions remains. As electronics continue to evolve, the foundational principles governed by ohmic resistors will remain relevant, even as new materials and technologies emerge. The ability to recognize, utilize, and differentiate between ohmic and non-ohmic components will always be a valuable skill. So, whether you’re a budding enthusiast or a seasoned professional, embrace the power of Ohm’s Law and the predictable nature of ohmic resistors. Ready to apply your newfound knowledge? Dive into your next electronics project with confidence, and remember that precision starts with understanding the basics. Explore more about electronic components and circuit design on Utmel.com to further enhance your expertise!

Have you ever found yourself puzzled by why some electronic components behave differently under varying conditions? Understanding ohmic and non-ohmic resistors is key to unlocking this mystery.

User Experience Story: The Case of the Flickering LED

Sarah, a budding electronics enthusiast, was excited to build her first LED circuit. She connected an LED directly to a battery, expecting a bright, steady light. Instead, the LED flickered erratically and quickly burned out. Frustrated, she consulted an online forum. The advice she received was simple: "You need a current-limiting resistor!" Sarah learned that LEDs are non-ohmic devices, and without a resistor to limit the current, they draw too much power, leading to their demise. After adding a small ohmic resistor, her LED glowed perfectly. This experience taught her the critical importance of understanding component behavior and the role of ohmic resistors in protecting sensitive parts.

Common Pitfalls When Working with Resistors

Even experienced engineers can sometimes fall into common traps when dealing with resistors. Here are a few to watch out for:

• Ignoring Power Ratings: Just because a resistor has the correct resistance value doesn't mean it can handle the power. Exceeding a resistor's power rating will cause it to overheat and fail, often spectacularly. Always calculate the power dissipation (P = I²R) and choose a resistor with an adequate power rating.

• Assuming Ohmic Behavior: Not all components are ohmic! As we've discussed, diodes, thermistors, and LEDs are prime examples of non-ohmic devices. Applying Ohm's Law directly to these components without considering their unique I-V characteristics will lead to incorrect calculations and circuit malfunctions.

• Temperature Effects: While often overlooked in simple circuits, temperature can significantly affect a resistor's actual resistance, especially in precision applications or extreme environments. Be mindful of the resistor's temperature coefficient and consider temperature compensation if necessary.

• Parasitic Effects: At high frequencies, resistors can exhibit parasitic inductance and capacitance, which can alter their effective resistance and impedance. For high-frequency applications, specialized resistors designed for RF (Radio Frequency) use might be necessary.

Market Insights: The Enduring Relevance of Resistors

In an era of rapidly advancing technology, it might seem that fundamental components like resistors would become less significant. However, the opposite is true. The global resistor market size is estimated at USD 10.83 billion in 2025 and is expected to reach USD 12.67 billion by 2030, growing at a CAGR of 3.2% during the forecast period [1]. This robust growth underscores the continued and critical role of resistors, including ohmic types, in virtually every electronic device we use daily, from smartphones to industrial machinery. This consistent demand highlights the enduring importance of understanding their behavior and applications.

Frequently Asked Questions (FAQ)

What is the main difference between an ohmic and a non-ohmic resistor?

The main difference lies in their adherence to Ohm's Law. An ohmic resistor maintains a constant resistance regardless of the applied voltage or current, resulting in a linear current-voltage (I-V) relationship. A non-ohmic resistor, however, has a resistance that changes with voltage, current, or temperature, leading to a non-linear I-V curve.

Why is temperature important when discussing ohmic resistors?

While ohmic resistors are defined by constant resistance, this is ideally true only at a constant temperature. Most metallic conductors, which form ohmic resistors, have a positive temperature coefficient of resistance. This means their resistance increases with temperature. In practical applications, especially high-power or precision circuits, temperature effects must be considered to maintain predictable behavior.

Can a non-ohmic resistor be used in place of an ohmic resistor?

Generally, no. Non-ohmic resistors have variable resistance characteristics that are specifically leveraged for certain functions (e.g., rectification in diodes, sensing in thermistors). Replacing an ohmic resistor with a non-ohmic one would lead to unpredictable current and voltage behavior in the circuit, likely causing it to malfunction or fail.

What are some common applications of ohmic resistors?

Ohmic resistors are widely used for current limiting (e.g., protecting LEDs), voltage division (creating specific voltage levels from a single source), and in RC (Resistor-Capacitor) circuits for timing and filtering. They are fundamental components in almost all electronic devices.

How can I identify if a component is an ohmic resistor?

The most reliable way is to perform an I-V characteristic test. By applying varying voltages and measuring the corresponding currents, you can plot an I-V graph. If the graph is a straight line passing through the origin, the component is ohmic. Standard fixed resistors are designed to be ohmic within their operational limits, and their datasheets will confirm this.

How to Choose the Right Ohmic Resistor

Selecting the appropriate ohmic resistor for your project is crucial for optimal circuit performance and longevity. Here’s a checklist to guide your decision-making process:

• Resistance Value (Ohms): This is the most fundamental parameter. Use Ohm’s Law (V=IR) and circuit analysis to determine the exact resistance value needed for current limiting, voltage division, or other functions. Standard values are available in E-series (E12, E24, E96, etc.).

• Power Rating (Watts): Calculate the maximum power the resistor will dissipate (P = I²R or P = V²/R). Choose a resistor with a power rating significantly higher than your calculated value (e.g., 2x or more) to ensure reliability and prevent overheating.

• Tolerance (%): This indicates how close the actual resistance value is to the stated nominal value. For general applications, 5% or 10% tolerance might be acceptable. For precision circuits (e.g., measurement equipment), you might need 1% or even 0.1% tolerance resistors.

• Temperature Coefficient of Resistance (TCR): For applications where temperature stability is critical, look for resistors with a low TCR (e.g., in ppm/°C). Metal film resistors generally have better TCRs than carbon film.

• Type of Resistor: Consider the physical construction and material. Carbon film is cheap and general-purpose. Metal film offers better precision and stability. Wirewound resistors are excellent for high power. Surface-mount (SMD) resistors are compact for modern PCBs.

• Noise Characteristics: In sensitive analog circuits (e.g., audio amplifiers), resistor noise can be an issue. Metal film resistors typically generate less noise than carbon composition resistors.

• Frequency Response: For high-frequency applications, parasitic inductance and capacitance can become significant. Specialized RF resistors are designed to minimize these effects.

By carefully considering these factors, you can ensure that the ohmic resistor you choose perfectly matches the requirements of your circuit, leading to a robust and reliable design. Don’t hesitate to consult datasheets and application notes for detailed specifications and recommendations.

Editor's Review: My Experience with Ohmic Resistors

As someone who has spent years tinkering with electronics, from simple breadboard circuits to complex PCB designs, I can confidently say that ohmic resistors are the unsung heroes of the electrical world. My personal journey into electronics began with a simple LED circuit, much like Sarah's story. I quickly learned that without the humble current-limiting resistor, my LEDs would meet a fiery, albeit brief, end. This early lesson ingrained in me the sheer predictability and reliability that ohmic resistors offer.

I've found that for most general-purpose applications, a good quality metal film resistor is my go-to. They offer an excellent balance of precision, stability, and cost-effectiveness. I particularly appreciate their low noise characteristics when working on audio projects, where even a slight hiss can ruin the experience. There's a certain satisfaction in knowing that when you plug in a calculated ohmic resistor, it will perform exactly as Ohm's Law predicts, providing a stable foundation for the rest of your circuit.

However, I've also had my share of challenges. Early in my career, I underestimated the importance of power ratings. I once designed a circuit where a small 1/4-watt resistor was tasked with dissipating far too much heat. The result? A burnt-out component and a valuable lesson learned about thermal management. It's a reminder that while ohmic resistors are predictable, they are not invincible. Always double-check your power calculations! In essence, mastering ohmic resistors isn't just about memorizing formulas; it's about developing an intuitive understanding of their behavior and respecting their limitations. They are simple, yet profoundly powerful, tools in the hands of a knowledgeable designer.
