ATmega168 8-Bit MCU Deep Dive: Datasheet, Pinout, and Memory Optimization Solutions

Executive Summary: What is the ATmega168?

The ATmega168 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture, designed to execute powerful instructions in a single clock cycle. By achieving throughputs approaching 1 MIPS per MHz, it allows system designers to balance high-speed processing with optimized power consumption.

• Market Position: A high-reliability, mid-range 8-bit MCU that serves as a cost-effective alternative to the ATmega328P.

• Top Features: 16KB In-System Programmable Flash, 20 MHz maximum operating frequency, and a wide operating voltage range (1.8V to 5.5V).

• Primary Audience: Ideal for industrial automation designers, IoT developers, and engineers migrating from smaller ATtiny chips.

• Supply Status: Active (Widely available through Microchip Technology distribution channels).

1. Technical Specifications & Performance Analysis

The ATmega168 is engineered for efficiency, utilizing a Harvard architecture that allows the CPU to access program memory and data memory simultaneously.

1.1 Core Architecture (CPU/Logic/Power)

The "brain" of the ATmega168 is the AVR RISC core. It features 32 general-purpose working registers connected directly to the Arithmetic Logic Unit (ALU). This design allows two independent registers to be accessed in one single instruction executed in one clock cycle, making it significantly faster than conventional CISC microcontrollers.

1.2 Key Electrical Characteristics

Power management is a hallmark of the ATmega168 series. It is designed to operate in various sleep modes to preserve battery life in remote applications.

- Operating Voltage: 1.8V to 5.5V.

- Flash Memory: 16 KB for code storage.

- SRAM: 1 KB for volatile data.

- EEPROM: 512 Bytes for non-volatile parameter storage.

- Clock Speed: Up to 20 MHz at 4.5V – 5.5V.

1.3 Interfaces and Connectivity

Despite its small footprint, the ATmega168 offers robust connectivity for peripheral interfacing:

- USART: Programmable serial port for MIDI, GPS, or Bluetooth modules.

- SPI/2-wire (I2C): Standard buses for connecting sensors, OLED displays, and external memory.

- Analog-to-Digital Converter (ADC): A 10-bit resolution converter with up to 8 channels (in TQFP/MLF packages).

2. Pinout, Package, and Configuration

Understanding the physical layout is critical for PCB routing and hardware debugging.

2.1 Pin Configuration Guide

• VCC/GND: Power and Ground.

• Port B, C, D: 23 general-purpose I/O lines.

• RESET: Used to restart the MCU or enter programming mode.

• XTAL1/XTAL2: Input/Output for the crystal oscillator.

• AVCC: Power supply pin for the ADC (must be connected even if ADC is not used).

2.2 Naming Convention & Ordering Codes

When sourcing the ATmega168, procurement managers must note the suffixes:

- ATmega168-20PU: 28-pin PDIP (Plastic Dual-In-line Package).

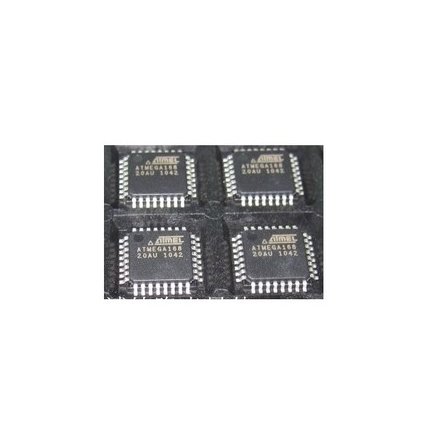

- ATmega168-20AU: 32-lead TQFP (Thin Profile Quad Flat Package).

- ATmega168P/PA: "P" stands for PicoPower technology, offering lower power consumption in sleep modes.

2.3 Available Packages

3. Design & Integration Guide (For Engineers & Makers)

Pro Tip: Always verify pin compatibility before migrating from older series. The ATmega168 is pin-compatible with the ATmega48 and ATmega88.

3.1 Hardware Implementation

• Bypass Capacitors: Place a 0.1µF ceramic capacitor as close as possible to the VCC/GND and AVCC pins to suppress high-frequency noise.

• PCB Layout: Keep the crystal oscillator traces as short as possible and surround them with a ground plane to prevent EMI.

3.2 Common Design Challenges

• Memory Constraints: 16KB Flash can fill up quickly with modern C++ libraries.

• Fix: Use the -Os optimization flag in your compiler or upgrade to the ATmega328P for double the memory.

• Bootloader Bricking: Setting fuses for an external crystal without one connected makes the chip unresponsive.

• Fix: Inject an external 1MHz-8MHz clock signal into the XTAL1 pin to recover access via ISP.

• Signature Mismatch: The ATmega168, 168P, and 168PA have different IDs.

• Fix: Ensure your IDE (like Arduino or Microchip Studio) is set to the specific variant to avoid "Invalid Device Signature" errors.

4. Typical Applications & Use Cases

🎬 Watch Tutorial: ATMEGA168

4.1 Real-World Example: Smart Sensor Hub

In an industrial sensor hub, the ATmega168 acts as the central processor. It collects 10-bit analog data from environmental sensors (via ADC), processes the data using its RISC core, and transmits the results to a central PLC via the USART interface. Its low power consumption makes it ideal for 4-20mA current loop powered devices.

5. Alternatives and Cross-Reference Guide

If the ATmega168 does not meet your specific BOM requirements, consider these alternatives:

• Direct Upgrade: ATmega328P. It offers the same pinout but provides 32KB Flash and 2KB SRAM.

• Cost-Effective Alternative: STM8S103F3. A cheaper 8-bit alternative, though it requires a different toolchain (ST-Link).

• Low Power Specialist: MSP430G2553. Excellent for ultra-low-power battery applications but features a 16-bit architecture.

• Legacy Replacement: PIC16F88. A classic 8-bit MCU from Microchip with similar I/O counts.

6. Frequently Asked Questions (FAQ)

• Q: What is the difference between ATmega168 and ATmega328P?

• A: The primary difference is memory. The ATmega168 has 16KB Flash and 1KB SRAM, while the ATmega328P has 32KB Flash and 2KB SRAM. They are otherwise pin-compatible.

• Q: Can ATmega168 be used in Robotics?

• A: Yes, its high MIPS/MHz throughput and hardware timers make it excellent for PWM motor control and sensor fusion in small robots or quadcopters.

• Q: Where can I find the datasheet and library files for ATmega168?

• A: The official datasheet is available on the Microchip Technology website. Library files are standard in the AVR-GCC and Arduino environments.

• Q: Is ATmega168 suitable for battery-operated devices?

• A: Absolutely. Using the "Power-down" sleep mode, current consumption can be reduced to less than 1µA at 1.8V.

7. Resources

• Development Tools: Microchip Studio (formerly Atmel Studio), Arduino IDE, AVRDUDE.

• Hardware: STK600 Development Board, AVR ISP MKII Programmer.
