ATmega1284P (AVR) 16KB SRAM Microcontroller: Datasheet, Pinout, and Performance Review

Executive Summary: What is the ATmega (AVR)?

The ATmega (AVR) 1284P is a high-performance, low-power 8-bit RISC microcontroller designed to bridge the gap between the entry-level ATmega328P and the high-pin-count ATmega2560. It offers a massive memory upgrade, particularly in SRAM, while maintaining a footprint compatible with breadboard-friendly designs.

• Market Position: Mid-to-high range 8-bit MCU; cost-effective alternative to 32-bit chips for memory-intensive 8-bit applications.

• Top Features: 128KB Flash memory, 16KB Internal SRAM (8x more than the Arduino Uno), and Dual Programmable Serial USARTs.

• Primary Audience: Ideal for IoT designers, 3D printer manufacturers, and hobbyists who have outgrown the ATmega328P but require a DIP-packaged solution.

• Supply Status: Active (Maintained by Microchip Technology).

1. Technical Specifications & Performance Analysis

The ATmega1284P is engineered for applications that require significant data buffering or large look-up tables without the complexity of a 32-bit ecosystem.

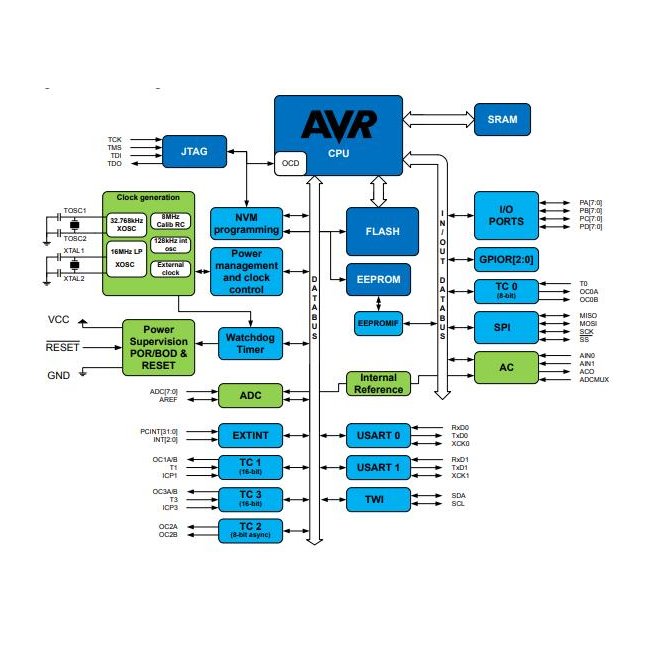

1.1 Core Architecture (CPU/Logic/Power)

The device is based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega1284P achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

1.2 Key Electrical Characteristics

This microcontroller operates across a wide voltage range of 1.8V to 5.5V, making it versatile for both battery-powered 3.3V systems and legacy 5V industrial TTL logic.

- Max Frequency: 20 MHz

- Flash Memory: 128 KB

- SRAM: 16 KB (Critical for complex networking stacks or display buffering)

- EEPROM: 4 KB

1.3 Interfaces and Connectivity

The ATmega1284P stands out due to its expanded I/O capabilities compared to smaller AVR chips: - Dual USARTs: Allows for simultaneous communication with a PC and a peripheral (like a GPS or GSM module). - JTAG Interface: Enables easy on-chip debugging and boundary-scanning. - 8-channel 10-bit ADC: Ideal for multi-sensor integration.

2. Pinout, Package, and Configuration

The 1284P is highly sought after because it is one of the most powerful microcontrollers still available in a PDIP package.

2.1 Pin Configuration Guide

• VCC/GND: Power supply pins (Multiple pins for better stability).

• Port A (PA0-PA7): Serves as the analog inputs to the A/D Converter.

• Port B/C/D: General-purpose I/O lines with internal pull-up resistors.

• XTAL1/XTAL2: Input/Output for the inverting oscillator amplifier.

2.2 Naming Convention & Ordering Codes

When procuring these units, pay attention to the suffix:

- ATmega1284P-PU: PDIP package (Plastic Dual In-line Package).

- ATmega1284P-AU: TQFP package (Thin Quad Flat Pack).

- ATmega1284P-MU: QFN/MLF package (Micro Lead Frame).

2.3 Available Packages

3. Design & Integration Guide (For Engineers & Makers)

Pro Tip: Always verify pin compatibility before migrating from older series. The 1284P pinout differs significantly from the ATmega328P.

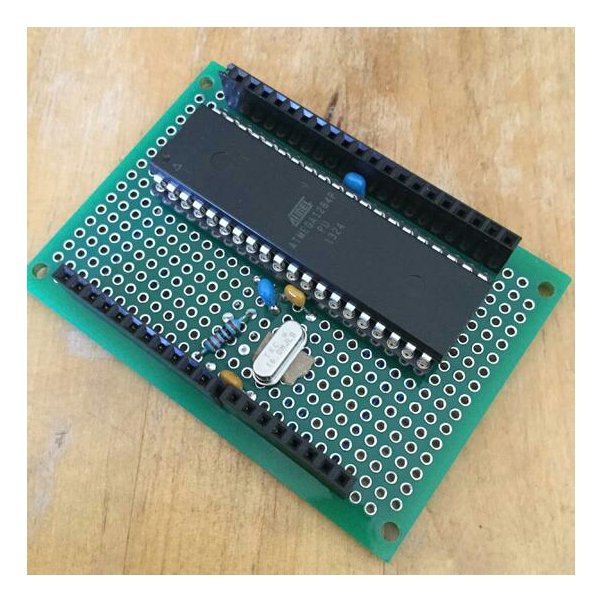

3.1 Hardware Implementation

• Bypass Capacitors: Place a 0.1µF ceramic capacitor as close as possible to every VCC/GND pair to minimize switching noise.

• PCB Layout: Keep the crystal oscillator traces as short as possible and surrounded by a ground plane to prevent EMI.

• Thermal Management: Under normal 20MHz operation, the chip remains cool; however, ensure adequate trace width for high-current I/O switching.

3.2 Common Design Challenges

• Issue: Arduino Core Support -> Fix: The 1284P is not in the default Arduino menu. Install the "MightyCore" via the Board Manager for full support.

• Issue: Pin Mapping Confusion -> Fix: There are "Standard" and "Bobuino" mappings. Check your variant in the IDE settings to ensure your digital pin numbers match your physical wiring.

• Issue: Library Compatibility -> Fix: Some libraries use hardcoded registers meant for the 328P. Use updated versions of libraries (like Wire or SPI) that explicitly support the 1284P.

4. Typical Applications & Use Cases

4.1 Real-World Example: 3D Printer Controllers

The ATmega1284P is the heart of the Melzi Board. Because 3D printing requires calculating complex G-code movements while managing a display and SD card, the 16KB SRAM is vital. It allows for a larger motion buffer, leading to smoother prints compared to the ATmega328P.

5. Alternatives and Cross-Reference Guide

If the ATmega1284P does not meet your specific requirements, consider these alternatives:

• Direct Replacements: ATmega644P (Half the flash, same pinout) for cost reduction.

• Better Performance: STM32F103 (Blue Pill) for 32-bit processing power, though it requires a 3.3V logic shift.

• Higher I/O Count: ATmega2560 if you need more than 32 I/O pins.

• Modern 8-bit Features: ATmega328PB for dual I2C/SPI in a smaller package.

6. Frequently Asked Questions (FAQ)

• Q: What is the difference between ATmega1284P and ATmega328P?

• A: The 1284P has 4x the Flash (128KB vs 32KB) and 8x the SRAM (16KB vs 2KB), plus an extra UART.

• Q: Can I program the ATmega1284P with an Arduino Uno?

• A: Yes, you can use an Uno as an "Arduino ISP" to flash the bootloader to a 1284P.

• Q: Is the ATmega1284P suitable for battery-operated devices?

• A: Yes, it features PicoPower technology and can operate down to 1.8V in low-frequency modes.

• Q: How do I handle the bootloader complexity?

• A: Use a dedicated ISP programmer like the USBasp or AVRISP mkII and the MightyCore software package.

7. Resources

• Datasheet: Microchip Official ATmega1284P PDF.

• Development Tools: Microchip Studio (formerly Atmel Studio), Arduino IDE with MightyCore.

• Library Support: Check GitHub for "AVR-standard" compatible libraries.
