SigmaDSP Audio Processors 294.912 MHz Performance: Datasheet, Pinout, and Design Analysis

Executive Summary: What is the SigmaDSP Audio Processors?

The SigmaDSP Audio Processors are a family of fully programmable, automotive-qualified digital signal processors (DSPs) designed by Analog Devices Inc. to provide high-fidelity audio processing through the SigmaStudio graphical environment. These processors allow engineers to implement complex audio signal chains—including equalization, dynamics processing, and filtering—without writing low-level assembly code.

• Market Position: High-performance, mid-to-high-tier audio processing; specifically dominant in automotive and professional audio sectors.

• Top Features: 294.912 MHz 32-bit core, up to 6144 SIMD instructions per sample, and integrated S/PDIF connectivity.

• Primary Audience: Ideal for automotive infotainment designers, professional audio equipment manufacturers, and developers of high-end consumer soundbars.

• Supply Status: Active (widely available in various iterations like the ADAU1452 and ADAU1467).

1. Technical Specifications & Performance Analysis

The SigmaDSP series represents a significant leap from legacy audio chips, focusing on massive parallel processing of audio data.

1.1 Core Architecture (CPU/Logic/Power)

The "brain" of this series is a 32-bit SigmaDSP core capable of running at 294.912 MHz. This specific frequency is chosen because it is an exact multiple of standard audio sample rates (48 kHz), allowing for precisely 6144 SIMD (Single Instruction, Multiple Data) instructions per sample. This architecture allows the chip to process hundreds of channels of audio with minimal latency, making it superior to general-purpose microcontrollers for real-time sound manipulation.

1.2 Key Electrical Characteristics

For the hardware engineer, power sequencing and thermal management are the primary concerns:

- Core Voltage (DVDD): Operates at a low 1.2 V to minimize power consumption at high clock speeds.

- I/O Voltage (IOVDD): Flexible range from 1.8 V to 3.3 V, ensuring compatibility with modern low-voltage logic and legacy 3.3V systems.

- Analog/PLL Voltage (AVDD/PVDD): Requires a clean 3.3 V supply to maintain clock stability and minimize jitter.

- Temperature Range: Automotive qualified for -40°C to +105°C, essential for head units and engine-adjacent audio modules.

1.3 Interfaces and Connectivity

The SigmaDSP series is designed to act as a central audio hub. It features:

- ASRCs: Up to 8 stereo Asynchronous Sample Rate Converters to handle different input sources (e.g., Bluetooth at 44.1 kHz and Digital Radio at 48 kHz).

- S/PDIF: Integrated transmitter and receiver for direct digital audio interfacing.

- I2C/SPI: Standard control ports for interfacing with a host MCU or external EEPROM.

2. Pinout, Package, and Configuration

The physical implementation of the SigmaDSP series requires precision, particularly regarding its high-speed digital lines.

2.1 Pin Configuration Guide

The series is typically housed in a 72-lead LFCSP (Lead Frame Chip Scale Package), which provides excellent thermal dissipation through an exposed center pad.

• Power Pins: Multiple DVDD and IOVDD pins must be decoupled locally.

• MCLK/PLL: The Master Clock input is critical; the internal PLL generates the 294 MHz internal clock from a standard 12.288 MHz or 24.576 MHz crystal.

• Self-Boot: A dedicated pin that determines if the DSP loads its program from an external I2C EEPROM at power-up.

• Serial Data I/O (SDATA): Multiple pins for I2S or TDM data streams.

2.2 Naming Convention & Ordering Codes

When sourcing these components, pay attention to the suffixes:

"W" Suffix: Indicates Automotive Qualification (AEC-Q100).

"Z" Suffix: Indicates RoHS compliance (Lead-free).

RL7: Denotes 7-inch Tape and Reel packaging for automated assembly.

2.3 Available Packages

3. Design & Integration Guide (For Engineers & Makers)

Pro Tip: Always verify pin compatibility before migrating from older series like the ADAU1701, as the newer high-performance SigmaDSPs do not include internal converters.

3.1 Hardware Implementation

• Bypass Capacitors: Use 0.1 µF ceramic capacitors as close as possible to every power pin. A larger 10 µF tantalum capacitor should be placed near the main supply entry.

• PCB Layout: The 72-LFCSP has a thermal pad. This must be soldered to a large ground plane with multiple thermal vias to prevent "Panic Codes" at high temperatures.

• Clocking: Keep MCLK traces short and shielded to avoid EMI issues and clock jitter.

3.2 Common Design Challenges

• Issue: EEPROM/Self-Boot Failures -> Fix: Ensure the Self-boot pin is held low during initial USBi programming. Verify the EEPROM address matches the DSP's expected address (usually 0xA0).

• Issue: Communication Lockup (0xFF Read) -> Fix: This usually indicates the DSP core isn't running. Check if the Master Clock (MCLK) is active and the Reset pin is pulled high.

• Issue: No Built-in Converters -> Fix: Unlike the entry-level ADAU1701, these high-power units require external Codecs. Pair with an ADAU1977 for high-quality ADC input.

4. Typical Applications & Use Cases

📺 Recommended Video Tutorial:

👉 Click to Watch "ADAU1452" Guide on YouTube

4.1 Real-World Example: Automotive DSP Amplifier

In a modern car audio system, the SigmaDSP acts as the central processor. It receives digital audio via TDM from the head unit, applies time alignment (to ensure sound reaches the driver's ears simultaneously from all speakers), performs 31-band EQ, and then outputs the signals to external Class-D amplifiers.

5. Alternatives and Cross-Reference Guide

If the SigmaDSP series is unavailable or doesn't fit your BOM, consider these alternatives:

• Direct Replacements: The ADAU1462/1466 series offers pin-compatible upgrades with more memory for longer delay lines.

• Cost-Effective Options: For simpler projects not requiring automotive qualification, the NXP SGTL5000 is a popular low-power alternative, though it lacks the graphical SigmaStudio environment.

• High-End Hybrid: XMOS xCORE processors are better suited if you need integrated USB Audio Class 2.0 support alongside DSP functions.

6. Frequently Asked Questions (FAQ)

• Q: What is the difference between SigmaDSP and a standard ARM Cortex-M DSP?

• A: SigmaDSP is "Stream-Oriented." It is optimized for processing audio samples in parallel with zero overhead, whereas ARM chips are "Buffer-Oriented" and require more complex RTOS management for audio.

• Q: Can SigmaDSP be used in battery-operated devices?

• A: Yes, but it requires efficient 1.2V and 3.3V switching regulators. Its low core voltage helps keep power consumption manageable.

• Q: How do I program the SigmaDSP?

• A: Use the SigmaStudio software and a USBi (ADUSB2EBZ) hardware interface for real-time "drag-and-drop" tuning.

7. Resources

• Development Tools: SigmaStudio Graphical Development Tool (Free download from Analog Devices).

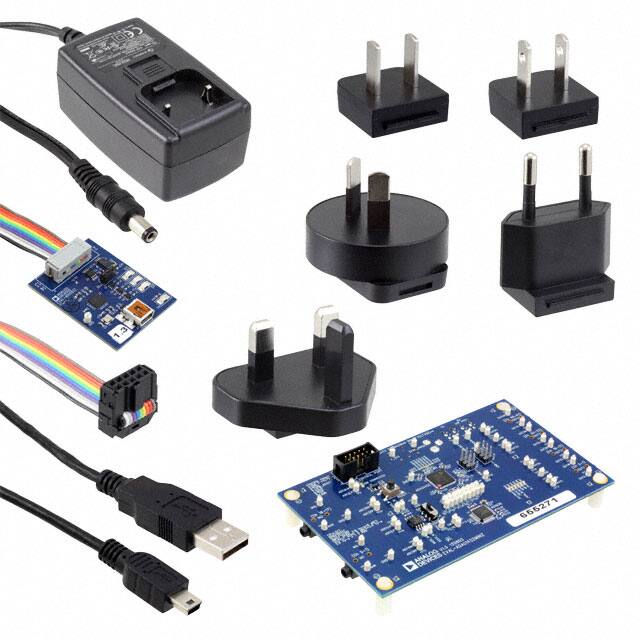

• Hardware: EVAL-ADAU1452EBZ Evaluation Board.

• Documentation: Search for "ADAU1452 Datasheet" for the full 180-page technical manual.
