STM8S005K6T6C Microcontroller: Features, Applications and Datasheet

Value line 8-bit microcontrollers STM8S005C6/K6 have 128 bytes of data EEPROM in addition to 32 Kbytes of Flash program memory. According to the STM8S microcontroller family reference manual (RM0016), these are called medium-density devices.

The following advantages are offered by all STM8S005C6/K6 value line devices: performance, resilience, lower system costs, and quick development cycles.

True data EEPROM enabling up to 100,000 write/erase cycles, sophisticated peripherals and cores manufactured with cutting-edge technology at a clock frequency of 16 MHz, reliable I/Os, independent watchdogs with their own clock source, and a clock security system all contribute to the device's performance and robustness. A high system integration level including watchdog, brown-out reset, and internal clock oscillators lowers the system cost.

Applications may scale more easily and require fewer development cycles because to the common family product architecture, which features compatible pinouts, memory maps, and modular peripherals.

• Extended instruction set and a 16MHz maximum fCPU core

• sophisticated STM8 core with a three-stage pipeline and Harvard architecture

• Internal low power 128KHz RC and user-trimmable 16MHz RC

• Clock security system including a clock display

• low power settings and turn off each peripheral clock separately

• Low-power, continuously operational power-on and power-down reset

• 32 interrupts and up to 37 external interrupts on 6 vectors are available on a nested interrupt controller.

• 10bit ADC, ± 1 LSB ADC, scan mode, and analogue watchdog with up to 10 multiplexed channels

• 48-pin package with up to 38 I/Os, including 16 high-sink outputs

• a single-wire interface module embedded in the device enabling quick on-chip programming and discreet debugging

Symbol

Footprint

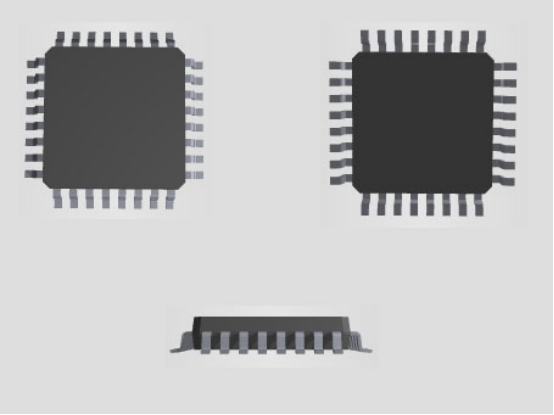

3D Model

Applications for the STM8S005K6T6C, an 8-bit microcontroller, include industrial and appliance settings. It provides advantages like:
