TPS2559DRCR：Power-Distribution, Pinout, Low-Resistance

Sophie

Published: 15 February 2022 | Last Updated: 15 February 2022

841

TPS2559DRCR

Texas Instruments

N-Channel 0.5mm PMIC TPS2559 10 Pin 5V 10-VFDFN Exposed Pad

Purchase Guide

N-Channel 0.5mm PMIC TPS2559 10 Pin 5V 10-VFDFN Exposed Pad

The TPS2559DRCR power-distribution switch is utilized in applications which call for a low-resistance, precision current limit switch or heavy capacitive loads. The following article will introduce its features, pinout, and other details.

This short video introduces the details of TPS2559DRCR when using.

TPS2559 TI, current switch for circuit protection

Catalog

TPS2559DRCR Description

The TPS2559DRCR power-distribution switch is designed for situations that demand a low-resistance precision current limit switch or strong capacitive loads. With a precise current limit set by a single resistor to ground, the TPS2559DRCR can give up to 5.5 A of steady load current. When the output load exceeds the current-limit threshold, the output current is maintained at a safe level by switching to a constant-current mode. The output current is limited to the level defined by R during overload events (ILIM). If a persistent overload occurs, the device enters thermal cutoff mode to preserve the TPS2559DRCR from damage.

The rise and fall timings of the power switch are regulated to reduce current surges when the switch is turned on or off. During over-current or short-circuit conditions, the FAULT logic output tests low.

TPS2559DRCR Pinout

TPS2559DRCR CAD Model

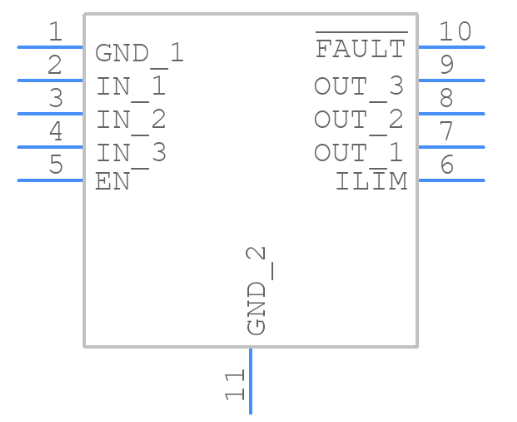

Symbol

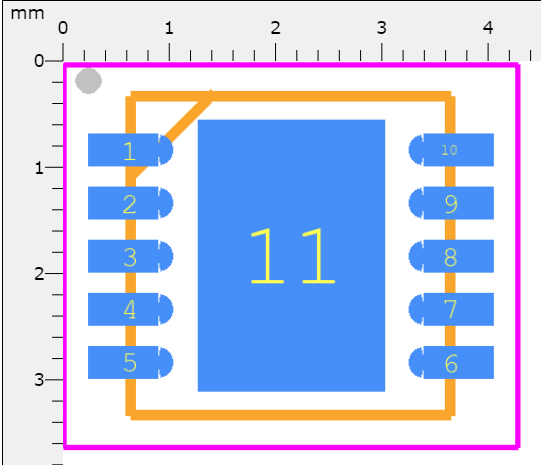

Foorprint

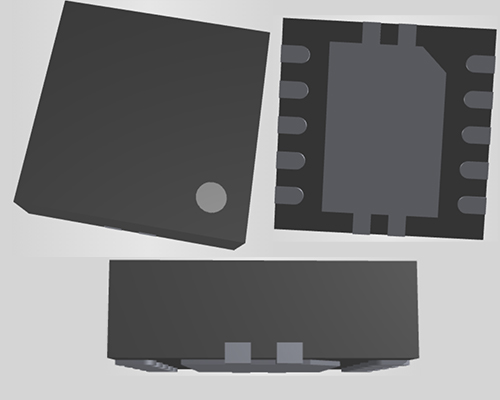

3D Model

3D MODEL.jpg

TPS2559DRCR Features

• Operating range: 2.5 V to 6.5 V

• Adjustable 1.2-A to 4.7-A I(LIMIT) (±4.4% at 4.7 A)

• Short-circuit shutoff (typical): 3.5 µs

• High-side MOSFET: 13 mΩ

• Maximum standby supply current: 2 µA

• Built-in soft-start

• System-level ESD capable: 8 kV / 15 kV

• UL 2367 recognition pending

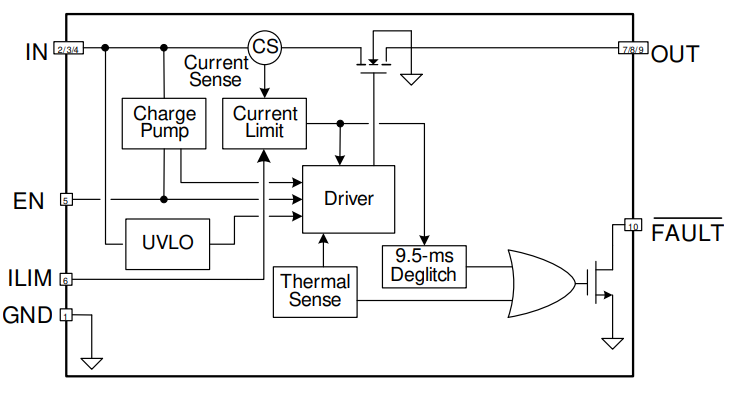

TPS2559DRCR Functional Block Diagram

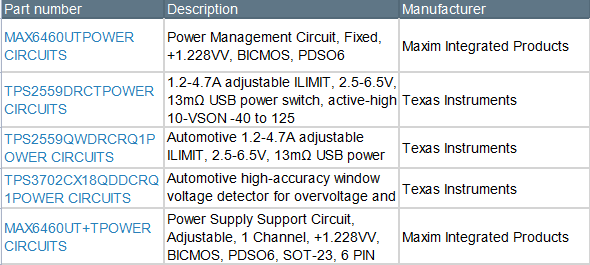

TPS2559DRCR Equivalents

Specification

TPS2559DRCR Applications

• USB ports, hubs

• Digital TVs

• Set-top boxes

• VOIP phones

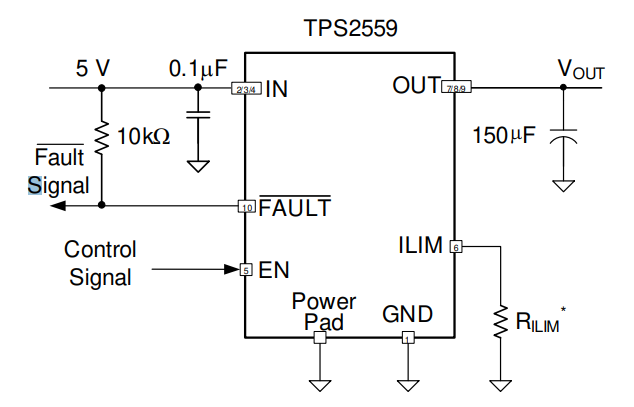

TPS2559DRCR Typical Application Circuit

TPS2559DRCR Manufacturer

Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.

Trend Analysis

Parts with Similar Specs

The three parts on the right have similar specifications to Texas Instruments & TPS2559DRCR.

Part Number
Manufacturer
Package / Case
Number of Pins
Number of Outputs
Max Output Current
Interface
Supply Voltage
Radiation Hardening
Output Configuration
View Compare
TPS2559DRCR
Texas Instruments
10-VFDFN Exposed Pad
10
1
5.5 A
On/Off
5 V
No
High Side
TPS2557DRBT
Texas Instruments
8-WFDFN Exposed Pad
8
1
6 A
On/Off
5 V
No
High Side
TPS2559DRCR
VS
TPS2557DRBT
VN5E160ASTR-E
STMicroelectronics
8-VDFN Exposed Pad
8
1
5 A
On/Off
5 V
No
High Side
TPS2559DRCR
VS
VN5E160ASTR-E
TPS2557DRBR
Texas Instruments
8-VDFN Exposed Pad
8
1
5 A
On/Off
5 V
No
High Side
TPS2559DRCR
VS
TPS2557DRBR
TPS22965DSGR
Texas Instruments
8-SOIC (0.154, 3.90mm Width)
8
1
7 A
On/Off
13 V
No
High Side
TPS2559DRCR
VS
TPS22965DSGR

Datasheet PDF

Download datasheets and manufacturer documentation for Texas Instruments TPS2559DRCR.

PCN Design/Specification :
Mult Dev Material Chg 29/Mar/2018
PCN Assembly/Origin :
Fabrication Site Addition 17/Dec/2014

Frequently Asked Questions

What is TPS2559DRCR?

The TPS2559DRCR power-distribution switch is designed for situations that demand a low-resistance precision current limit switch or strong capacitive loads. With a precise current limit set by a single resistor to ground, the TPS2559DRCR can give up to 5.5 A of steady load current. When the output load exceeds the current-limit threshold, the output current is maintained at a safe level by switching to a constant-current mode. The output current is limited to the level defined by R during overload events (ILIM). If a persistent overload occurs, the device enters thermal cutoff mode to preserve the TPS2559DRCR from damage.
The rise and fall timings of the power switch are regulated to reduce current surges when the switch is turned on or off. During over-current or short-circuit conditions, the FAULT logic output tests low.

What is the recommended operative temperature of TPS2559DRCR?

-40℃-125℃.

What power-distribution switch is used in applications that call for a low-resistance？

TPS2559DRCR.
