1. Introduction: The Unsung Hero of Electronics

Have you ever wondered how the intricate dance of electricity within your favorite gadgets is precisely choreographed? Imagine a powerful river, its currents untamed and destructive. Now, picture a series of strategically placed dams, each meticulously controlling the flow, ensuring the water reaches its destination safely and efficiently. In the world of electronics, the humble resistor plays precisely this role. It’s the unsung hero, quietly but fundamentally controlling the electrical currents that power everything from your smartphone to complex industrial machinery. Despite their apparent simplicity, resistors are absolutely fundamental to virtually every electronic device we interact with daily. This guide will delve deep into what resistors are used for, exploring their essential resistor purpose and covering everything from their basic functions to their specific applications in circuits like LED drivers, voltage dividers, and much more. Prepare to uncover the silent power behind the circuits that shape our modern world.

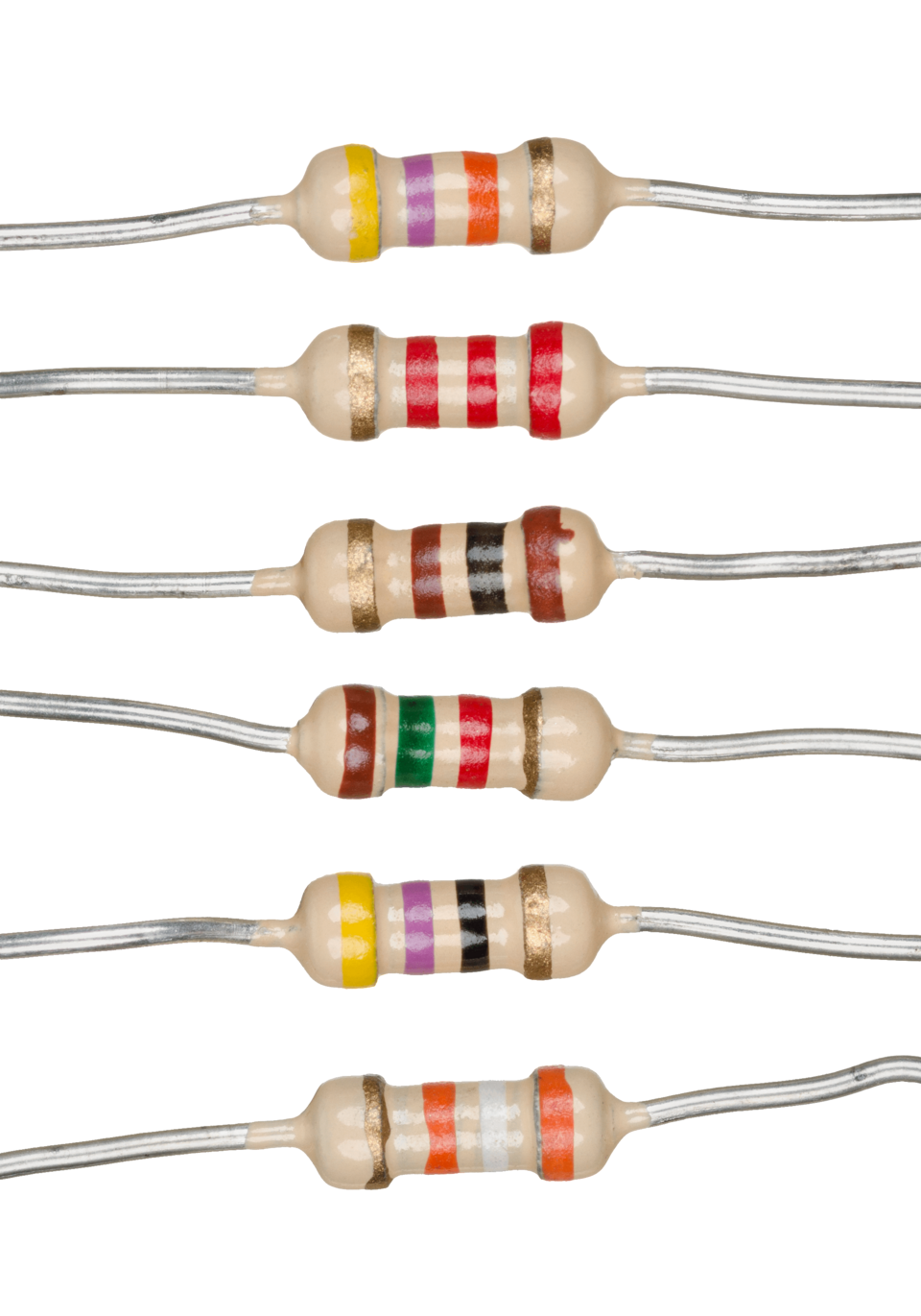

Figure 1: Various in-line resistors with colored bands, demonstrating their diversity.

Source：Wikipedia

2. The Fundamental Role of a Resistor in Electronic Circuits

What is a Resistor and How Does It Work?

At its core, a resistor [2] is a passive two-terminal electrical component that implements electrical resistance as a circuit element. But what does that really mean? Think of electricity as water flowing through a pipe. A resistor acts like a constriction or a partially closed valve in that pipe, impeding the flow of water. Similarly, in an electrical circuit, a resistor impedes the flow of electric current. This fundamental property is quantified by Ohm’s Law [1], one of the most crucial principles in electronics. Ohm’s Law states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them (I = V/R). In simpler terms, for a given voltage, the higher the resistance, the lower the current. This ability to control current flow is the primary function of a resistor, making it indispensable for protecting sensitive components and ensuring circuits operate as intended. Understanding theresistor working principle and function is key to comprehending its widespread utility.

The 4 Main Functions of a Resistor

The role of resistors in electronic circuits extends far beyond simply impeding current. They perform several critical functions that are vital for the proper operation and safety of electronic devices. Here are the four main functions:

1. Current Limiting: This is perhaps the most common and intuitive use of a resistor. Many electronic components, such as Light Emitting Diodes (LEDs), can be damaged by excessive current. A resistor placed in series with such a component limits the current flowing through it to a safe level, protecting it from burnout. It’s like putting a speed bump on an electrical highway.

2. Voltage Division: Resistors can be used to divide a voltage source into smaller, more manageable voltages. By connecting two or more resistors in series, the voltage drops across each resistor are proportional to its resistance. This allows engineers to create specific voltage levels required by different parts of a circuit from a single higher voltage supply. This is incredibly useful for biasing transistors or providing reference voltages.

3. Pull-up / Pull-down: In digital electronics, resistors are often used as

pull-up or pull-down resistors. These resistors ensure that a digital logic pin is at a defined logic level (either high or low) when it would otherwise be floating or indeterminate. A pull-up resistor connects the pin to the positive voltage supply, ensuring it reads as high by default, while a pull-down resistor connects it to ground, ensuring a low default state. This prevents erratic behavior in digital circuits.

4. Timing: When a resistor is used in conjunction with a capacitor, it forms what is known as an RC circuit. The time it takes for the capacitor to charge or discharge through the resistor can be precisely controlled by the values of the resistor and capacitor. This timing function is fundamental to the operation of oscillators, timers, and filters, which are essential building blocks in a vast array of electronic systems.

3. Common Resistor Applications in Practice

Real-World Examples: Where You’ll Find Resistors at Work

Resistors are ubiquitous in modern electronics, performing a myriad of tasks that are crucial for the functionality and longevity of devices. Understanding common resistor application scenarios provides a practical insight into their importance. From the simplest LED indicator to complex power supplies, resistors are silently at work, ensuring everything operates smoothly.

The Use Case: Resistors in LED Circuits

Perhaps the most common and easily understood application of a resistor is in an LED circuit. Light Emitting Diodes (LEDs) are semiconductor devices that emit light when current flows through them. However, LEDs have a specific forward voltage drop and are highly sensitive to current. If too much current flows through an LED, it will quickly burn out. This is where the current-limiting resistor comes into play. By placing a resistor in series with the LED, we can limit the current to a safe operating level, ensuring the LED illuminates brightly without being damaged. For example, if you have a 5V power supply and an LED with a 2V forward voltage and a desired forward current of 20mA, you would calculate the required resistance using Ohm’s Law: R = (V_supply - V_LED) / I_LED = (5V - 2V) / 0.02A = 150 Ohms. This simple calculation highlights the critical role resistors play in protecting sensitive components.

Figure 2: An LED circuit with a current-limiting resistor, showing how the resistor protects the LED.

Source: YouTube

Designing Voltage Divider Circuits

Another fundamental application of resistors is in creating voltage divider circuits. A voltage divider is a simple passive linear circuit that produces an output voltage (V_out) that is a fraction of its input voltage (V_in). It consists of two series resistors connected across a voltage source. The output voltage is taken across one of the resistors. This configuration is incredibly useful for generating a specific, lower voltage from a higher supply voltage, which is often necessary for microcontrollers or sensors that operate at lower voltages than the main power supply. For instance, if you have a 12V supply and need a 5V reference for a sensor, you can use two resistors in a voltage divider configuration to achieve this. This allows for precise control over voltage levels within a circuit, enabling compatibility between components with different voltage requirements.

Resistors for Circuit Protection

Beyond current limiting for individual components, resistors also serve broader circuit protection roles. Some specialized resistors, known as fusible resistors, are designed to act as a fuse, breaking the circuit if the current exceeds a certain threshold, thereby preventing damage to more expensive or sensitive downstream components. They are often found in power supplies and motor control circuits. Additionally, resistors can be used as inrush current limiters to suppress the initial surge of current that occurs when a circuit is first powered on, which can be damaging to capacitors and other components. By temporarily limiting this initial current, resistors help to extend the lifespan of electronic devices and improve their overall reliability. This protective function underscores the resistor’s role not just in controlling current, but in safeguarding the entire electronic system. For more details on these protective components, read Everything You Need to Know About Fuse Resistors here.

4. A Practical Guide to Resistor Types and Selection

Choosing the Right Tool: A Guide to Resistor Types

Just as a carpenter chooses the right tool for the job, an electronics engineer must select the appropriate resistor type for a given application. The world of resistors is diverse, with various types designed for specific performance characteristics.Understanding the different types of resistors & selection guide [3] is crucial for successful circuit design. The most common types you’ll encounter include:

• Carbon Film Resistors: These are general-purpose resistors, widely used due to their low cost and reasonable performance. They are made by depositing a thin carbon film onto a ceramic substrate. They offer good stability and are suitable for most common electronic applications where high precision or power handling is not critical.

• Metal Film Resistors: Offering better precision, stability, and lower noise than carbon film resistors, metal film resistors are made by depositing a thin metal film (like nickel-chromium) onto a ceramic substrate. They are often used in applications requiring tighter tolerances, such as audio equipment and measurement instruments. For a detailed comparison, see our guide onCarbon Film vs Metal Film Resistors here.

• Wirewound Resistors: These resistors are constructed by winding a metal wire (often nichrome) around a non-conductive core. They are known for their high power dissipation capabilities and excellent stability, making them ideal for high-power applications, such as power supplies and motor control circuits. However, their inductive properties can be a disadvantage in high-frequency applications.

When selecting a resistor, several key criteria must be considered:

• Resistance Value (Ohms): This is the primary characteristic, determining how much current the resistor will impede. It’s chosen based on the specific circuit requirements, often calculated using Ohm’s Law.

• Tolerance (%): This indicates the permissible deviation from the stated resistance value. Common tolerances are 5%, 1%, and 0.1%. Higher precision applications require lower tolerance resistors, which are typically more expensive.

• Power Rating (Watts): This specifies the maximum amount of power the resistor can safely dissipate without overheating and being damaged. It’s crucial to select a resistor with a power rating greater than the expected power dissipation in the circuit (P = I²R or P = V²/R).

Power Resistors vs. Standard Resistors: When to Use Which?

The distinction between power resistors vs. standard resistors primarily lies in their ability to dissipate heat. While all resistors dissipate some amount of power as heat, power resistors are specifically designed to handle significantly larger amounts of power without failing.

Standard resistors (like typical carbon film or metal film resistors) are generally rated for power dissipation in the range of 1/8W to 1W. They are suitable for signal processing, low-power control circuits, and general electronics where current levels are relatively low. Their compact size makes them ideal for dense circuit boards.

Power resistors, on the other hand, are designed for applications where substantial power dissipation is expected. They typically have power ratings from a few watts up to hundreds of watts. These are often wirewound resistors, characterized by their larger physical size and robust construction, which allows them to dissipate heat more effectively. Examples include dummy loads in audio amplifiers, current limiting in motor drive circuits, or in power supply filtering. Choosing the correct type based on the power requirements of your circuit is paramount for both performance and safety.

5. Essential Calculations and Tools for Working with Resistors

Mastering the Math: Resistor Calculations Made Easy

Working with resistors often involves some fundamental calculations to ensure they are correctly integrated into a circuit. Understanding how resistors behave when connected in series or parallel is crucial for any electronics enthusiast or professional.

Series and Parallel Resistor Formulas

When resistors are connected in a circuit, their combined resistance can be calculated using specific formulas. These calculations are essential for designing circuits that achieve desired current and voltage levels. For a more in-depth analysis, refer to our guide onAnalysis of Resistors in Series and Parallel here.

• Resistors in Series: When resistors are connected end-to-end, forming a single path for current, they are said to be in series. The total resistance (R_total) of resistors in series is simply the sum of their individual resistances.

  Formula: R_total = R1 + R2 + R3 + … + Rn

  For example, if you have three resistors of 100Ω, 220Ω, and 330Ω connected in series, the total resistance would be 100 + 220 + 330 = 650Ω. This configuration increases the overall resistance of the circuit.

• Resistors in Parallel: When resistors are connected across the same two points, providing multiple paths for current, they are said to be in parallel. The total resistance of resistors in parallel is calculated differently, and the combined resistance will always be less than the smallest individual resistance.

  Formula: 1/R_total = 1/R1 + 1/R2 + 1/R3 + … + 1/Rn

  Alternatively, for two resistors in parallel, a simpler formula can be used: R_total = (R1 * R2) / (R1 + R2). For instance, two 100Ω resistors in parallel would result in a total resistance of (100 * 100) / (100 + 100) = 10000 / 200 = 50Ω. This configuration decreases the overall resistance of the circuit.

These formulas are fundamental for designing and troubleshooting circuits, allowing you to predict and control current flow and voltage drops accurately.

How to Read Resistor Color Codes

Before the advent of readily available digital multimeters, and still widely used today, resistors are marked with colored bands to indicate their resistance value, tolerance, and sometimes temperature coefficient. Learning how to read resistor color codesis a basic skill for anyone working with electronics. Most commonly, you’ll encounter 4-band or 5-band resistors.

• 4-Band Resistors:

• Band 1 (First Digit): Represents the first significant digit of the resistance value.

• Band 2 (Second Digit): Represents the second significant digit.

• Band 3 (Multiplier): Indicates the power of ten by which the first two digits are multiplied.

• Band 4 (Tolerance): Specifies the percentage deviation from the nominal resistance value.

• 5-Band Resistors: These are typically used for higher precision resistors.

• Band 1 (First Digit): First significant digit.

• Band 2 (Second Digit): Second significant digit.

• Band 3 (Third Digit): Third significant digit.

• Band 4 (Multiplier): Multiplier.

• Band 5 (Tolerance): Tolerance.

Each color corresponds to a specific number or multiplier. For example, brown is 1, red is 2, orange is 3, and so on. Gold and silver are typically used for tolerance bands. While memorizing the color code can be helpful, many online Resistor Color Code Calculator tools are available that can instantly decode the value for you by simply inputting the colors of the bands. This makes working with resistors much more efficient and reduces the chance of errors.

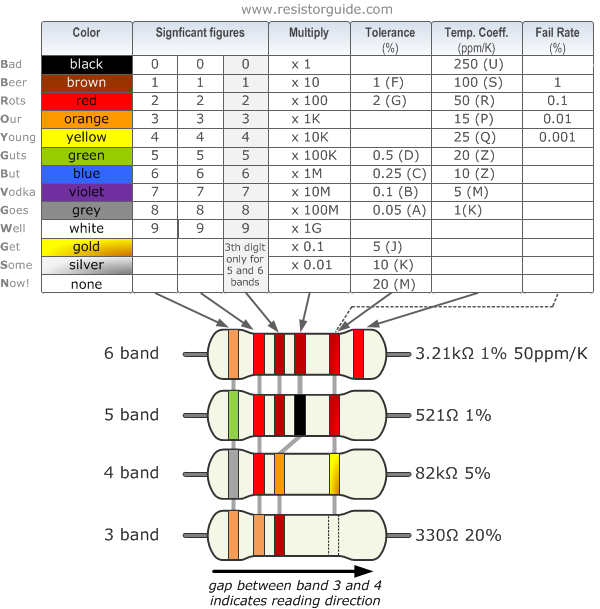

Figure 3: Resistor color code chart for identifying resistor values and tolerances.

Source: EEPower

6. Specialized and Advanced Resistor Applications

Beyond the Basics: Niche and Advanced Uses

While the fundamental applications of resistors are widespread, their versatility extends to more specialized and advanced uses in various fields of electronics. These applications often leverage specific characteristics of different resistor types to achieve high precision, sensing capabilities, or optimal signal integrity.

Precision Resistors in Measurement Equipment

In applications where accuracy is paramount, such as in multimeters, scientific instruments, and high-end audio equipment, precision resistors are indispensable. Unlike standard resistors with tolerances of 5% or 1%, precision resistors boast much tighter tolerances, often down to 0.1% or even 0.01%. This extreme accuracy ensures that measurements are reliable and that sensitive circuits operate exactly as designed. For instance, in a digital multimeter, the accuracy of voltage and current readings heavily relies on the precision of the internal resistors used in its measurement bridges and voltage dividers. Without these highly accurate components, the instrument would provide unreliable data, making them critical for any application demanding meticulous control and exactitude. For more insights into these specialized components, you can refer to a Beginners Guide to Precision Resistors here.

Thermistors: Resistors for Temperature Sensing

Resistors aren’t just about impeding current; some are designed to change their resistance based on environmental factors.Thermistors are a prime example, functioning as temperature-sensitive resistors. Their resistance changes significantly and predictably with temperature. There are two main types:

• NTC (Negative Temperature Coefficient) Thermistors: Their resistance decreases as temperatureincreases. These are commonly used in temperature measurement, control, and compensation circuits, such as in digital thermometers, automotive applications, and battery management systems to monitor battery temperature during charging and discharging.

• PTC (Positive Temperature Coefficient) Thermistors: Their resistance increases as temperatureincreases. These are often used as resettable fuses for overcurrent protection, as their resistance rapidly increases when a certain temperature (caused by excessive current) is reached, effectively limiting the current flow. They can also be found in self-regulating heaters.

Thermistors provide a cost-effective and reliable way to integrate temperature sensing into electronic systems, enabling devices to respond intelligently to thermal changes.

Selecting Resistors for High-Fidelity Audio Circuits

In the pursuit of pristine sound quality, every component in an audio circuit matters, and resistors are no exception. In high-fidelity audio circuits, particularly in preamplifiers and sensitive signal paths, the choice of resistor can significantly impact the overall noise floor and distortion characteristics. Standard carbon film resistors, while inexpensive, can introduce more thermal noise and exhibit microphonic effects (converting mechanical vibrations into electrical signals). For this reason, audio engineers often opt for metal film resistors due to their lower noise characteristics, better temperature stability, and tighter tolerances. Some audiophiles even prefer specialized non-inductive resistors to prevent signal degradation at higher frequencies. The goal is to ensure that the resistor contributes minimally to the signal, allowing the pure audio waveform to pass through with maximum clarity and fidelity. This attention to detail highlights how even seemingly minor components play a crucial role in specialized applications.

A Quick Guide to SMD Resistors

As electronics have become increasingly miniaturized, the form factor of components has evolved. Surface-Mount Device (SMD) resistors are tiny, rectangular components designed to be mounted directly onto the surface of printed circuit boards (PCBs), rather than having leads that pass through holes. Their compact size and low profile are essential for modern, densely packed electronic devices like smartphones, laptops, and wearables. SMD resistors are manufactured in various standard sizes (e.g., 0402, 0603, 0805), with the numbers indicating their dimensions in hundredths of an inch. They offer excellent high-frequency performance due to their minimal lead inductance and capacitance, making them prevalent in virtually all contemporary electronic designs. Understanding SMD resistors is key to comprehending the construction of most modern electronic gadgets.

7. Troubleshooting and Maintenance

What to Do When Things Go Wrong: Resistor Failure and Troubleshooting

Even the most robust electronic components can fail, and resistors are no exception. Understanding resistor troubleshooting and repair tips is essential for diagnosing and fixing issues in electronic circuits. A failed resistor can lead to a variety of circuit malfunctions, from a complete lack of operation to incorrect voltage levels or excessive current draw.

How to identify a failed resistor:

1. Visual Inspection: Often, a failed resistor will show visible signs of damage. Look for:

• Discoloration or Charring: This indicates overheating, often due to excessive current or power dissipation beyond its rating.

• Cracks or Swelling: Physical damage can occur from mechanical stress or extreme thermal cycling.

• Burn Marks on the PCB: This suggests the resistor got hot enough to damage the circuit board itself.

2. Multimeter Test: The most reliable way to test a resistor is with a multimeter set to resistance (Ohms) mode.

• Isolate the Resistor: For accurate readings, it’s best to desolder one leg of the resistor from the circuit board. This prevents other components in the circuit from affecting the measurement.

• Measure Resistance: Place the multimeter probes across the resistor. Compare the measured value to the resistor’s stated value (from its color code or markings). A significant deviation (e.g., an open circuit, indicated by an

infinite reading, or a very low reading for a high-value resistor) indicates a failure.

Common causes of failure:

• Overheating: The most frequent cause of resistor failure is exceeding its power rating, leading to excessive heat buildup and eventual burnout. This can happen if the wrong resistor value is chosen or if the circuit experiences an unexpected surge in current.

• Overvoltage: While resistors primarily limit current, extreme voltage spikes can also cause them to fail, especially if the voltage exceeds their dielectric strength.

• Physical Stress: Bending leads too sharply or dropping components can cause internal damage.

• Environmental Factors: Prolonged exposure to high temperatures, humidity, or corrosive environments can degrade resistor materials over time.

Tips for safe replacement:

• Power Off: Always disconnect power from the circuit before attempting any repairs.

• Identify Correct Replacement: Ensure the new resistor has the correct resistance value, tolerance, and crucially, the appropriate power rating for the application.

• Proper Soldering: Use proper soldering techniques to ensure a good electrical connection and avoid damaging the new component or the PCB.

By understanding these common failure modes and troubleshooting techniques, you can effectively diagnose and repair issues related to resistors, keeping your electronic devices functioning optimally.

8. Conclusion: The Power of Resistance

As we’ve explored the multifaceted world of resistors, it becomes abundantly clear that these seemingly simple components are anything but. From their fundamental role in current limiting and voltage division to their crucial functions in timing circuits and pull-up/pull-down networks, resistors are the silent workhorses of electronics. They protect sensitive components, ensure stable operation, and enable precise control over electrical signals. We’ve delved into their diverse types, from the common carbon film to specialized precision and power resistors, and understood the importance of selecting the right one for the job. Mastering calculations for series and parallel configurations, and even deciphering the classic color codes, are essential skills that underscore the resistor’s foundational importance.

Ultimately, the resistor stands as an essential, foundational component in virtually every electronic device. Its ability to control and manage the flow of electricity is what allows complex circuits to function reliably and safely. So, the next time you use any electronic gadget, take a moment to appreciate the humble resistor, quietly performing its vital task, enabling the technological marvels that define our modern world. Have a question about a specific resistor application or a tricky circuit you’re working on? Leave a comment below! We’d love to hear from you and help unravel the mysteries of resistance.

9. FAQ Section

Q1: What is the main purpose of a resistor?

The main purpose of a resistor is to control the flow of electric current in a circuit. It achieves this by impeding the current, converting electrical energy into heat. Resistors are used for tasks like limiting current to protect components (e.g., LEDs), dividing voltage to create lower power rails for different parts of a circuit, and setting timing in circuits when combined with capacitors.

Q2: How do I choose a resistor for an LED?

To choose a resistor for an LED, you need three key pieces of information: the LED’s forward voltage (Vf), the LED’s desired forward current (If), and your power supply voltage (Vs). Once you have these, you can use Ohm’s Law to calculate the required resistance (R) with the formula: R = (Vs - Vf) / If. For example, if Vs=5V, Vf=2V, and If=0.02A (20mA), then R = (5-2)/0.02 = 150 Ohms.

Q3: What’s the difference between resistors in series and parallel?

When resistors are connected in series, they are placed end-to-end, forming a single path for the current. Their resistances simply add up, meaning the total resistance of the circuit increases (R_total = R1 + R2 + …). In contrast, when resistors are connected in parallel, they are connected across the same two points, providing multiple paths for the current. The total resistance in a parallel configuration is always lower than the smallest individual resistor, calculated using the reciprocal formula (1/R_total = 1/R1 + 1/R2 + …).

Q4: How do I read the colored bands on a resistor?

The colored bands on a resistor represent a code for its resistance value and tolerance. Typically, the first two or three bands are significant digits, the next band is a multiplier (indicating how many zeros to add), and the last band indicates the tolerance (accuracy). For instance, brown-black-red-gold would be 1-0-x100-5%, or 1000 Ohms (1kΩ) with a 5% tolerance. While memorizing the color code is a fundamental skill, many online

calculators are available to help you quickly decode resistor values.

Q5: What are SMD resistors and why are they commonly used?

SMD stands for Surface-Mount Device. SMD resistors are miniature, rectangular resistors designed to be mounted directly onto the surface of a printed circuit board (PCB) rather than having leads that pass through holes. They are commonly used because of their extremely compact size, which allows for much denser circuit designs, crucial for modern, miniaturized electronic devices like smartphones and laptops. They also offer better high-frequency performance due to their minimal lead inductance and capacitance, making them ideal for high-speed digital and RF applications.
