Everything You Need to Know About Fuse Resistors

The Fundamentals of Fuse Resistors

What is a Fuse Resistor?

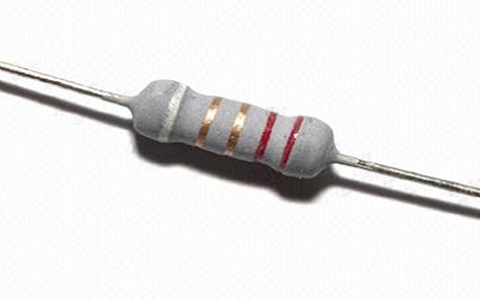

Figure 1: A typical fuse resistor with ceramic housing and distinctive markings

A fuse resistor, also known as a fusible resistor, represents one of the most ingenious solutions in electronic component design. This unique component serves a dual purpose: it functions as a resistor under normal operating conditions and transforms into a protective fuse when an overcurrent situation occurs. This hybrid nature allows it to both limit current flow and protect circuits from potentially catastrophic damage.

The concept behind fuse resistors emerged from the need to simplify circuit designs while maintaining robust protection mechanisms. Traditional circuits required separate resistors and fuses, increasing component count, board space, and overall system complexity. Fuse resistors elegantly solve this challenge by combining both functions into a single, cost-effective package.

A Dual-Function Component

In normal circuit operation, a fuse resistor behaves exactly like a standard resistor, providing a specific amount of resistance to control current flow and voltage drop. However, its true value becomes apparent during fault conditions. When current exceeds a predetermined safe level, the resistor's internal structure is designed to fail in a controlled and predictable manner.

"The beauty of fuse resistors lies in their ability to provide both current limiting and overcurrent protection simultaneously, eliminating the need for separate components while enhancing circuit reliability." - Electronic Design Engineering Principles

This fail-safe mechanism occurs through carefully engineered thermal characteristics. As excessive current flows through the resistive element, it generates heat beyond the component's thermal capacity. The resistive material—typically a specially formulated wire or film—reaches its melting point and vaporizes or burns away, creating an open circuit that immediately stops current flow.

Key Characteristics and Construction

Fuse resistors are typically housed in ceramic enclosures that provide excellent thermal management and electrical insulation. This ceramic construction serves multiple purposes: it withstands high temperatures during normal operation, contains any debris when the component fuses, and provides clear visual indication of component failure.

The physical appearance of fuse resistors is deliberately distinctive to aid in identification and prevent accidental substitution with standard resistors. They often feature unique color coding or markings that differentiate them from conventional components. Their schematic symbol combines elements of both resistor and fuse symbols, clearly indicating their dual functionality to circuit designers.

Modern fuse resistors come in various construction types, including wire-wound and metal film variants. Wire-wound types typically offer higher power handling capabilities and more precise fusing characteristics, while metal film versions provide better high-frequency performance and smaller form factors.

How Does a Fuse Resistor Work?

Video: Comprehensive explanation of fusible resistors and their characteristics

The Working Principle Under Normal Conditions

During normal operation, a fuse resistor functions identically to a conventional resistor, following Ohm's Law (V = IR). It provides a predetermined resistance value that regulates current flow and creates a specific voltage drop across its terminals. The component operates within its specified power rating, dissipating heat through its ceramic housing to the surrounding environment.

The resistive element is carefully designed to handle the expected current levels while maintaining stable resistance characteristics over time and temperature variations. Quality fuse resistors exhibit excellent thermal stability and minimal resistance drift during their operational lifetime.

The Fusing Mechanism: Responding to Overcurrent

When a fault condition occurs—such as a short circuit, component failure, or voltage spike—the current through the fuse resistor increases dramatically beyond its safe operating range. This triggers a carefully orchestrated failure sequence designed to protect the circuit.

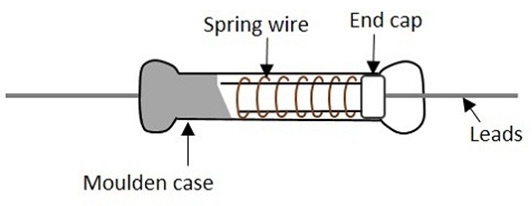

Figure 2: Internal construction of a fuse resistor showing the spring wire mechanism

As excessive current flows through the resistive element, it generates heat at a rate proportional to I²R (where I is current and R is resistance). When this heat generation exceeds the component's thermal dissipation capacity, the temperature rises rapidly. The resistive material—whether wire or film—reaches its melting point and begins to vaporize or burn away.

This process creates an irreversible open circuit, immediately stopping current flow and protecting downstream components. The ceramic housing contains any debris or gases produced during the fusing process, preventing damage to surrounding components and maintaining circuit board integrity.

The fusing characteristics are precisely engineered during manufacturing. Factors such as wire gauge, material composition, and thermal design determine the exact current level and time duration required to trigger the protective action. This ensures predictable and reliable operation across different environmental conditions.

Fuse Resistor vs. Regular Resistor vs. Fuse: Critical Differences

Understanding the distinctions between these three component types is crucial for proper circuit design and component selection. While they may appear similar or serve related functions, each has unique characteristics that make them suitable for specific applications.

Comprehensive Feature Comparison

When to Choose a Fuse Resistor

Fuse resistors represent an optimal choice when circuit design priorities include space efficiency, component count reduction, and cost optimization. They excel in applications where you need to simultaneously provide inrush current limiting and overcurrent protection at a circuit's input stage.

Design Tip: Consider fuse resistors when your circuit requires both current limiting and protection functions, especially in space-constrained applications like power supplies, battery chargers, and automotive electronics.

The decision to use fuse resistors should also consider the specific application requirements. For high-reliability applications or those requiring certified safety compliance, traditional fuse and resistor combinations might be preferred despite their higher component count and space requirements.

Common Applications of Fuse Resistors

Fuse resistors have found widespread adoption across numerous industries and applications due to their unique combination of functionality, reliability, and cost-effectiveness. Their versatility makes them indispensable components in modern electronic systems.

Consumer and Automotive Electronics

In consumer electronics, fuse resistors are frequently employed in power supply units where they provide essential protection against input surges and short circuits. Switch-mode power supplies (SMPS) commonly use fuse resistors in their input stages to limit inrush current while providing backup protection if the primary fuse fails.

Battery chargers represent another significant application area. Here, fuse resistors serve dual roles: they limit charging current during startup and provide protection against battery short circuits or reverse polarity connections. This dual functionality is particularly valuable in portable device chargers where space and component count are critical design constraints.

Home appliances extensively utilize fuse resistors in their control circuits. Microwave ovens, washing machines, and dishwashers incorporate these components to protect sensitive control electronics from power line disturbances and internal faults. The automotive industry has embraced fuse resistors for protecting motor controller systems, electronic control units (ECUs), and other sensitive electronics from the harsh electrical environment present in vehicles.

Industrial and Power Systems

Industrial applications demand robust protection mechanisms, making fuse resistors ideal for power tools, motor drives, and industrial control systems. In these environments, they protect against the occasional short-circuit conditions that can occur due to mechanical wear, environmental contamination, or component aging.

Power conversion systems, including rectifiers and inverters, rely on fuse resistors to provide input surge protection and current limiting. These applications particularly benefit from the inrush current limiting capability, which reduces stress on upstream components and improves overall system reliability.

For comprehensive electronic component sourcing and technical specifications, engineers often rely on platforms like Utmel, which provides detailed datasheets and availability information for various fuse resistor types and manufacturers.

How to Select the Right Fuse Resistor: A Specification Guide

Selecting the appropriate fuse resistor requires careful consideration of multiple parameters to ensure both proper circuit function and reliable protection. The selection process involves analyzing normal operating conditions, fault scenarios, and environmental requirements.

Critical Selection Parameters

Resistance Value (Ω): This fundamental parameter determines the component's behavior during normal operation. The resistance value directly affects current limiting capability and voltage drop across the component. Selection should consider the maximum allowable voltage drop while maintaining adequate current limiting for the specific application.

Power Rating (W): The power rating indicates the component's ability to dissipate heat during continuous operation. Fuse resistors typically have lower power ratings compared to standard resistors of similar size, as they are designed to fail under excessive power conditions. Proper derating (typically 50-70% of maximum rating) ensures reliable operation and predictable fusing characteristics.

Figure 3: Technical specifications and rating parameters for fuse resistors

Fusing Current: This critical parameter defines the current level at which the resistor will reliably open the circuit. The fusing current should be set above the maximum normal operating current but below the level that could damage protected components. Typical fusing currents range from 2-10 times the normal operating current, depending on the application requirements.

Fusing Time: The time required for the component to open under specific overload conditions is crucial for coordination with other protective devices. Fast-acting fuse resistors respond within milliseconds, while slow-blow types may take several seconds. The selection depends on the fault clearing requirements and the thermal characteristics of protected components.

Voltage Rating: This parameter specifies the maximum voltage the component can safely interrupt without arcing or flashover. The voltage rating must exceed the circuit's maximum operating voltage with appropriate safety margins. Higher voltage ratings typically require larger component sizes and may affect other performance parameters.

Environmental and Application Considerations

Operating temperature range significantly affects fuse resistor performance and reliability. High ambient temperatures reduce the effective fusing current, while low temperatures may increase it. Temperature coefficient specifications help predict performance variations across the expected operating range.

Humidity, vibration, and shock requirements must also be considered, particularly for automotive and industrial applications. Some fuse resistors feature enhanced environmental protection through specialized coatings or hermetic packaging.

Safety Standards and Reliability Considerations

While fuse resistors provide valuable protection functions, their safety certification status differs significantly from traditional fuses. Understanding these differences is crucial for applications where safety compliance is mandatory or liability concerns are paramount.

Certification and Standards Compliance

Unlike standard fuses, which must adhere to rigorous safety standards such as UL (Underwriters Laboratories), IEC (International Electrotechnical Commission), and other national standards, fusible resistors may not be held to the same level of certification requirements. This distinction becomes particularly important in applications involving higher power levels or safety-critical systems.

"For applications where safety is paramount, especially in higher wattage devices above 15W, a certified fuse and NTC thermistor combination is often the recommended choice for overcurrent and inrush protection." - Safety Engineering Guidelines

The lack of standardized safety certification for fuse resistors stems from their dual-function nature and the wide variety of construction methods used by different manufacturers. This variability makes it challenging to establish universal safety standards that apply across all product types and applications.

Reliability and Failure Mode Analysis

The primary and intended failure mode of a fuse resistor is to fail open, safely breaking the circuit when overcurrent conditions occur. However, like any electronic component, fuse resistors can experience other failure modes that may affect circuit performance or safety.

Resistance drift represents a common aging mechanism where the component's resistance value changes over time due to thermal cycling, environmental stress, or repeated small surges. This drift can affect circuit performance and may alter the fusing characteristics, potentially compromising protection effectiveness.

Intermittent failures, while rare, can occur due to mechanical stress, thermal expansion, or manufacturing defects. These failures may manifest as temporary open circuits or resistance variations that can be difficult to diagnose and may cause unpredictable system behavior.

To mitigate these risks, many designers implement redundant protection schemes or use fuse resistors in conjunction with other protective devices. This approach provides multiple layers of protection and reduces the likelihood of single-point failures compromising system safety.

Testing and Troubleshooting Fuse Resistors

Proper testing procedures are essential for verifying fuse resistor functionality and diagnosing circuit problems. Understanding how to test these components correctly can prevent misdiagnosis and ensure reliable system operation.

Basic Resistance Testing

The most fundamental test involves measuring the component's resistance using a digital multimeter. Set the meter to the appropriate resistance range and connect the test leads across the fuse resistor's terminals. A functional component should read close to its specified resistance value, typically within the stated tolerance (usually ±5% or ±10%).

If the component has fused, the multimeter will display an infinite resistance reading (often shown as "OL" for overload). This indicates that the resistive element has opened and the component has performed its protective function.

When testing in-circuit, be aware that parallel paths through other components may affect the reading. For accurate measurements, it's often necessary to remove one end of the fuse resistor from the circuit or power down the system and discharge any capacitors.

Advanced Testing Techniques

For critical applications or when developing new designs, more sophisticated testing may be required. Thermal imaging can reveal hot spots or uneven heating patterns that might indicate impending failure or manufacturing defects.

Controlled overcurrent testing can verify fusing characteristics, but this should only be performed by qualified personnel using appropriate safety equipment. Such testing destroys the component and requires careful consideration of safety hazards including hot debris, toxic fumes, and electrical arcing.

Critical Safety Warning: Never replace a fusible resistor with a standard resistor. Standard resistors lack the controlled failure characteristics and may create fire hazards or fail to protect downstream components during fault conditions.

Future Trends and Innovations

The evolution of fuse resistor technology continues to be driven by demands for higher performance, smaller form factors, and enhanced reliability. Several emerging trends are shaping the future development of these critical components.

Miniaturization and Integration

As electronic devices become increasingly compact, there's growing demand for smaller fuse resistors that maintain or improve performance characteristics. Surface-mount technology (SMT) versions are becoming more prevalent, offering space savings and improved manufacturing efficiency.

Integration with other passive components represents another significant trend. Manufacturers are developing hybrid components that combine fuse resistors with capacitors, inductors, or other protective elements in single packages, further reducing component count and board space requirements.

Smart Protection Features

Advanced fuse resistors incorporating smart features are emerging for high-end applications. These components may include built-in temperature monitoring, current sensing, or even wireless communication capabilities that provide real-time status information to system controllers.

Resettable fuse resistor technologies are under development, potentially offering the protection benefits of traditional fuse resistors while eliminating the need for component replacement after fault conditions. However, these technologies must overcome significant technical challenges related to reliability and safety certification.

For the latest innovations and product developments in fuse resistor technology, engineers can explore comprehensive component databases and supplier networks through platforms like Utmel, which provide access to cutting-edge components from leading manufacturers worldwide.

Conclusion

Fuse resistors represent a remarkable engineering achievement that elegantly combines current limiting and overcurrent protection in a single, cost-effective component. Their unique dual functionality makes them invaluable for modern electronic systems where space, cost, and reliability are critical design considerations.

Understanding the fundamental principles, selection criteria, and application considerations for fuse resistors enables engineers to make informed decisions about their use in electronic designs. While they may not be suitable for all applications—particularly those requiring certified safety compliance—they offer significant advantages in many common scenarios.

As electronic systems continue to evolve toward greater complexity and miniaturization, fuse resistors will undoubtedly play an increasingly important role in providing reliable, space-efficient protection solutions. Their continued development and refinement will help ensure the safety and reliability of the electronic devices that have become integral to modern life.

For engineers and designers working with fuse resistors, staying informed about the latest developments, best practices, and safety considerations is essential for creating robust, reliable electronic systems that meet both performance and safety requirements.
