Designing with AD9850: Datasheet, Pinout, and Sine Wave Synthesis Guide

Executive Summary: What is the AD9850?

The AD9850 is a highly integrated Direct Digital Synthesizer (DDS) designed for generating accurate, frequency-agile analog sine waves and square waves in telecommunications and test equipment. It combines a 32-bit phase accumulator, a high-speed 10-bit DAC, and a dedicated comparator to provide a complete digitally programmable frequency synthesizer on a single chip.

• Market Position: A legacy industry standard known for its reliability and wide adoption in the hobbyist and entry-level RF engineering markets.

• Top Features: 125 MHz maximum clock rate, 32-bit frequency tuning word (0.0291 Hz resolution), and dual 3.3 V / 5 V operation.

• Primary Audience: Ideal for RF design engineers, Ham radio enthusiasts, and developers creating signal generators or clock recovery circuits.

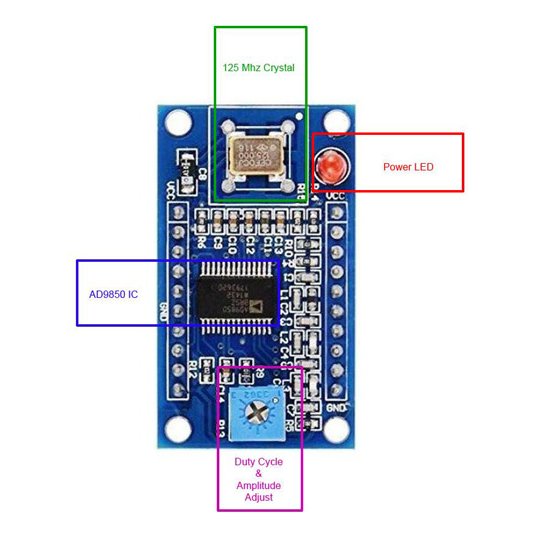

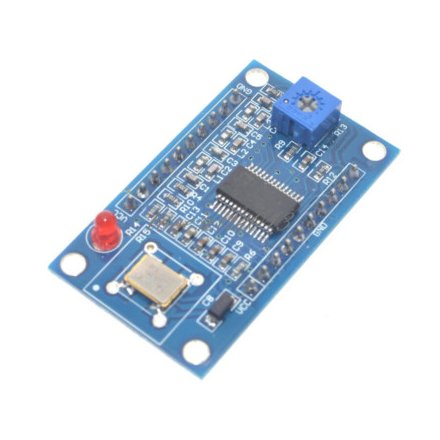

• Supply Status: Generally Active; widely available through major distributors and as pre-assembled modules.

1. Technical Specifications & Performance Analysis

1.1 Core Architecture (DDS Engine)

The AD9850 utilizes a 32-bit phase accumulator to achieve ultra-fine frequency tuning. By using a lookup table to convert phase information into a digital sine wave, which is then processed by an internal 10-bit DAC, it can generate signals with high spectral purity. This architecture is chosen for its ability to switch frequencies almost instantaneously without the settling time issues associated with traditional PLL (Phase-Locked Loop) designs.

1.2 Key Electrical Characteristics

The device is optimized for performance across a wide voltage range, though thermal considerations vary by supply:

• Supply Voltage: Supports 3.3 V or 5.0 V single-supply operation.

• Power Consumption: Approximately 380 mW when operating at 125 MHz with a 5 V supply.

• Tuning Resolution: 0.0291 Hz resolution when using a 125 MHz reference clock.

• SFDR (Spurious-Free Dynamic Range): Greater than 50 dB at a 40 MHz analog output.

• Operating Temperature: Industrial grade performance from -40°C to +85°C.

1.3 Interfaces and Connectivity

The AD9850 offers flexibility for various microcontroller architectures (such as Arduino, STM32, or ESP32):

- Parallel Loading: An 8-bit bus for high-speed frequency updates.

- Serial Loading: A 1-bit serial interface to minimize I/O pin usage on smaller MCUs.

- Control Pins: Includes Word Load Clock (W_CLK) and Frequency Update (FQ_UD) pins to latch new data.

2. Pinout, Package, and Configuration

2.1 Pin Configuration Guide

The AD9850 is typically housed in a 28-lead SSOP package. - VCC/GND: Multiple power and ground pins to ensure low-noise performance. - D0–D7: 8-bit data bus for parallel programming (D7 acts as the Serial Input). - W_CLK / FQ_UD: Timing pins for clocking in the 40-bit control word. - IOUT / IOUTB: Complementary current outputs from the internal DAC. - VINP / VINN: Inputs for the internal high-speed comparator to generate square waves.

2.2 Naming Convention & Ordering Codes

Understanding the Part Numbers:- AD9850BRS: Standard 28-lead SSOP package. - AD9850BRSZ: The "Z" suffix indicates a RoHS-compliant (Lead-Free) part, which is the standard for modern BOM compliance.

2.3 Available Packages

Note: While the SSOP package is small, it is still hand-soldering friendly for experienced developers using fine-tip irons or hot air.

3. Design & Integration Guide (For Engineers & Makers)

Pro Tip: Always verify pin compatibility before migrating from older series. The AD9850 and AD9851 are similar but have different clock multiplier settings.

3.1 Hardware Implementation

• Bypass Capacitors: Use 0.1 µF ceramic capacitors as close as possible to every VCC pin to minimize digital switching noise from entering the analog output.

• PCB Layout: A solid ground plane is mandatory. Keep analog output traces (IOUT) short and away from digital control lines to prevent crosstalk.

• Low-Pass Filtering: To remove the images produced by the sampling process, an external Elliptic or Chebyshev low-pass filter (typically 7th order) is recommended at the DAC output.

3.2 Common Design Challenges

• Issue: Output Amplitude Roll-off -> Fix: The output follows a $sinc(x)$ function. For wideband applications, use an external amplifier with a positive gain slope or compensate for the loss in the downstream software/analog stage.

• Issue: Heat Dissipation -> Fix: At 5V/125MHz, the chip can exceed 50°C. Ensure a large copper pour on the PCB for heat sinking or switch to 3.3V operation to reduce power draw.

• Issue: Square Wave Jitter -> Fix: The internal comparator is sensitive. Ensure the sine wave is filtered before being fed back into the comparator inputs.

4. Typical Applications & Use Cases

📺 Video Recommendation: AD9850 Guide

4.1 Real-World Example: Ham Radio VFO

The AD9850 is a staple in the amateur radio community. By interfacing it with an Arduino, designers create an Agile Local Oscillator (VFO). The 32-bit resolution allows a radio operator to tune through the HF bands with sub-Hertz precision, providing stability that old LC-based oscillators cannot match.

4.2 Other Applications

• Radar Simulation: Generating phase-modulated pulses.

• Test Equipment: Low-cost benchtop function generators.

• Clock Recovery: Generating stable reference clocks for synchronous systems.

5. Alternatives and Cross-Reference Guide

If the AD9850 does not meet your specific design constraints, consider these alternatives:

• AD9851 (Direct Upgrade): Features an internal 6x clock multiplier, allowing for a 180 MHz clock and higher output frequencies with the same pinout.

• AD9833 (Low Power): Better suited for battery-operated devices; much lower power but limited to 25 MHz.

• Si5351 (Clock Generator): If you only need square waves (I2C controlled), the Si5351 is more cost-effective and provides three independent outputs.

• ICL8038 (Analog Legacy): Only for very low-frequency, non-precision analog hobbyist use.

6. Frequently Asked Questions (FAQ)

• Q: What is the maximum practical output frequency of the AD9850?

• A: While the clock is 125 MHz, the Nyquist limit is 62.5 MHz. For a clean signal, the practical limit is usually 40–50 MHz.

• Q: Can the AD9850 be used with a 3.3V microcontroller?

• A: Yes, the AD9850 supports 3.3V logic levels, making it directly compatible with modern MCUs like the ESP32.

• Q: How do I program the AD9850 frequency?

• A: You must send a 40-bit control word (32 bits for frequency, 5 bits for phase, 1 for power down, and 2 for control) via the serial or parallel interface.

• Q: Is the AD9850 suitable for battery-operated devices?

• A: It is moderate in power. For ultra-low-power applications, the AD9833 is usually a better choice.
