DS26LV32ATM

DS26LV32ATM

Texas Instruments

16 Terminations 3.3V 16 Pin DS26LV32 Receivers 0/4 Drivers/Receivers 4 Functions

Purchase Guide

16 Terminations 3.3V 16 Pin DS26LV32 Receivers 0/4 Drivers/Receivers 4 Functions

The DS26LV32ATM is a high-speed quad differential CMOS receiver that complies with both TIA/EIA-422-B and ITU-T V.11 standards. The article will introduce the basic details of the device.

This short video introduces the details of DS26LV32ATM.

Reliable DS26LV32ATM Supplier and DS26LV32ATMX/NOPB Distributor in China - Rantle East Electronic

DS26LV32ATM Description

The DS26LV32ATM is a high-speed quad differential CMOS receiver that complies with both TIA/EIA-422-B and ITU-T V.11 standards. The CMOS DS26LV32ATM has a low static ICC of 9 mA, making it excellent for battery-powered and power-constrained applications. The TRI-STATE enables EN and EN* enable the device to be active High or active Low. All four receivers share the enables.


DS26LV32ATM Pinout


DS26LV32ATM CAD Model

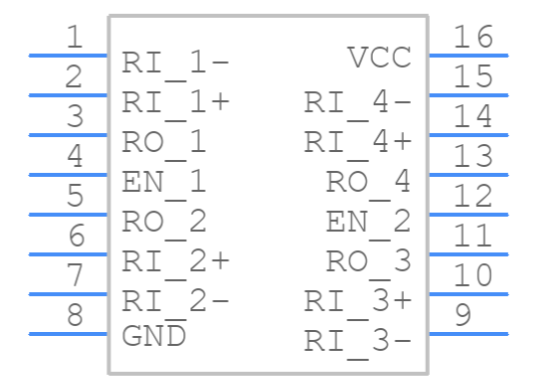

Symbol

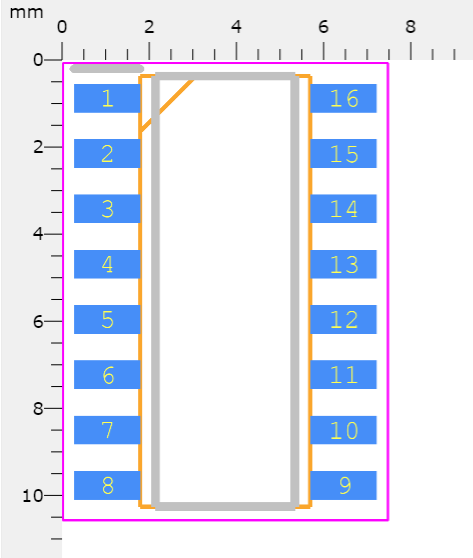

Footprint

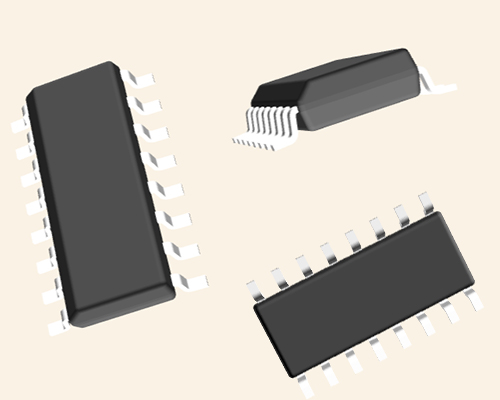

3D Model

3d model.jpg


DS26LV32ATM Features

• Low Power CMOS Design (30 mW typical)

• Interoperable with Existing 5V RS-422 Networks

• Industrial and Military Temperature Range

• Conforms to TIA/EIA-422-B (RS-422) and ITU-TV.11 Recommendation

• 3.3V Operation

• ±7V Common Mode Range @ VID = 3V

• ±10V Common Mode Range @ VID = 0.2V

• Receiver OPEN Input Failsafe Feature

• Guaranteed AC Parameter:

– Maximum Receiver Skew: 4 ns

– Maximum Transition Time: 10 ns

• Pin Compatible with DS26C32AT

• 32 MHz Toggle Frequency

• > 6.5k ESD Tolerance (HBM)


DS26LV32ATM Recommended Operating Conditions


MinTypMaxUnits
Supply Voltage (Vcc)3.03.33.6V
Operating Free Air Temperature Range (Ta)
DS26LV32AT-40+25+85°C
DS26LV32AW-55+25+125°C


DS26LV32ATM Equivalents

Part NumberDescriptionManufacturer
DS26LV32ATMXDRIVERS AND INTERFACES3V Enhanced CMOS Quad Differential Line Receiver 16-SOIC -40 to 85Texas Instruments
AM26LV32IDDRIVERS AND INTERFACESLow-Voltage High-Speed Quadruple Differential Line Receiver 16-SOIC -40 to 85Texas Instruments
AM26LV32CDDRIVERS AND INTERFACESLow-Voltage High-Speed Quadruple Differential Line Receiver 16-SOIC 0 to 70Texas Instruments
AM26LV32IDRG4DRIVERS AND INTERFACESQUAD LINE RECEIVER, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16Texas Instruments
DS34LV86TMX/NOPBDRIVERS AND INTERFACES3V Enhanced CMOS Quad Differential Line Receiver 16-SOIC -40 to 85Texas Instruments
AM26LV32IDRE4DRIVERS AND INTERFACESQUAD LINE RECEIVER, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16Texas Instruments
AM26LV32INSE4DRIVERS AND INTERFACESQUAD LINE RECEIVER, PDSO16, GREEN, PLASTIC, SOP-16Texas Instruments
AM26LV32INSG4DRIVERS AND INTERFACESLow-Voltage High-Speed Quadruple Differential Line Receiver 16-SO -40 to 85Texas Instruments
DS26LV32ATMDRIVERS AND INTERFACESIC QUAD LINE RECEIVER, PDSO16, PLASTIC, SOIC-16, Line Driver or ReceiverNational Semiconductor Corporation
AM26LV32INSRE4DRIVERS AND INTERFACESQUAD LINE RECEIVER, PDSO16, GREEN, PLASTIC, SOP-16Texas Instruments


Specifications

Texas Instruments DS26LV32ATM technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments DS26LV32ATM.
  • Type
    Parameter
  • Mount

    In electronic components, the term "Mount" typically refers to the method or process of physically attaching or fixing a component onto a circuit board or other electronic device. This can involve soldering, adhesive bonding, or other techniques to secure the component in place. The mounting process is crucial for ensuring proper electrical connections and mechanical stability within the electronic system. Different components may have specific mounting requirements based on their size, shape, and function, and manufacturers provide guidelines for proper mounting procedures to ensure optimal performance and reliability of the electronic device.

    Surface Mount
  • Mounting Type

    The "Mounting Type" in electronic components refers to the method used to attach or connect a component to a circuit board or other substrate, such as through-hole, surface-mount, or panel mount.

    Surface Mount
  • Package / Case

    refers to the protective housing that encases an electronic component, providing mechanical support, electrical connections, and thermal management.

    16-SOIC (0.154, 3.90mm Width)
  • Number of Pins
    16
  • Weight
    547.485991mg
  • Operating Temperature

    The operating temperature is the range of ambient temperature within which a power supply, or any other electrical equipment, operate in. This ranges from a minimum operating temperature, to a peak or maximum operating temperature, outside which, the power supply may fail.

    -40°C~85°C
  • Packaging

    Semiconductor package is a carrier / shell used to contain and cover one or more semiconductor components or integrated circuits. The material of the shell can be metal, plastic, glass or ceramic.

    Tube
  • JESD-609 Code

    The "JESD-609 Code" in electronic components refers to a standardized marking code that indicates the lead-free solder composition and finish of electronic components for compliance with environmental regulations.

    e0
  • Part Status

    Parts can have many statuses as they progress through the configuration, analysis, review, and approval stages.

    Obsolete
  • Moisture Sensitivity Level (MSL)

    Moisture Sensitivity Level (MSL) is a standardized rating that indicates the susceptibility of electronic components, particularly semiconductors, to moisture-induced damage during storage and the soldering process, defining the allowable exposure time to ambient conditions before they require special handling or baking to prevent failures

    1 (Unlimited)
  • Number of Terminations
    16
  • ECCN Code

    An ECCN (Export Control Classification Number) is an alphanumeric code used by the U.S. Bureau of Industry and Security to identify and categorize electronic components and other dual-use items that may require an export license based on their technical characteristics and potential for military use.

    EAR99
  • Type
    Receiver
  • Terminal Finish

    Terminal Finish refers to the surface treatment applied to the terminals or leads of electronic components to enhance their performance and longevity. It can improve solderability, corrosion resistance, and overall reliability of the connection in electronic assemblies. Common finishes include nickel, gold, and tin, each possessing distinct properties suitable for various applications. The choice of terminal finish can significantly impact the durability and effectiveness of electronic devices.

    Tin/Lead (Sn/Pb)
  • Voltage - Supply

    Voltage - Supply refers to the range of voltage levels that an electronic component or circuit is designed to operate with. It indicates the minimum and maximum supply voltage that can be applied for the device to function properly. Providing supply voltages outside this range can lead to malfunction, damage, or reduced performance. This parameter is critical for ensuring compatibility between different components in a circuit.

    3V~3.6V
  • Terminal Position

    In electronic components, the term "Terminal Position" refers to the physical location of the connection points on the component where external electrical connections can be made. These connection points, known as terminals, are typically used to attach wires, leads, or other components to the main body of the electronic component. The terminal position is important for ensuring proper connectivity and functionality of the component within a circuit. It is often specified in technical datasheets or component specifications to help designers and engineers understand how to properly integrate the component into their circuit designs.

    DUAL
  • Terminal Form

    Occurring at or forming the end of a series, succession, or the like; closing; concluding.

    GULL WING
  • Peak Reflow Temperature (Cel)

    Peak Reflow Temperature (Cel) is a parameter that specifies the maximum temperature at which an electronic component can be exposed during the reflow soldering process. Reflow soldering is a common method used to attach electronic components to a circuit board. The Peak Reflow Temperature is crucial because it ensures that the component is not damaged or degraded during the soldering process. Exceeding the specified Peak Reflow Temperature can lead to issues such as component failure, reduced performance, or even permanent damage to the component. It is important for manufacturers and assemblers to adhere to the recommended Peak Reflow Temperature to ensure the reliability and functionality of the electronic components.

    235
  • Number of Functions
    4
  • Supply Voltage

    Supply voltage refers to the electrical potential difference provided to an electronic component or circuit. It is crucial for the proper operation of devices, as it powers their functions and determines performance characteristics. The supply voltage must be within specified limits to ensure reliability and prevent damage to components. Different electronic devices have specific supply voltage requirements, which can vary widely depending on their design and intended application.

    3.3V
  • Terminal Pitch

    The center distance from one pole to the next.

    1.27mm
  • Current Rating

    Current rating is the maximum current that a fuse will carry for an indefinite period without too much deterioration of the fuse element.

    25A
  • Time@Peak Reflow Temperature-Max (s)

    Time@Peak Reflow Temperature-Max (s) refers to the maximum duration that an electronic component can be exposed to the peak reflow temperature during the soldering process, which is crucial for ensuring reliable solder joint formation without damaging the component.

    30
  • Base Part Number

    The "Base Part Number" (BPN) in electronic components serves a similar purpose to the "Base Product Number." It refers to the primary identifier for a component that captures the essential characteristics shared by a group of similar components. The BPN provides a fundamental way to reference a family or series of components without specifying all the variations and specific details.

    DS26LV32
  • Pin Count

    a count of all of the component leads (or pins)

    16
  • Operating Supply Voltage

    The voltage level by which an electrical system is designated and to which certain operating characteristics of the system are related.

    3.3V
  • Operating Supply Current

    Operating Supply Current, also known as supply current or quiescent current, is a crucial parameter in electronic components that indicates the amount of current required for the device to operate under normal conditions. It represents the current drawn by the component from the power supply while it is functioning. This parameter is important for determining the power consumption of the component and is typically specified in datasheets to help designers calculate the overall power requirements of their circuits. Understanding the operating supply current is essential for ensuring proper functionality and efficiency of electronic systems.

    15mA
  • Nominal Supply Current

    Nominal current is the same as the rated current. It is the current drawn by the motor while delivering rated mechanical output at its shaft.

    15mA
  • Max Supply Current

    Max Supply Current refers to the maximum amount of electrical current that a component can draw from its power supply under normal operating conditions. It is a critical parameter that ensures the component operates reliably without exceeding its thermal limits or damaging internal circuitry. Exceeding this current can lead to overheating, performance degradation, or failure of the component. Understanding this parameter is essential for designing circuits that provide adequate power while avoiding overload situations.

    15mA
  • Supply Type

    Supply Type in electronic components refers to the classification of power sources used to operate the component. It indicates whether the component requires DC or AC power, and if DC, specifies the voltage levels such as low, medium, or high. Different supply types can affect the performance, compatibility, and application of the component in electronic circuits. Understanding the supply type is crucial for proper component selection and integration into electronic designs.

    Single
  • Differential Output

    a differential output voltage in electronics is the difference between the values of two AC voltages, 180° out of phase, present at the output terminals of an amplifier when you apply a differential input voltage to the input terminals of an amplifier.

    NO
  • Protocol

    In electronic components, the parameter "Protocol" refers to a set of rules and standards that govern the communication between devices. It defines the format, timing, sequencing, and error checking methods for data exchange between different components or systems. Protocols ensure that devices can understand and interpret data correctly, enabling them to communicate effectively with each other. Common examples of protocols in electronics include USB, Ethernet, SPI, I2C, and Bluetooth, each with its own specifications for data transmission. Understanding and adhering to protocols is essential for ensuring compatibility and reliable communication between electronic devices.

    RS422, RS485
  • Input Characteristics

    In electronic components, "Input Characteristics" refer to the set of specifications that describe how the component behaves in response to signals or inputs applied to it. These characteristics typically include parameters such as input voltage, input current, input impedance, input capacitance, and input frequency range. Understanding the input characteristics of a component is crucial for designing circuits and systems, as it helps ensure compatibility and proper functioning. By analyzing these parameters, engineers can determine how the component will interact with the signals it receives and make informed decisions about its use in a particular application.

    DIFFERENTIAL SCHMITT TRIGGER
  • Number of Drivers/Receivers
    0/4
  • Receiver Hysteresis

    Receiver hysteresis is?commonly used to ensure glitch-free reception even when differential noise is present. This application report compares the noise immunity of the SN65HVD37 to similar devices available from competitors. Contents.

    35mV
  • Number of Drivers
    0
  • ESD Protection

    ESD protection, or Electrostatic Discharge protection, is a feature in electronic components designed to prevent damage caused by sudden electrostatic discharges. These discharges can occur when a person or object with an electric charge comes into contact with a sensitive electronic component, leading to a rapid flow of static electricity that can damage or destroy the component. ESD protection mechanisms in electronic components typically involve the use of special materials or circuitry that can safely dissipate or divert the excess charge away from the sensitive components, thus safeguarding the device from potential harm. Implementing effective ESD protection is crucial in ensuring the reliability and longevity of electronic devices, especially in environments where static electricity buildup is common, such as in manufacturing facilities or areas with low humidity.

    Yes
  • Receive Delay-Max

    Receive Delay-Max is a parameter in electronic components that refers to the maximum amount of time it takes for a device to receive and process incoming signals or data after they have been transmitted. This parameter is crucial in determining the overall performance and efficiency of the component, especially in applications where timing is critical. A lower Receive Delay-Max value indicates faster response times and better overall performance, while a higher value may result in delays and potential issues in data transmission. It is important to consider and optimize the Receive Delay-Max parameter when designing or selecting electronic components for specific applications to ensure reliable and efficient operation.

    35 ns
  • Number of Receivers
    4
  • Height
    1.45mm
  • Length
    9.91mm
  • Width
    3.91mm
  • Radiation Hardening

    Radiation hardening is the process of making electronic components and circuits resistant to damage or malfunction caused by high levels of ionizing radiation, especially for environments in outer space (especially beyond the low Earth orbit), around nuclear reactors and particle accelerators, or during nuclear accidents or nuclear warfare.

    No
  • RoHS Status

    RoHS means “Restriction of Certain Hazardous Substances” in the “Hazardous Substances Directive” in electrical and electronic equipment.

    Non-RoHS Compliant
  • Lead Free

    Lead Free is a term used to describe electronic components that do not contain lead as part of their composition. Lead is a toxic material that can have harmful effects on human health and the environment, so the electronics industry has been moving towards lead-free components to reduce these risks. Lead-free components are typically made using alternative materials such as silver, copper, and tin. Manufacturers must comply with regulations such as the Restriction of Hazardous Substances (RoHS) directive to ensure that their products are lead-free and environmentally friendly.

    Contains Lead
0 Similar Products Remaining

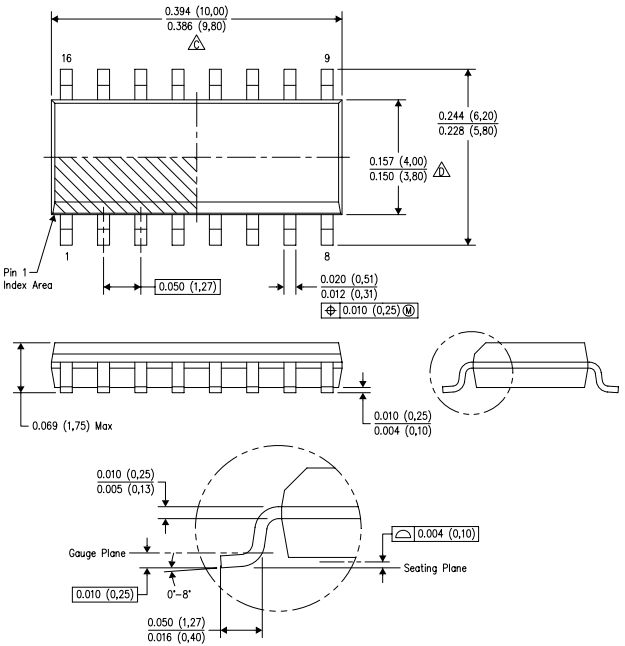

DS26LV32ATM Package


DS26LV32ATM Manufacturer

Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.


Trend Analysis

Parts with Similar Specs

The three parts on the right have similar specifications to Texas Instruments & DS26LV32ATM.

Datasheet PDF

Download datasheets and manufacturer documentation for Texas Instruments DS26LV32ATM.
Frequently Asked Questions

What is DS26LV32ATM?

The DS26LV32ATM is a high-speed quad differential CMOS receiver that complies with both TIA/EIA-422-B and ITU-T V.11 standards. The CMOS DS26LV32ATM has a low static ICC of 9 mA, making it excellent for battery-powered and power-constrained applications. The TRI-STATE enables EN and EN* enable the device to be active High or active Low. All four receivers share the enables.

What is the recommended operating temperature of the component?

-40°C~85°C.

What is the package of the device?

16-SOIC (0.154, 3.90mm Width).

What is the component’s number of pins?

16.
