L7805 VS LM259: What’s the difference?

The L7805 Voltage Regulator IC is a widely used voltage regulator that may be found in many electronic projects. For a changeable input voltage supply, it gives a constant +5V output voltage.

It is available in several IC packages, including TO-220, SOT-223, TO-263, and TO-3.

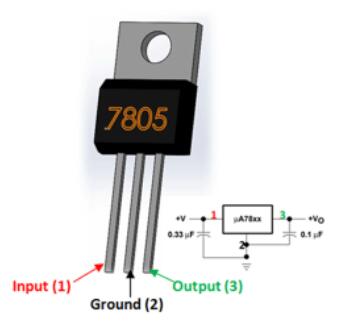

Here are the L7805 Pinout and Configurations

The LM2596 is a well-known step-down switching regulator IC. The adjustable version can accept input voltage ranging from 4.5V to 40V and convert it to variable voltage sourcing of up to 3A of continuous current. It is often used in power modules to power/control big loads due to its high current capabilities.

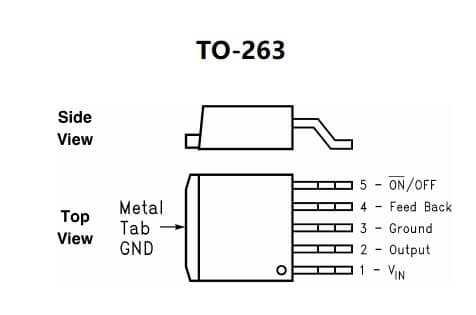

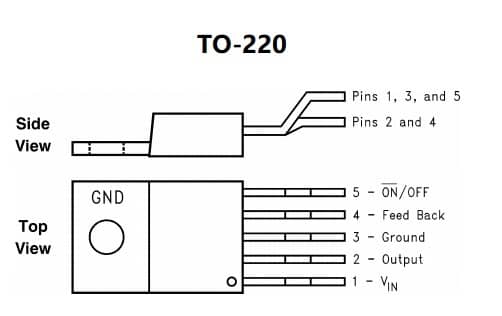

Here are the LM2596 Pinout and Configurations.

L7805 Features

• 5V Positive Voltage Regulator

• The minimum Input Voltage is 7V

• The maximum Input Voltage is 25V

• The operating current(IQ) is 5mA

• Internal Thermal Overload and Short circuit current limiting protection are available.

• Junction Temperature maximum 125 degrees Celsius

• Available in TO-220 and KTE package

LM2596 Features

• 3A Step Down Voltage Regulator IC

• Available as 3.3V regulator, 5V Regulator, 12V Regulator, and Variable regulator

• Input Supply Voltage: 4.5V to 40V

• Minimum Output Voltage: 3.16V

• Continuous Output Current: 3A

• Peak Output Current: 6.9A

• Switching Frequency: 150KHz

• Available in To-220 and To-263 Package

Or you can check the chart below

L7805 Applications

• Constant +5V output regulator to power microcontrollers and sensors in most of the projects

• Adjustable Output Regulator

• Current Limiter for certain applications

• Regulated Dual Supply

• Output Polarity-Reversal-Protection Circuit

LM2596 Applications

• Used in battery circuits since they have high efficiency

• Step-down Linear regulators

• Used in small SMPS circuits

• Battery Operated Applications

• Variable Voltage generators

• Miniature RPS Circuits

L7805 Block Diagram

LM2596 Block Diagram

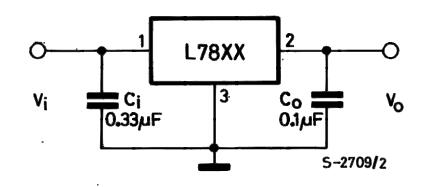

L7805 Circuit

LM2596 Circuit

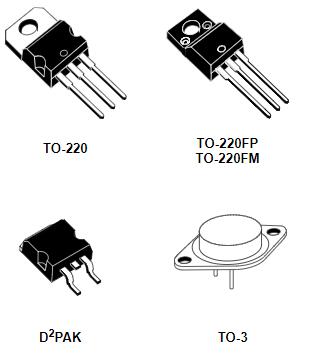

L7805 Package

LM2596 Package

L7805 Datasheet

LM2596 Datasheet

L7805 Manufacturer

STMicroelectronics (ST) group was established in June 1988 as a result of the merger of SGS Microelectronics of Italy and Thomson Of France. In May 1998 SGS-Thomson Microelectronics changed its name to STMicroelectronics Limited.

It is the world's largest manufacturer of dedicated analog chips and power conversion chips, the world's largest supplier of industrial semiconductors and set-top box chips, and a world leader in discrete components, mobile phone camera modules, and automotive integrated circuits.

LM2596 Manufacturer

Texas Instruments Inc. (TI) is an American technology company that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. Its headquarters are in Dallas, Texas, United States. TI is one of the top ten semiconductor companies worldwide, based on sales volume. Texas Instruments's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing (DLP) technology and education technology products including calculators, microcontrollers, and multi-core processors. To date, TI has more than 43,000 patents worldwide.
