TM1618 LED Driver--feature, datasheet, and circuit

Q: What is TM1618?

TM1618 is an LED Controller driven on a 1/5 to 1/8 duty factor. It can be used in Micro-computer Peripheral devices. It can also be used in household applications like microwave ovens, induction cookers, and water heaters.

Q: What’s the alternative of TM1618?

TM1618 can replace 74HC164, 4094, and other types of IC, typical applications: Electronic weighing device, Taiwan scale, induction cooker, electric water heater, air conditioner, microwave oven, washing machine, set-top box, DVB-S, DVB-T, DVB-C, network set-top box, digital TV set-top box, and other LED panel display drive.

Q: What’s the difference between TM1618 and 164, 4094 chips?

TM1618 and 164, 4094 chips comparative advantages: 1, The manufacturer specializes in VCD, DVD, DVB, induction cooker, electronic weighing device LED drive IC, professional strong, mature scheme. 2. TM1618 is dynamic scanning (420KHZ), and the display effect of dynamic scanning is particularly good, while 164 and 4094 are static scanning, and the microcontroller needs to continuously issue instructions, which can not reach the high-frequency scanning, so there will be blinking and missing scratches. 3. TM1618 takes up fewer programs of the microcontroller. 4. price cost advantage: TM1618 can directly drive digital screen, drive current is large; And 164 drive digital screen must be connected to an external diode.

Q: Can TM1618 be used in industrial area?

Yes, it can be used in Industry device meter display.

Q: Where is TM1618 made from?

It is made from TM(Shenzhen Titan Micro Elec).

Sophie

Published: 02 March 2022 | Last Updated: 02 March 2022

3842

TM1618

TM(Shenzhen Titan Micro Elec)

TM1618 datasheet pdf and Unclassified product details from TM(Shenzhen Titan Micro Elec) stock available at Utmel

Purchase Guide

TM1618 is a king of LED controllers. This passage is going to introduce TM1618 from the perspectives of features, datasheet, and more details. Please have a look.

This video is going to show an example of TM1618.

ACHub RGB led and tm1618 modules, Assetto Corsa arduino dash

Catalog

TM1618 Description

The TM1618 LED Controller has a duty factor of 1/5 to 1/8. To build a highly reliable peripheral device for a single chip microcomputer, 8 segment output lines, 4 grid output lines, 3 segment/grid output lines, one display memory, control circuit, and key scan circuit are all incorporated into a single chip. A three-line serial interface is used to feed serial data to the TM1618. The TM1618 pin assignments and application circuit are optimized for easy PCB Layout and cost savings. It is housed in an 18-pin DIP.

The TM1618 Features

• CMOS Technology

• Low Power Consumption

• Multiple Display Modes (5 segments, 7 Grid to 8 segments, 4 Grid)

• Key Scanning (5 x 1 Matrix)

• 8-Step Dimming Circuitry

• Serial Interface(CLK， STB， DIO)

• Oscillatory Manners: RC Oscillation （450KHz±5%）

• Available in 18-pin, DIP/SOP Package

TM1618 Application

1. The display screen driver for DVB, DVD, and home theatre

2. Status display for Kitchen households such as microwave oven, induction cooker, and water heater

3. Industry device meter display

4. Micro-computer Peripheral Device

5. VCR set

6. Combi set

TM1618 CAD model

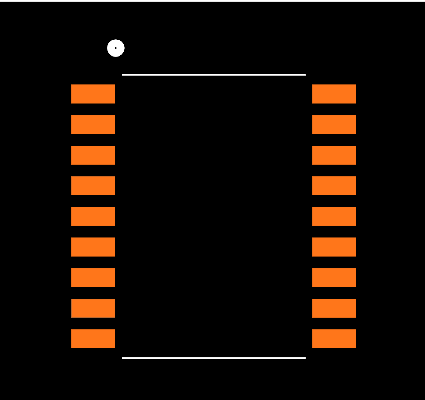

footprint:

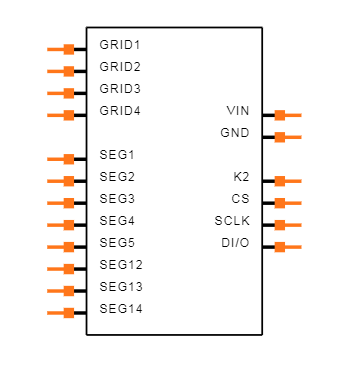

symbol:

Specifications

TM(Shenzhen Titan Micro Elec) TM1618 technical specifications, attributes, parameters and parts with similar specifications to TM(Shenzhen Titan Micro Elec) TM1618.

Type
Parameter
Package / Case
refers to the protective housing that encases an electronic component, providing mechanical support, electrical connections, and thermal management.
SOP-18_300mil
Packaging
Semiconductor package is a carrier / shell used to contain and cover one or more semiconductor components or integrated circuits. The material of the shell can be metal, plastic, glass or ceramic.
Tube-packed
RoHS Status
RoHS means “Restriction of Certain Hazardous Substances” in the “Hazardous Substances Directive” in electrical and electronic equipment.
RoHS Compliant

0 Similar Products Remaining

Trend Analysis

Parts with Similar Specs

TM1618 Manufacturer

Shenzhen titan micro mainly engaged in consumer and industrial-grade chip design, with perfect IC design flow and quality reliability assurance system, products include power management product line, detection, and measurement product lines, lighting and display driver product lines and other products, for home appliances, digital products, LED lighting, industrial control products the development and the application, owns " TM"," TA"," TC" brand. And with the domestic and international integrated circuit production, testing, packaging manufacturers to maintain good relations of cooperation, coordination, product development, market development, achieve a win-win situation.

TM1618 package

TM1618 is available in an 18-pin, DIP/SOP package. Here are the two pictures of them.

DIP Package


SOP package

TM1618 application circuit

Frequently Asked Questions

What is TM1618?

TM1618 is an LED Controller driven on a 1/5 to 1/8 duty factor. It can be used in Micro-computer Peripheral devices. It can also be used in household applications like microwave ovens, induction cookers, and water heaters.

What’s the alternative of TM1618?

TM1618 can replace 74HC164, 4094, and other types of IC, typical applications: Electronic weighing device, Taiwan scale, induction cooker, electric water heater, air conditioner, microwave oven, washing machine, set-top box, DVB-S, DVB-T, DVB-C, network set-top box, digital TV set-top box, and other LED panel display drive.

What’s the difference between TM1618 and 164, 4094 chips?

TM1618 and 164, 4094 chips comparative advantages:
1, The manufacturer specializes in VCD, DVD, DVB, induction cooker, electronic weighing device LED drive IC, professional strong, mature scheme.
2. TM1618 is dynamic scanning (420KHZ), and the display effect of dynamic scanning is particularly good, while 164 and 4094 are static scanning, and the microcontroller needs to continuously issue instructions, which can not reach the high-frequency scanning, so there will be blinking and missing scratches.
3. TM1618 takes up fewer programs of the microcontroller.
4. price cost advantage: TM1618 can directly drive digital screen, drive current is large; And 164 drive digital screen must be connected to an external diode.

Can TM1618 be used in industrial area?

Yes, it can be used in Industry device meter display.

Where is TM1618 made from?

It is made from TM(Shenzhen Titan Micro Elec).
