OPA2134 VS TL072[Video]: What are the differences between them?

The OPA2134 is an audio-specific low-noise, ultra-low-distortion operational amplifier. A true FET input stage is integrated to give increased sound quality and speed for great audio performance. This, combined with its high output drive capability and excellent DC performance, qualifies it for a wide range of demanding applications. The OPA134 also has a wide output swing, within 1 V of the rails, giving it plenty of headroom and making it ideal for use in any audio circuit.

Single and dual versions are available in 8-pin DIP and SO-8 surface-mount packages in traditional configurations. The quad is available in 14-pin DIP and SO-14 surface-mount packaging. All are rated for temperatures ranging from –40°C to 85°C. A SPICE macro model is available for design analysis.

The TL072 devices are the next-generation successors of the TL07x (TL071, TL072, and TL074) devices. Low offset (1 mV, usual), high slew rate (20 V/s), and common-mode input to the positive supply make these devices an excellent choice for cost-conscious applications. The TL07xH devices can be utilized in the harshest and demanding applications thanks to their high ESD (1.5 kV, HBM), inbuilt EMI and RF filters, and operation from –40°C to 125°C.

OPA2134 Features

• Superior Sound Quality

• Ultra-Low Distortion: 0.00008%

• Low Noise: 8 nV/√Hz

• True FET-Input: IB = 5pA

• High Speed:

   -Slew Rate: 20 V/µs

   -Bandwidth: 8 MHz

• High Open-Loop Gain: 120 dB (600 Ω)

• Wide Supply Range: ±2.5 V to ±18 V

• Single, Dual, and Quad Versions

TL072 Features

• High slew rate: 20 V/μs (TL07xH, typ)

• Low offset voltage: 1 mV (TL07xH, typ)

• Low offset voltage drift: 2 μV/°C

• Low power consumption: 940 μA/ch (TL07xH, typ)

• Wide common-mode and differential voltage ranges–Common-mode input voltage range includes VCC+

• Low input bias and offset currents

• Low noise: Vn = 18 nV/√Hz (typ) at f = 1 kHz

• Output short-circuit protection

• Low total harmonic distortion: 0.003% (typ)

• Wide supply voltage:±2.25 V to ±20 V, 4.5 V to 40 V

OPA2134 Pinout

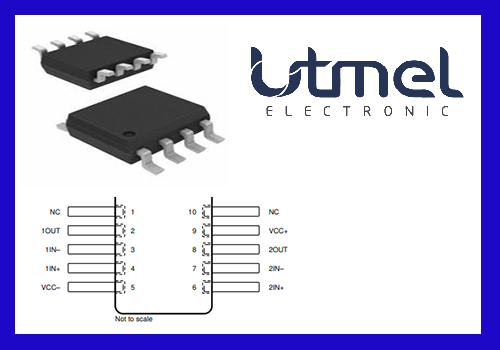

TL072CD Pinout

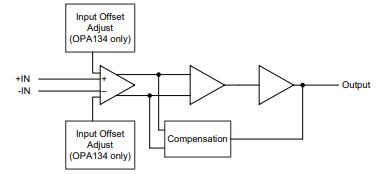

OPA2134 Block Diagram

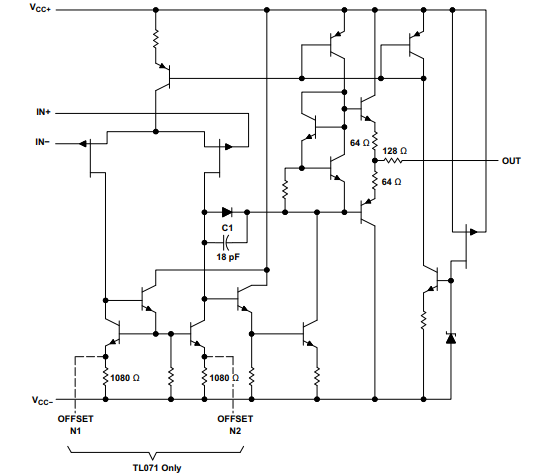

TL072 Block diagram

OPA2134 Applications

• Professional Audio and Music

• Line Drivers

• Line Receivers

• Multimedia Audio

• Active Filters

• Preamplifiers

• Integrators

• Crossover Networks

TL072 Applications

• Solar energy: string and central inverter

• Motor drives: AC and servo drive control and power stage modules

• Single-phase online UPS

• Three-phase UPS

• Pro audio mixers

• Battery test equipment

There are some major differences between OPA2134 and TL072; for one, since OPA2134 has a unity-gain bandwidth of 8MHz vs 3MHz in the case of TL072, there is a significant difference in the typical quiescent current: 4mA vs 1.4mA, respectively. The operating temperature of the  OPA2134 is -40°C~85°C, while the operating temperature of TL072 is 0°C~70°C.
