Intel EP4CE115F29C7: High-Performance, Cost-Effective FPGA Solution

The EP4CE115F29C7, a member of Intel's Cyclone IV family, has set itself apart as a remarkable FPGA chip. Its technical specifications make it a preferred choice for engineers across various industries. With 115,200 logic elements, 208 I/O pins, and a maximum operating speed of 300 MHz, this chip delivers exceptional performance. You can find it powering applications in defense, medical, telecom, automotive, and control systems.

What makes the EP4CE115F29C7 even more impressive is its ability to balance high performance with cost-effectiveness. For example, its use in energy-efficient counter designs significantly reduces dynamic power consumption, making it ideal for power-sensitive projects. Whether you need precise signal generation or flexible waveform creation, this versatile FPGA ensures reliable operation without additional expenses.

High Performance of the EP4CE115F29C7

The EP4CE115F29C7 stands out in the Cyclone IV FPGA family due to its exceptional performance characteristics. Whether you're designing complex systems or optimizing existing ones, this FPGA delivers the speed, efficiency, and reliability you need.

Logic Elements and Embedded Memory

The EP4CE115F29C7 offers an impressive 114,480 logic elements, making it a powerhouse for handling intricate designs. These logic elements allow you to implement advanced algorithms and processes with ease. Additionally, the chip includes 3.8 Mbits of embedded block RAM (EBR), providing ample memory for data storage and processing. This combination of logic and memory ensures seamless operation, even in demanding applications.

The high density of logic elements and embedded memory makes this Cyclone IV FPGA ideal for applications requiring high computational power, such as signal processing and data encryption.

Low Power, High-Speed Performance

One of the most remarkable characteristics of the EP4CE115F29C7 is its ability to balance low power consumption with high-speed operation. The chip's pipelined implementation of multipliers enhances its speed by 31.7%, while requiring only a minimal increase in resource utilization—just three additional logic elements. This efficiency makes it a preferred choice for energy-sensitive projects.

• The pipelined multiplier implementation increases operational frequency by 31.7%.

• Resource utilization rises by only 9.7%, ensuring efficient use of logic elements.

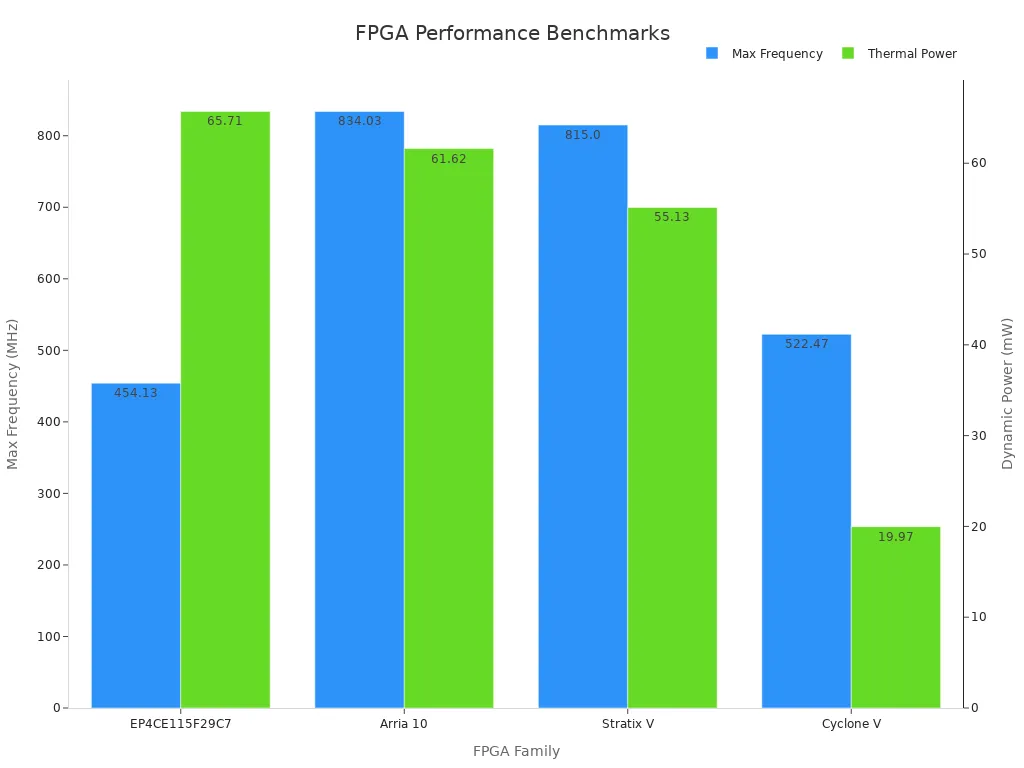

When compared to other FPGA families, the EP4CE115F29C7 demonstrates competitive performance metrics. The table below highlights its maximum frequency and core dynamic thermal power dissipation:

This balance of speed and power efficiency ensures that your designs run smoothly without compromising energy consumption.

Advanced Clock Management with PLLs

The EP4CE115F29C7 features advanced clock management capabilities, thanks to its integrated phase-locked loops (PLLs). These PLLs allow you to generate precise clock signals, ensuring synchronization across your design. Whether you're working on high-speed data transfer or timing-critical applications, the chip's clock management system provides the stability and accuracy you need.

With its ability to support multiple clock domains, the EP4CE115F29C7 simplifies the implementation of complex designs. This flexibility makes it a versatile choice for a wide range of applications, from telecommunications to industrial automation.

Versatility in FPGA Applications

The EP4CE115F29C7 FPGA excels in versatility, making it a reliable choice for a wide range of applications. Its adaptability allows you to tackle complex designs and optimize performance across various industries.

Extensive I/O Pin Support

The EP4CE115F29C7 offers 208 I/O pins, providing you with the flexibility to connect multiple peripherals and external devices. These pins support a variety of voltage standards, ensuring compatibility with different hardware components. Whether you're working on a communication system or an industrial control unit, the extensive I/O pin support simplifies your design process.

You can use these pins to implement high-speed data transfer protocols, such as SPI, I2C, or UART. This capability ensures seamless integration with other devices in your system. The large number of I/O pins also enables you to create designs with multiple input and output channels, enhancing the overall functionality of your FPGA-based projects.

Compatibility with Industry Tools

The EP4CE115F29C7 is compatible with a wide range of industry-standard tools, making it easier for you to develop and test your designs. Intel's Quartus Prime software provides a user-friendly interface for programming and debugging the FPGA. This tool allows you to simulate your designs, identify potential issues, and optimize performance before deployment.

You can also integrate the EP4CE115F29C7 with third-party tools, such as ModelSim and MATLAB, to enhance your design workflow. These tools enable you to perform advanced simulations and analyze the performance of your FPGA in real-world scenarios. The compatibility with industry tools ensures that you can achieve your design goals efficiently and effectively.

Flexible Configuration and Scalability

The EP4CE115F29C7 offers flexible configuration options, allowing you to tailor the FPGA to meet your specific requirements. You can reconfigure the logic elements and embedded memory to adapt to changing project needs. This reconfigurability ensures that your FPGA remains relevant, even as your design evolves.

Scalability is another key feature of the EP4CE115F29C7. You can use it to create designs ranging from simple prototypes to complex systems. For example, the FPGA has been used to synthesize custom CPU architectures with switchable cache systems. This approach allows you to dedicate cache cores to different threads, improving performance in terms of clock cycle count. The ability to scale your designs ensures that the EP4CE115F29C7 can handle diverse applications, from telecommunications to automotive systems.

Tip: The reconfigurability of the EP4CE115F29C7 makes it an excellent choice for projects requiring frequent updates or modifications. You can save time and resources by reusing the same FPGA for different applications.

Cost-Effective Technical Specifications

The EP4CE115F29C7 offers a unique combination of advanced features and affordability. Its technical specifications make it an excellent choice for projects where cost and performance are equally important.

Affordable Pricing for Advanced Features

You don’t have to break the bank to access high-quality FPGA solutions. The EP4CE115F29C7 provides advanced features like 114,480 logic elements and 3.8 Mbits of embedded memory at a competitive price. This affordability allows you to allocate your budget to other critical aspects of your project. Whether you’re working on a prototype or a large-scale deployment, this FPGA ensures you get the most value for your investment.

Note: The EP4CE115F29C7 is part of the Cyclone IV family, known for delivering high performance at a fraction of the cost of other FPGA families.

Energy Efficiency and Operational Savings

Energy efficiency is a key factor in reducing operational costs. The EP4CE115F29C7 consumes minimal power while maintaining high-speed performance. Its low dynamic power dissipation ensures that your designs run efficiently without overheating. This energy-saving capability not only lowers electricity bills but also extends the lifespan of your hardware.

For example, the chip’s pipelined multiplier implementation enhances speed by over 30% while keeping power consumption low. This balance makes it ideal for applications requiring continuous operation, such as industrial automation and telecommunications.

Long-Term Reliability and Support

When you choose the EP4CE115F29C7, you invest in long-term reliability. Its robust design ensures consistent performance even under demanding conditions. Additionally, Intel provides extensive support for this FPGA, including software tools like Quartus Prime and detailed documentation. These resources help you troubleshoot issues and optimize your designs effectively.

The Cyclone IV family’s proven track record in various industries further reinforces its reliability. You can count on the EP4CE115F29C7 to deliver dependable performance for years, making it a cost-effective choice for long-term projects.

Tip: Leveraging Intel’s support ecosystem can save you time and resources during the development process.

The EP4CE115F29C7 stands out for three key reasons:

• High performance with its robust logic elements and advanced clock management.

• Versatility that adapts to diverse applications and industry-standard tools.

• Cost-effectiveness through affordable pricing and energy efficiency.

This FPGA offers a reliable and efficient solution for engineers and developers. Its features make it ideal for tackling complex designs or optimizing existing systems.

Explore the EP4CE115F29C7 today and unlock its potential for your next project.

FAQ

What makes the EP4CE115F29C7 suitable for FPGA prototyping?

The EP4CE115F29C7 offers high performance, extensive I/O pin support, and compatibility with industry tools. These features make it ideal for creating and testing designs during the development phase. Its scalability ensures you can adapt it to various applications, from simple prototypes to complex systems.

Can the EP4CE115F29C7 be used with an affordable DE2-115 evaluation board?

Yes, the EP4CE115F29C7 is compatible with the DE2-115 evaluation board. This board provides a cost-effective platform for testing and implementing FPGA designs. It includes peripherals and interfaces that simplify the development process, making it a great choice for beginners and professionals.

How does the EP4CE115F29C7 compare to other field programmable gate arrays?

The EP4CE115F29C7 balances performance, versatility, and cost-effectiveness. It offers advanced features like embedded memory and low power consumption at an affordable price. While other field programmable gate arrays may excel in specific areas, this chip provides a well-rounded solution for most applications.

Is the EP4CE115F29C7 energy-efficient?

Yes, the EP4CE115F29C7 is designed for energy efficiency. Its low dynamic power dissipation ensures minimal energy consumption without compromising performance. This makes it suitable for applications requiring continuous operation, such as industrial automation and telecommunications.

What industries benefit from using the EP4CE115F29C7?

The EP4CE115F29C7 is used in industries like telecommunications, automotive, medical, and industrial automation. Its versatility and scalability allow engineers to implement it in various applications, from signal processing to control systems. Its affordability also makes it accessible for smaller projects.
