AD8033 80 MHz FastFET Op Amp: High-Speed Specs and Precision Performance Analysis

Executive Summary: What is the AD8033?

The AD8033 is a low-cost, 80 MHz FastFET™ voltage feedback operational amplifier designed for high-speed signal conditioning and precision instrumentation. It combines the high input impedance of a FET-input stage with a wide supply voltage range and rail-to-rail output flexibility.

• Market Position: High-performance, cost-sensitive FET-input amplifier.

• Top Features: 80 MHz bandwidth (G=+1), ultra-low 1 pA input bias current, and wide 5 V to 24 V supply range.

• Primary Audience: Ideal for design engineers working on medical instrumentation, photodiode preamps, and active filters.

• Supply Status: Active (Widely available through authorized distributors).

1. Technical Specifications & Performance Analysis

The AD8033 is a "FastFET" amplifier, meaning it utilizes proprietary Analog Devices technology to achieve high speed without the typical noise penalties associated with standard FET-input op amps.

1.1 Core Architecture (Voltage Feedback FET)

The "Brain" of the AD8033 is its FET-input stage. Unlike bipolar amplifiers that have significant input bias currents, the AD8033's 1 pA typical bias current makes it nearly invisible to the signal source. This is critical for high-impedance sensors where any current leakage would translate into significant voltage errors.

1.2 Key Electrical Characteristics

• Bandwidth & Speed: It delivers a 80 MHz (-3 dB) bandwidth and a 80 V/μs slew rate, making it capable of handling fast pulses and high-frequency signals with minimal distortion.

• Power Supply Flexibility: It operates on a wide range from 5 V to 24 V. Whether you are using a single 5V rail for digital systems or a ±12V split rail for industrial analog, the AD8033 adapts.

• Low Noise Floor: With 11 nV/√Hz voltage noise and 0.7 fA/√Hz current noise, it excels in precision front-end applications.

1.3 Interfaces and Connectivity

The AD8033 features a rail-to-rail output (RRO), allowing the signal to swing within millivolts of the supply rails. This maximizes dynamic range, especially in low-voltage single-supply systems (e.g., 5V systems).

2. Pinout, Package, and Configuration

Understanding the physical layout is essential for PCB routing and thermal management.

2.1 Pin Configuration Guide

• V+ / V-: Power supply pins. Ensure high-quality decoupling.

• +IN / -IN: Non-inverting and Inverting FET inputs.

• OUT: Rail-to-rail output capable of driving up to 40 mA.

2.2 Naming Convention & Ordering Codes

When ordering, pay attention to the suffixes which indicate package and temperature grade:

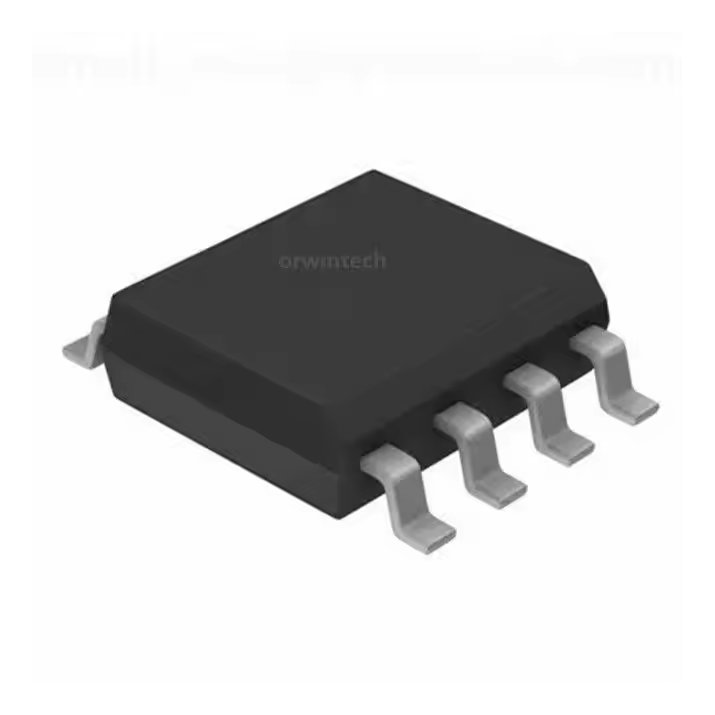

- AD8033ARZ: Standard 8-lead SOIC (Small Outline Integrated Circuit).

- AD8033AKSZ: Compact 5-lead SC70 package for space-constrained designs.

- AD8033ARTZ: 5-lead SOT-23 package.

2.3 Available Packages

3. Design & Integration Guide (For Engineers & Makers)

Pro Tip: Because the AD8033 is a high-speed part (80 MHz), PCB layout is as important as the circuit schematic itself.

3.1 Hardware Implementation

• Bypass Capacitors: Use a 0.1 μF ceramic capacitor in parallel with a 10 μF tantalum capacitor at the power supply pins. Place the 0.1 μF cap as close to the chip as possible.

• PCB Layout: Use a ground plane. Keep input traces short to minimize parasitic capacitance, which can cause oscillation in FET-input stages.

• Thermal Management: While it consumes only 3.3 mA, driving a heavy 40mA load at 24V can generate heat. Ensure the SOIC ground pins have adequate copper pour.

3.2 Common Design Challenges

• Issue: Thermal Overload. High load drive at high voltages can push junction temperatures toward the 175°C limit.

• Fix: Calculate $P_d = (V_{cc} - V_{out}) \times I_{load}$ and ensure your package's $\theta_{JA}$ can handle it.

• Issue: Single-Supply Instability. Low-frequency "motorboating" can occur in single-supply setups.

• Fix: Increase the decoupling capacitor value in your biasing voltage divider to improve low-frequency PSRR.

4. Typical Applications & Use Cases

Watch Tutorial: AD8033

4.1 Real-World Example: Photodiode Preamplifier

In a photodiode circuit, the light-generated current is often in the nanoampere range. The AD8033’s 1 pA bias current ensures that the amplifier doesn't "steal" the signal. Its 80 MHz bandwidth allows for high-speed optical data recovery or fast pulse detection in medical imaging.

5. Alternatives and Cross-Reference Guide

If the AD8033 is out of stock or doesn't meet a specific requirement, consider these:

• Direct Replacements: Texas Instruments TLV9062 (for lower voltage applications) or AD8065 (if you need even higher speed, up to 145 MHz).

• Performance Upgrade: ADA4817-1 offers much higher bandwidth (1 GHz) if the 80 MHz of the AD8033 is a bottleneck.

• Cost-Effective Option: TLV9052 is a viable alternative for general-purpose high-speed needs where ultra-low FET bias current is less critical.

6. Frequently Asked Questions (FAQ)

• Q: What is the difference between AD8033 and AD8034?

• A: The AD8033 is a single amplifier, while the AD8034 is the dual-channel version in the same family.

• Q: Can the AD8033 be used in Automotive applications?

• A: Yes, provided the operating temperature remains within the specified range, though you should check for "AEC-Q100" qualified versions if required for safety-critical systems.

• Q: Does the AD8033 suffer from phase reversal?

• A: No, the AD8033 is designed with a specific architecture that prevents phase reversal when the input common-mode range is exceeded.

• Q: Is it suitable for battery-operated devices?

• A: Yes, with a typical supply current of only 3.3 mA, it balances high-speed performance with moderate power consumption.

7. Resources

• SPICE Models: Compatible with LTspice and PSpice for circuit simulation.

• Evaluation Boards: Look for the EB-O8A universal evaluation board for SOIC op amps.
