H5521 CO2 ETHERNET TWO RELAYS: Technical Data, Datasheet, and Equivalents

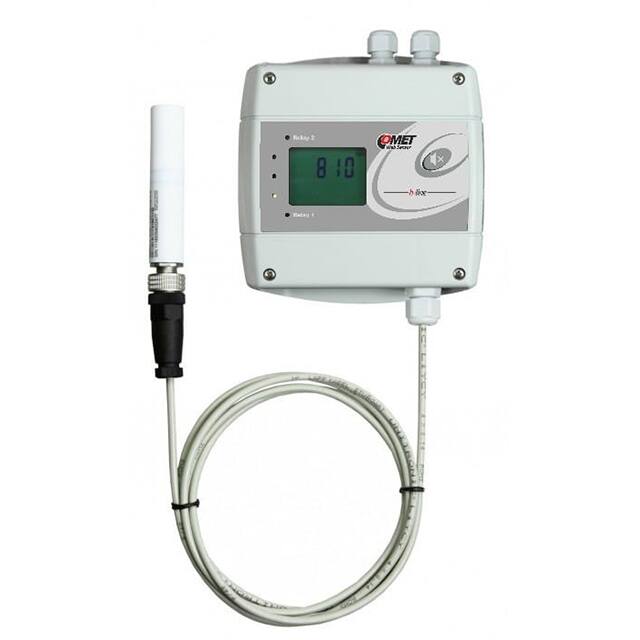

H5521 CO2 level transmitter with two output relays. The CO2 measurement is based on a 2-source, 2-beam process. CO2 measurement with long-term stability is guaranteed thanks to the proven non-dispersive infrared (NDIR) CO2 measurement cell. The unique patented auto-calibration procedure compensates for aging of the infrared source and guarantees high reliability, long term stability, and eliminates the need for periodical recalibration in the field. The device is supplied with a CO2 probe with a 1m cable. Cable lengths 2 or 4 meters are available optionally. The CO2 concentration is shown on the display or signaled by a color LED.

Operating temperature: -30 to +60 °C

Channels: 1x external CO2 sensor

Acoustic alarm: from built-in beeper - switchable

Output: Ethernet

Measuring interval: 15 s

Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols: E-mail (SMTP authentication is supported), SNMP Trap, Syslog

Power: 9-30 Vdc

Protection class: IP30 electronics; IP65 sensors

Dimensions: 136 x 150 x 45 mm

External probe cable length CO2: 1 meter (optionally 2 or 4 meters)

Weight: approx. 360 g

Warranty: 3 years

• CO2 SENSOR

Measuring range 0 to 10 000 ppm

Accuracy ±(110ppm +5% from reading) at 25°C and 1013hPa

Resolution 1 ppm

• RELAY OUTPUTS

Quantity 2

Maximal voltage 50 V

Maximal current 2 A

Maximal power 60 VA

• Green LED shines - CO2 concentration 0 to 1000 ppm

• Yellow LED shines - CO2 concentration 1001 to 1200 ppm

• Red LED shines - CO2 concentration 1201 ppm and more
