STS4DNF60L:datasheet, pinout and specifications

Q: What is STS4DNF60L？

It is an N-channel STripFET™ Power MOSFET for switching applications.

Q: Can STS4DNF60L be operated in 100℃?

Yes, it can be operated between -55℃ and 150℃.

Q: Where is STS4DNF60L made from?

It comes from STMicroelectronics.

Q: Where can we find STS4DNF60L in our daily life?

It can be found in our daily life in many places, such as TV, tablets, Mobile phones, PC, and so on.

Sophie

Published: 11 March 2022 | Last Updated: 11 March 2022

405

STS4DNF60L

VBsemi Elec

SO-8 MOSFET RoHS

Purchase Guide

SO-8 MOSFET RoHS

The STS4DNF60L is an N-channel STripFET™ Power MOSFET for switching applications. This passage is going to introduce STS4DNF60L in the perspectives of description, manufacturer, and package.

Catalog

STS4DNF60L Description

STS4DNF60L is an STMicroelectronics STS4DNF60L that is distributed by Utmel Electronics. It falls under the Electronic Components ICs category.

It is used in a variety of fields, including communications equipment. Enterprise systems with wireless infrastructure a business machine Electronics for personal use Electronics on the go.

The primary parameters of this part are as follows: N-Channel 60 V 0.055 O 15 NC Surface Mount Power Mosfet - SOIC-8 STripFET. It is also environmentally friendly and RoHS compliant (lead-free / RoHS compliant). This Power MOSFET is the latest development of STMicroelectronic's unique “single feature size”strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics, and less critical alignment steps therefore a remarkable manufacturing reproducibility

STS4DNF60L Applications

1. Communications equipment

Broadband fixed line access/Datacom module/Wired networking/Wireless infrastructure

2.Enterprise systems

Data center & enterprise computing/Enterprise machine/Enterprise projectors

3.Personal electronics

Connected peripherals & printers/Data storage/Gaming/Home theater & entertainment/Mobile phones/PC & notebooks/Portable electronics/Tablets/TV/Wearables (non-medical)

STS4DNF60L CAD Models

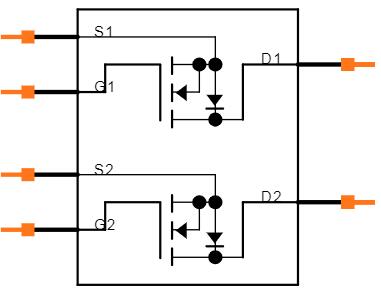

Symbol

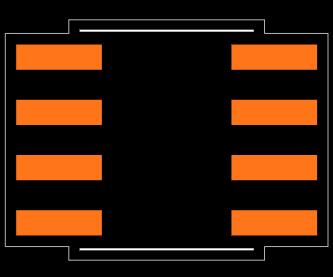

Footprint

3D Models

STS4DNF60L Datasheet

STS4DNF60L datasheet

STS4DNF60L Manufacturer

STMicroelectronics is a global independent semiconductor company that is a market leader in developing and delivering semiconductor solutions for a wide range of microelectronics applications. STMicroelectronics is at the forefront of System-on-Chip (SoC) technology, with an unrivaled combination of silicon and system expertise, manufacturing strength, an IP portfolio, and strategic partner positions. Its products play a key role in enabling today's convergence trends.

STS4DNF60L Feature

■ Standard outline for easy automated surface mount assembly

■ Low threshold drive

STS4DNF60L Functional Block Diagram

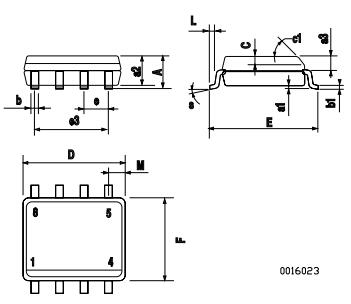

STS4DNF60L Package

Dimensions
Height	1.25 mm
Length	5 mm
Width	4 mm

Specifications

VBsemi Elec STS4DNF60L technical specifications, attributes, parameters and parts with similar specifications to VBsemi Elec STS4DNF60L.

Type
Parameter
Package / Case
refers to the protective housing that encases an electronic component, providing mechanical support, electrical connections, and thermal management.
SO-8
Packaging
Semiconductor package is a carrier / shell used to contain and cover one or more semiconductor components or integrated circuits. The material of the shell can be metal, plastic, glass or ceramic.
Tape & Reel (TR)
RoHS Status
RoHS means “Restriction of Certain Hazardous Substances” in the “Hazardous Substances Directive” in electrical and electronic equipment.
RoHS Compliant

0 Similar Products Remaining

Trend Analysis

Parts with Similar Specs

Frequently Asked Questions

What is STS4DNF60L？

It is an N-channel STripFET™ Power MOSFET for switching applications.

Can STS4DNF60L be operated in 100℃?

Yes, it can be operated between -55℃ and 150℃.

Where is STS4DNF60L made from?

 It comes from STMicroelectronics.

What kind of package does STS4DNF60L use?

SOIC8

Where can we find STS4DNF60L in our daily life?

It can be found in our daily life in many places, such as TV, tablets, Mobile phones, PC, and so on.
