VB300 3-Axis G-Force Datalogger：Battery Replacement, Features and Application

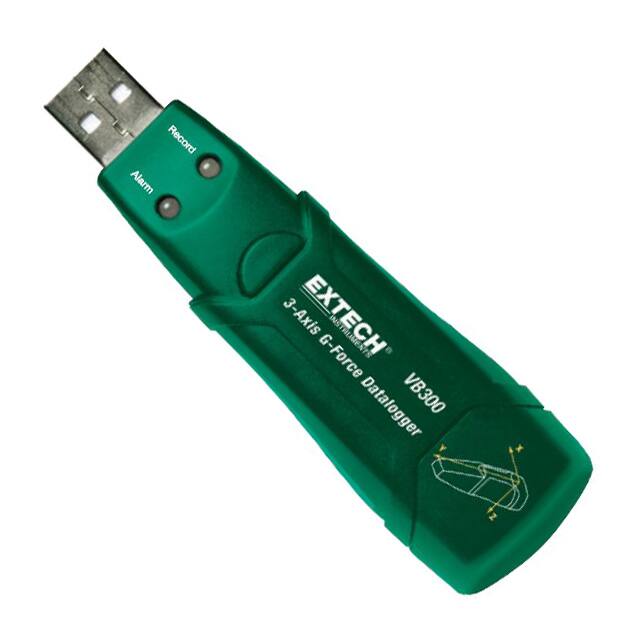

The VB300  is a G-Force data logger that records and times 3-axis shock and vibration (acceleration) readings over its ±18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions. Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery, and Windows compatible analysis software.

• Record storage, transport, or operational data over time

• USB interface for easy set-up and data download

• Record and time 3-axis shock and peaks

• Real-time FFT Frequency and Time-Domain Vibration Analysis

• Data logs 112028 Motion Detection samples per axis,

or 168042 Normal samples

• Selectable X-, Y-, Z-axis, or any combination (via software)

• Selectable data sampling rate: 50ms to 24 hours

• Manual and Programmable start modes

• User-programmable record threshold

• Long battery life

• Complete with  Magnetized /Bolt-on Mounting Base,

•3.6V Lithium battery and Windows® 98, 2000, XP, Vista,

•Win 7 (32-bit and 64-bit) compatible analysis software

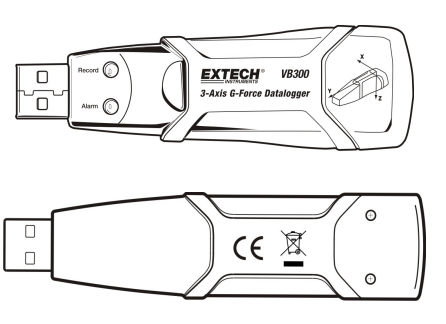

VB300 Model

 LED Status Indication

1. Configure the Datalogger’s sample rate, motion detection threshold, record mode, LED flash cycle, and more using the supplied software program. Refer to the instructions included in the software program’s HELP utility to configure the datalogger and to otherwise use the software.

2. If AUTO start is selected in the software, the datalogger will begin logging data the moment the software window is closed. If MANUAL is selected, press and hold the datalogger start/stop button until the green LED flashes; the datalogger LED flashes periodically (flash interval time selectable in software) indicating that the datalogger is recording.

3. To stop datalogging, press and hold the start/stop button while the unit is datalogging. The red LED will quickly flash indicating that datalogging has stopped. Refer to the LED status table earlier in this manual for interpreting the LED flash information.

4. Refer to the software HELP utility for transferring the data from the logger to the PC.

VB300 Battery Replacement

• Plant Maintenance

• Vibration Analysis

• Manufacturing

• Engineering

• Aerospace

• Automotive

42299: 3.6V Lithium Batteries
