AD9371 300 MHz to 6 GHz Wideband RF Transceiver: Technical Deep Dive and Performance Review

Executive Summary: What is the AD9371?

The AD9371 is a highly integrated, wideband Radio Frequency (RF) transceiver designed by Analog Devices for high-performance wireless applications requiring dual-channel transmitters and receivers. It is a sophisticated System-on-Chip (SoC) that combines RF, mixed-signal, and digital processing to support both Frequency Division Duplex (FDD) and Time Division Duplex (TDD) operations.

• Market Position: High-performance, wideband RF infrastructure component.

• Top Features: 300 MHz to 6 GHz tunable range, dual Tx/Rx channels, and high-speed JESD204B digital interface.

• Primary Audience: Ideal for RF design engineers building 4G/5G base stations, microwave backhaul systems, and advanced Software-Defined Radio (SDR) platforms.

• Supply Status: Active (Standard high-performance catalog item).

1. Technical Specifications & Performance Analysis

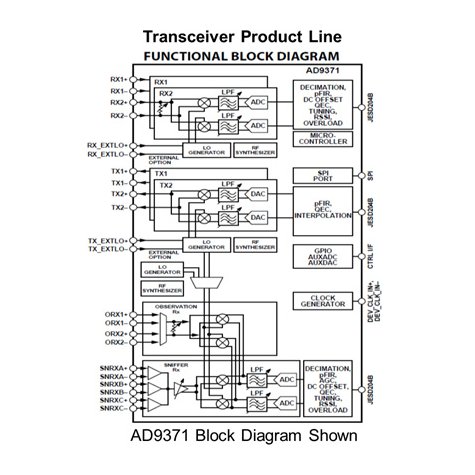

1.1 Core Architecture (RF-to-Bits)

The AD9371 utilizes a Zero-IF (Direct Conversion) architecture, which eliminates the need for bulky intermediate frequency (IF) filters. By integrating the local oscillators (LO) and synthesizers directly on-chip, it significantly reduces the overall Bill of Materials (BOM) and PCB footprint. The inclusion of an Observation Receiver (ORx) and a Sniffer Receiver (SnRx) allows for real-time monitoring of power amplifier (PA) distortion and environment scanning without interrupting the primary data paths.

1.2 Key Electrical Characteristics

Engineers must account for the following critical parameters during the hardware selection phase:

• Frequency Range: Broad coverage from 300 MHz to 6000 MHz, making it versatile for sub-GHz and mid-band cellular applications.

• Receiver Bandwidth: Supports signal bandwidths from 8 MHz to 100 MHz.

• Transmitter Synthesis Bandwidth: Capable of up to 250 MHz, facilitating wideband multicarrier configurations.

• Operating Temperature: Industrial grade performance from -40°C to 85°C, suitable for outdoor telecommunications equipment.

1.3 Interfaces and Connectivity

The AD9371 moves away from traditional LVDS interfaces in favor of the JESD204B serial interface. This supports lane rates up to 6144 Mbps, which is essential for handling the massive data throughput of dual 100MHz channels while reducing the number of traces required between the transceiver and the FPGA/Processor.

2. Pinout, Package, and Configuration

2.1 Pin Configuration Guide

The AD9371 is housed in a high-density ball grid array. While the full pinout is extensive, the pins are grouped into functional clusters:

• RF I/O: Differential pairs for Tx1/Tx2, Rx1/Rx2, and the observation paths.

• Digital Interface: JESD204B high-speed lanes (SERDIN+/-, SERDOUT+/-) and SYSREF signals.

• Control & Power: SPI interface for configuration, Multi-Chip Sync (MCS) pins, and multiple 1.3V/1.8V/2.5V power rails.

2.2 Naming Convention & Ordering Codes

The AD9371 is typically ordered under the following codes: - AD9371BBCZ: Standard industrial temperature range (-40°C to +85°C). - AD9371BBCZ-REEL: Tape and reel format for high-volume automated assembly.

2.3 Available Packages

Note: Due to the 0.8mm ball pitch, machine assembly (SMT) is mandatory; these parts are not suitable for hand-soldering.

3. Design & Integration Guide (For Engineers & Makers)

Pro Tip: The AD9371 is highly sensitive to power supply noise. Use high-PSRR LDOs or filtered switching regulators specifically recommended in the ADI reference designs.

3.1 Hardware Implementation

• Bypass Capacitors: Place 0.1µF and 10pF capacitors as close to the BGA balls as possible to mitigate high-frequency switching noise.

• PCB Layout: Utilize a minimum of 8 to 10 layers with dedicated ground planes under the RF traces to maintain 50-ohm impedance.

• Thermal Management: The AD9371 dissipates significant power (approx. 3W-5W depending on mode). A solid thermal via array under the BGA is required to sink heat into the internal ground planes.

3.2 Common Design Challenges

• SPI and MCS Initialization: Many custom boards fail at "Code -1" errors.

• Fix: Ensure the JESD204B clock is stable before releasing the reset and verify that LDO regulators are not oscillating under load.

• Slow Frequency Hopping: The internal PLLs are optimized for stability, not speed.

• Fix: If your application requires >1000 hops/sec, bypass the internal LO and use an external fast-hopping synthesizer like the ADF4351.

4. Typical Applications & Use Cases

Watch Tutorial: AD9371

4.1 Real-World Example: 4G Macro Base Station

In a 4G BTS (Base Transceiver Station), the AD9371 acts as the heart of the radio unit. It receives digital IQ data via JESD204B from a Xilinx Zynq or Intel Arria FPGA, upconverts it to the desired LTE band (e.g., 2.1 GHz), and sends it to a Power Amplifier. Simultaneously, the Observation Receiver monitors the PA output to apply Digital Pre-Distortion (DPD), ensuring the signal remains within regulatory masks.

5. Alternatives and Cross-Reference Guide

If the AD9371 does not perfectly fit your BOM or performance requirements, consider these alternatives:

• Analog Devices AD9361: A lower-power alternative with an LVDS interface. Better for battery-operated handheld SDRs, but has lower bandwidth (56 MHz).

• Analog Devices ADRV9009: The direct successor/upgrade. Offers double the bandwidth (200 MHz) and improved phase synchronization for Massive MIMO.

• Texas Instruments AFE7769: A quad-channel alternative often used in competitive high-density wireless infrastructure designs.

6. Frequently Asked Questions (FAQ)

• Q: What is the difference between AD9371 and AD9361?

• A: The AD9371 uses JESD204B (higher data rates) and offers wider bandwidth (100MHz vs 56MHz) and integrated observation channels, whereas the AD9361 uses LVDS/CMOS and is more power-efficient.

• Q: Can AD9371 be used for 5G applications?

• A: Yes, it is widely used in 5G sub-6 GHz small cells and O-RAN radio units.

• Q: Where can I find the datasheet and library files?

• A: Documentation and IBIS/BSDL models are available on the Analog Devices official website. Detailed register maps usually require an NDA or access to the ADI "Design Support" folder.

• Q: How do I program the AD9371?

• A: It is primarily configured via an API provided by ADI (written in C), which runs on a host processor or FPGA SoC.

7. Resources

• Development Tools: AD-FMCOMMS5-EBZ Evaluation Board.

• Software: IIO Oscilloscope and AD9371 Filter Wizard.

• Community: Analog Devices EngineerZone (RF Community).
