Mastering 50-MHz Switching: LMG1210 GaN FET Driver Specs, Layout Tips, and Alternatives

Executive Summary: What is the LMG1210?

The LMG1210 is a 200-V, half-bridge MOSFET and Gallium Nitride Field Effect Transistor (GaN FET) driver designed for ultra-high frequency, high-efficiency power conversion. It is engineered specifically to exploit the low gate charge and fast switching speeds of GaN technology, offering unmatched performance in compact power stages.

• Market Position: High-performance, specialized driver for next-generation power electronics.

• Top Features: 50-MHz maximum operating frequency, 10-ns typical propagation delay, and adjustable deadtime for efficiency tuning.

• Primary Audience: Ideal for RF design engineers, power supply specialists, and developers of high-end Class-D audio systems.

• Supply Status: Active (Current production model from Texas Instruments).

1. Technical Specifications & Performance Analysis

The LMG1210 stands out in the power management market due to its ability to handle extremely narrow pulse widths while maintaining precise timing across a wide temperature range.

1.1 Core Architecture (High-Speed Gate Drive)

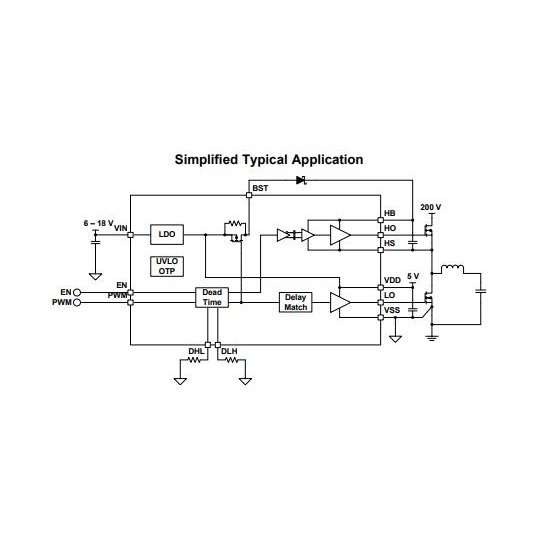

The LMG1210 utilizes a high-speed level-shifter architecture that allows it to drive high-side FETs in a half-bridge configuration up to 200 V. Unlike standard MOSFET drivers, the LMG1210 includes an internal Low Dropout (LDO) regulator that ensures a consistent 5-V gate-drive voltage, protecting sensitive GaN gate oxides from overvoltage conditions.

1.2 Key Electrical Characteristics

Engineers and procurement managers should note the following critical parameters:

- Switching Speed: Capable of up to 50-MHz operation, making it one of the fastest drivers in its class.

- Drive Strength: Features a 1.5-A peak source and 3-A peak sink current, ensuring rapid charging and discharging of gate capacitance.

- Voltage Range: Operates with an input supply (VIN) of 6 V to 18 V, providing flexibility for various logic and power rails.

- Timing Precision: A typical 3.4-ns matching between high-side and low-side channels minimizes deadtime requirements.

1.3 Interfaces and Connectivity

The LMG1210 offers two distinct control modes to suit different controller architectures:

1.  Independent Input Mode (IIM): Allows the controller to dictate the high-side and low-side timing independently.

2.  PWM Mode: Uses a single PWM signal to generate complementary outputs, with the LMG1210 managing the deadtime internally.

2. Pinout, Package, and Configuration

Understanding the physical layout is vital for both the PCB designer and the procurement team ensuring the right footprint is sourced.

2.1 Pin Configuration Guide

The LMG1210 is typically housed in a compact, low-inductance package to support its high-frequency capabilities.

• VDD: 5V LDO output for gate drive.

• HI / LI: Logic inputs for Independent Input Mode.

• PWM: Single-wire control input (when enabled).

• HB / HS: High-side bootstrap supply and return.

• HO / LO: High-side and Low-side gate drive outputs.

• DT: Deadtime adjustment pin (connect a resistor to GND to set duration).

2.2 Naming Convention & Ordering Codes

TI typically uses suffixes like LMG1210RVR or LMG1210RVT.

 - "RVR" usually denotes Large Reel (3000 units).

- "RVT" usually denotes Small Reel (250 units). Always verify the suffix for your specific manufacturing volume requirements.

2.3 Available Packages

3. Design & Integration Guide (For Engineers & Makers)

Pro Tip: At 50 MHz, even 1 nH of trace inductance can cause significant ringing. Keep gate drive loops as short as physically possible.

3.1 Hardware Implementation

• Bypass Capacitors: Use low-ESR ceramic capacitors (X7R or better) placed immediately adjacent to the VDD and HB pins.

• PCB Layout: A multi-layer board is mandatory. Use a dedicated ground plane directly beneath the driver to minimize the power loop inductance.

• Thermal Management: While efficient, switching at 50 MHz generates heat. Ensure the thermal pad is soldered to a large copper area with thermal vias.

3.2 Common Design Challenges

• Issue: SPICE Simulation Instability. The LMG1210 SPICE model may fail at temperatures above 27°C.

• Fix: Verify the circuit logic at default temperatures first. For high-temp simulations, manually adjust behavioral E-sources in the unencrypted PSpice library.

• Issue: High Sensitivity to Layout. Single-layer boards will likely cause the IC to malfunction or fail due to inductive spikes.

• Fix: Strictly adhere to the TI EVM (Evaluation Module) layout patterns.

4. Typical Applications & Use Cases

Watch Tutorial: LMG1210

4.1 Real-World Example: RF Envelope Tracking

In modern 5G infrastructure, power amplifiers must adjust their supply voltage in real-time to match the signal envelope. The LMG1210’s 50-MHz capability allows the DC/DC converter to track these high-speed signals with precision, significantly increasing overall system efficiency and reducing heat.

5. Alternatives and Cross-Reference Guide

If the LMG1210 is unavailable or if your specs differ slightly, consider these alternatives:

• Direct Replacements:

• LMG1205 (TI): A predecessor; similar but with lower frequency limits and different timing specs.

• Better Performance / Newer Technology:

• LM5113-Q1 (TI): Optimized for automotive applications with AEC-Q100 qualification.

• Competitor Options:

• Si827xGB-IM (Skyworks): Offers high CMTI (Common Mode Transient Immunity) for noisy environments.

• ADuM4221A (Analog Devices): Isolated half-bridge driver for applications requiring galvanic isolation.

6. Frequently Asked Questions (FAQ)

• Q: What is the difference between LMG1210 and LMG1205?

• A: The LMG1210 supports much higher frequencies (50 MHz vs. 1-2 MHz typical) and features an adjustable deadtime pin which is absent or less flexible in the 1205.

• Q: Can LMG1210 be used with standard Silicon MOSFETs?

• A: Yes, provided the MOSFET gate voltage is compatible with the 5V drive and the 200V rail limit is respected.

• Q: Where can I find the datasheet and library files for LMG1210?

• A: These are available on the Texas Instruments official website. Search for "LMG1210 datasheet" to find the latest PDF and CAD symbols (Altium, Eagle, etc.).

• Q: How do I program the deadtime?

• A: The deadtime is programmed via an external resistor connected to the DT pin. The value of this resistor determines the delay between the high-side and low-side switching.

7. Resources

• Development Tools: LMG1210EVM-012 Evaluation Module.

• Software: TI TINA-TI or PSpice for circuit simulation.

• Whitepaper: "Optimizing GaN Performance with High-Speed Drivers."
