LTC6811 12-Cell Battery Monitor: Solving isoSPI Communication and PEC Errors

Executive Summary: What is the LTC6811?

The LTC6811 is a multicell battery stack monitor designed for measuring up to 12 series-connected battery cells with a total measurement error of less than 1.2mV. It serves as a critical component in Battery Management Systems (BMS), providing high-speed, RF-immune communications through its proprietary isoSPI™ interface.

• Market Position: High-performance, automotive-grade precision monitor.

• Top Features: 1.2mV maximum measurement error, 290µs full-stack measurement time, and ISO 26262 compliance readiness.

• Primary Audience: Ideal for EV powertrain engineers, grid-scale storage designers, and high-voltage BMS developers.

• Supply Status: Active (Note: Successor ADBMS6815 is available for new designs).

1. Technical Specifications & Performance Analysis

The LTC6811 is engineered to operate in the harsh electrical environments of electric vehicles, where noise immunity and speed are paramount.

1.1 Core Architecture (High-Precision ADC)

The heart of the LTC6811 is a 16-bit Delta-Sigma ADC equipped with a programmable noise filter. This architecture allows the device to suppress the PWM noise generated by motor inverters and chargers, ensuring that the SOC (State of Charge) and SOH (State of Health) calculations remain accurate even during active operation.

1.2 Key Electrical Characteristics

The device is optimized for ultra-low power consumption and extreme precision:

- Cell Measurement Range: 0V to 5V, making it compatible with almost all lithium chemistries (Li-ion, LiFePO4, etc.).

- Measurement Accuracy: Total error is kept under 1.2mV, which is essential for balancing cells with flat discharge curves.

- Power Efficiency: Features a 4µA Sleep Mode current, preventing battery drain during long-term storage of the end product.

1.3 Interfaces and Connectivity

The LTC6811 supports two communication modes:

1.  Standard SPI: For direct connection to a local microcontroller (up to 1Mbps).

2.  isoSPI: A 2-wire isolated interface that allows multiple LTC6811s to be daisy-chained over long distances (up to 100 meters) using simple twisted-pair wiring and pulse transformers.

2. Pinout, Package, and Configuration

Understanding the physical layout is vital for reducing parasitic capacitance and ensuring communication integrity.

2.1 Pin Configuration Guide

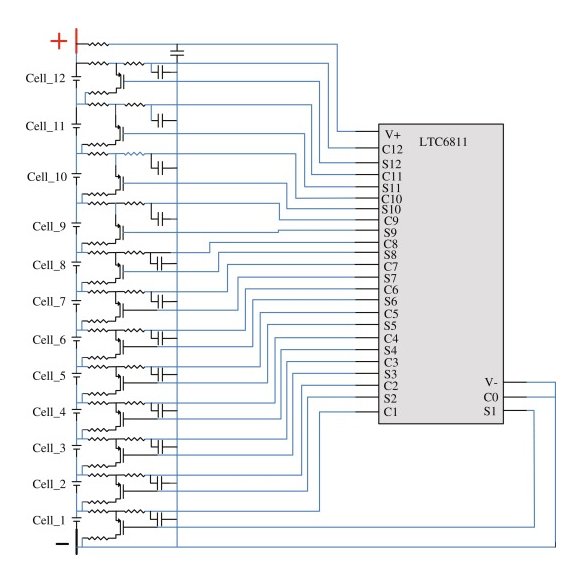

• C1 through C12: Cell input pins for measuring individual voltages.

• S1 through S12: Internal N-channel MOSFET switch outputs for passive cell balancing.

• V+ / V-: Main supply pins for the stack.

• IPA/IMA & IPB/IMB: isoSPI differential ports for daisy-chaining.

• DRIVE: External transistor drive pin to provide power to the IC from the battery stack.

2.2 Naming Convention & Ordering Codes

The LTC6811 typically comes in two primary variations:

- LTC6811-1: Designed for daisy-chain (addressable) configurations using isoSPI.

- LTC6811-2: Designed for parallel (bus-based) configurations where each IC has a unique address on a shared SPI bus.

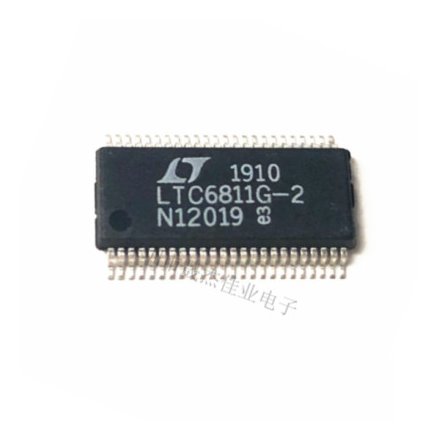

2.3 Available Packages

3. Design & Integration Guide (For Engineers & Makers)

Pro Tip: Always verify pin compatibility before migrating from the older LTC6804 series; while similar, the LTC6811 offers enhanced diagnostics.

3.1 Hardware Implementation

• Bypass Capacitors: Place 0.1µF ceramic capacitors as close as possible to the V+ and VREG pins to filter high-frequency noise.

• PCB Layout: Use a dedicated ground plane. Keep isoSPI differential pairs tightly coupled and away from high-current power traces to minimize EMI.

• Thermal Management: While the IC consumes little power, passive balancing generates heat. Ensure the balancing resistors are sized correctly and placed with sufficient thermal relief.

3.2 Common Design Challenges

Based on field data, users should be aware of the following:

• Issue: Daisy Chain Communication Failures

• Fix: Perform a device wake-up test by toggling Chip Select (CS) and monitoring the DRIVE pin. Ensure the trefup delay in your firmware matches the datasheet specifications to allow the internal bias to stabilize.

• Issue: SPI Mode and PEC Calculation Errors

• Fix: The LTC6811 requires SPI Mode 3 (CPOL=1, CPHA=1). Additionally, every command must be followed by a 15-bit Packet Error Code (PEC). If you receive 0xFF, check your MISO pull-up resistors and validate your PEC15 algorithm.

4. Typical Applications & Use Cases

Watch Tutorial: LTC6811

4.1 Real-World Example: Electric Vehicle Battery Pack

In a typical EV pack (e.g., 400V), thirty or more LTC6811s are daisy-chained. Each IC monitors 12 cells. The isoSPI interface allows the "Bottom" IC to communicate with the "Top" IC through a transformer-isolated barrier, protecting the low-voltage MCU from the 400V stack potential.

5. Alternatives and Cross-Reference Guide

If the LTC6811 is unavailable or doesn't meet specific cost targets, consider these options:

• Direct Successor: Analog Devices ADBMS6815. It offers similar 12-cell monitoring but with enhanced functional safety features for ISO 26262.

• High-Density Alternative: Analog Devices ADBMS6832 (for monitoring up to 18 cells).

• Competitor (TI): Texas Instruments BQ79612-Q1. Offers similar precision and automotive qualification.

• Competitor (NXP): NXP MC33771C. A popular choice in European automotive supply chains.

6. Frequently Asked Questions (FAQ)

Q: What is the difference between LTC6811-1 and LTC6811-2?A: The -1 version is for daisy-chaining (serial), while the -2 version is for parallel SPI addressing.

Q: Can the LTC6811 be used in 48V systems?A: Yes. A single LTC6811 can monitor a 12S (48V nominal) pack easily, as its measurement range covers the full span of the stack.

Q: How do I fix "Open Wire Check" bugs in the C library?A: Manually patch the open-source Linduino library. Change the openWire_delta variable type to int16_t and adjust the -400mV threshold logic to prevent incorrect "open" readings.

Q: Is the LTC6811 suitable for battery-operated devices?A: Absolutely. With a 4µA sleep current, it is excellent for high-power portable equipment that may sit idle for months.

7. Resources

• Datasheet: Available via Analog Devices website.

• Evaluation Kit: DC2259A (for LTC6811-1).

• Software Library: Linduino (Arduino-compatible) C++ libraries.
