1PS79SB30 Single Diode: Schottky, 40V, 200mA, Datasheet PDF

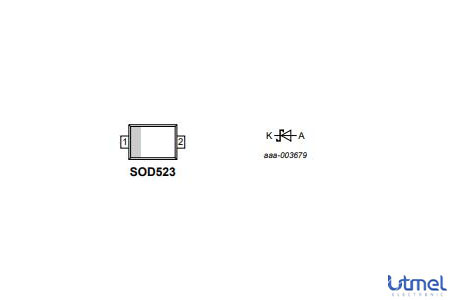

1PS79SB30 Pinout

Symbol

1PS79SB30 Symbol

Footprint

1PS79SB30 Footprint

3D Model

1PS79SB30 3D Model

1PS79SB30 is a Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD523 (SC-79) ultra-small Surface Mounted Device  (SMD) plastic package.

• Ultra high-speed switching

• Voltage clamping

• Blocking diodes

• Very low forward voltage
• Very low reverse current
• Guard ring protected
• Ultra small SMD package
• AEC-Q101  qualified

The alternative for 1PS79SB30

• 1PS79SB30,135

• 1PS79SB30,115

• 1PS79SB30T/R
