STMPS2141STR is a 32-bit ARM® Cortex®-M4 series Microcontroller. This article will go into more detail about STMPS2141STR, including pinout, CAD model, block diagram, features, and so on.

This short video introduces the details of STMPS2141STR.

SMB132M Sv 801. Mercedes-Benz OC500LE. Euro 5 (Batch 2) Single Deck Bus.

Catalog

STMPS2141STR Description

The STMPS2141STR is intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. It incorporates 90 mΩ N-channel MOSFET high-side power switches for power distribution. The STMPS2141STR is controlled by a logic enable input.

When the output load exceeds the current-limit threshold or a short is present, the device limits the output current to a safe level by switching into a constant current mode. When continuous heavy overloads and short-circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts the switch off to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures the switch remains off until a valid input voltage is present.

STMPS2141STR Pinout

STMPS2141STR Pinout.jpg

STMPS2141STR Pinout

STMPS2141STR CAD Model

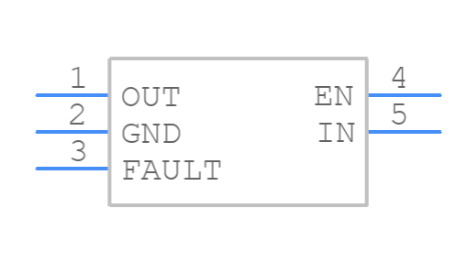

STMPS2141STR Symbol.png

STMPS2141STR Symbol

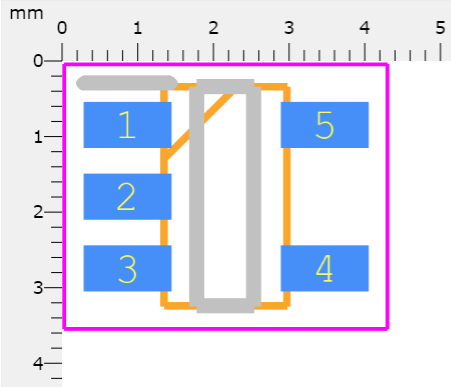

STMPS2141STR Footprint.png

STMPS2141STR Footprint

STMPS2141STR 3D Model.png

STMPS2141STR 3D Model

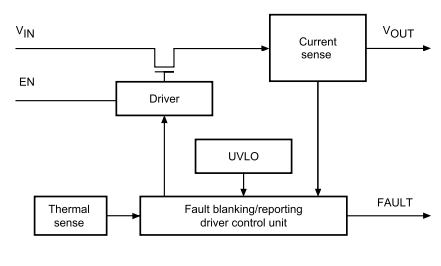

STMPS2141STR Block Diagram

STMPS2141STR Block Diagram.png

STMPS2141STR Block Diagram

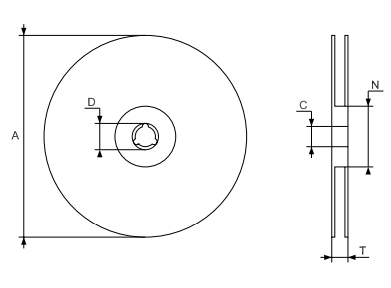

STMPS2141STR Reel Information

STMPS2141STR Reel information.png

STMPS2141STR Reel Information

STMPS2141STR Features

• Low MOSFET On-Resistance: 85mΩ

• Compliant to USB Specifications

• Available 4 Versions of Continuous Load:

0.5A/1.0A/1.5A/2.0A

• Logic Level Enable Pin: Available with

Active-high or Active-low Version

• Operating Voltage Range: 2.7V to 5.5V

• Low Supply Current: 68µA (Typ.)

• Low Shutdown Current: 1.0µA (Max)

• Under-voltage Lockout

• Soft Start-up

• Over-current Protection

• Over Temperature Protection

• Load Short Protection with Fold-back

• No Reverse Current When Power Off

• Deglitched FLAG Output with Open Drain

• With Output Shutdown Pull-low Resistor

STMPS2141STR Package Dimension

STMPS2141STR Package.png

STMPS2141STR Package Dimension

STMPS2141STR Manufacturer
