TXS0108ERGYR Translators: Features, Applications and Datasheet

Q: What is Texas Instruments TXS0108ERGYR?

The Texas Instruments TXS0108ERGYR is a level translator that regulates the input voltage into a circuit. It has an open drain output and a minimum operating temperature of -40 °C and a maximum of 85 °C.

Sophie

Published: 19 December 2023 | Last Updated: 19 December 2023

466

TXS0108ERGYR

Texas Instruments

Surface Mount 20 pins Tape & Reel (TR) Voltage Translators & Level Shifters 1 Voltage Level 20-VFQFN Exposed Pad Active 6 Weeks Weeks 2 (1 Year)

Purchase Guide

Surface Mount 20 pins Tape & Reel (TR) Voltage Translators & Level Shifters 1 Voltage Level 20-VFQFN Exposed Pad Active 6 Weeks Weeks 2 (1 Year)

Level translators like the Texas Instruments TXS0108ERGYR control the input voltage of a circuit. This article will introduce its features, applications and datasheet.

Catalog

TXS0108ERGYR Description

Level translators like the Texas Instruments TXS0108ERGYR control the input voltage of a circuit. Its working temperature ranges from -40 °C to 85 °C, with an open drain output. The V CCB pin supply voltage is tracked by the B port. Any source voltage between 1.65 V and 5.5 V can be applied to the V CCB pin. Low voltage bidirectional translation between any of the 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes is made possible by two input supply pins. A 60Mbps 20-VQFN (3.5x4.5) integrated circuit (IC) is the TXS0108ERGYR.

TXS0108ERGYR Features

Auto-direction sensing
Surface mount
Low level output current: 50 mA
Operating temperature range: -40°C to +85°C
Output type: Open drain, push-pull
Data rate: 60Mbps
Channels per circuit: 8
Supply voltage (VCCA): 1.4V~3.6V

Specification

TXS0108ERGYR CAD Model

Symbol

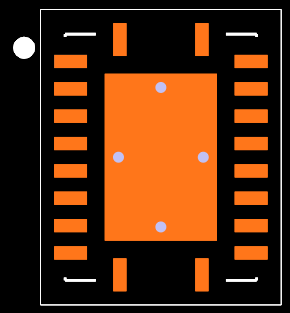

Footprint

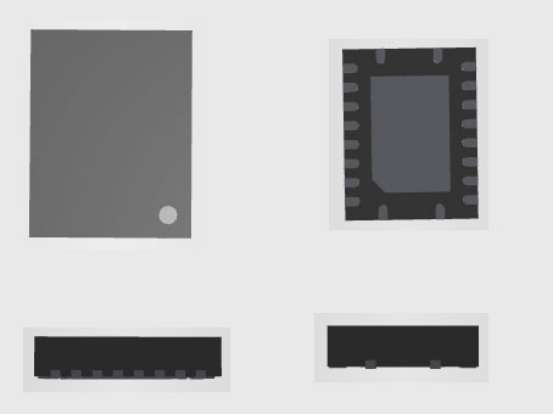

3D Model

TXS0108ERGYR Alternatives

Part Number	Description	Manufacturer
TXS0108EGXYR	SPECIALTY INTERFACE CIRCUIT, PBGA20, PLASTIC, BGA-20	Texas Instruments
TXS0108EPWRG4	8-bit bidirectional voltage-level shifter for open-drain and push-pull application 20-TSSOP -40 to 85	Texas Instruments
TXS0108EZXYR	8-bit bidirectional voltage-level shifter for open-drain and push-pull application 20-BGA MICROSTAR JUNIOR -40 to 85	Texas Instruments

TXS0108ERGYR Applications

Interfacing between microcontrollers, sensors, memory, and other digital peripherals that operate at different voltage levels
Communications and networking
Portable devices
Consumer electronics
Computers

TXS0108ERGYR Manufacturer

Texas Instruments is a global semiconductor company that designs, manufactures, tests and sells analog and embedded processing chips for various markets. It was founded in 1930 as Geophysical Service Incorporated, a company that provided seismic exploration services for the oil industry. In 1951, it changed its name to Texas Instruments and entered the field of electronics, producing the first commercial silicon transistor in 1954. Since then, it has been a pioneer in many fields, such as integrated circuits, calculators, microprocessors, digital signal processors, and wireless communication. Today, it has more than 80,000 products that help its customers efficiently manage power, accurately sense and transmit data, and provide the core control or processing in their designs. Its products go into markets such as industrial, automotive, personal electronics, communications equipment and enterprise systems. It has a vision to create a better world by making electronics more affordable through semiconductors, and a mission to engineer progress by innovating and creating differentiated analog and embedded processing products.

Parts with Similar Specs

The three parts on the right have similar specifications to Texas Instruments & TXS0108ERGYR.

Part Number
Manufacturer
Package / Case
Number of Pins
Logic Function
Min Supply Voltage
Supply Voltage
Max Supply Voltage
Terminal Pitch
Mount
View Compare
TXS0108ERGYR
Texas Instruments
20-VFQFN Exposed Pad
20
Translator
1.2 V
2.5 V
5.5 V
0.5 mm
Surface Mount
SN74LVC8T245RHLR
Texas Instruments
14-VFQFN Exposed Pad
14
Translator
1.2 V
1.4 V
5.5 V
0.5 mm
Surface Mount
TXS0108ERGYR
VS
SN74LVC8T245RHLR
TXB0104RGYR
Texas Instruments
24-VFQFN Exposed Pad
24
Transceiver, Translator
1.65 V
1.8 V
5.5 V
0.5 mm
Surface Mount
TXS0108ERGYR
VS
TXB0104RGYR
TXB0106RGYR
Texas Instruments
16-VFQFN Exposed Pad
16
Translator
1.2 V
1.5 V
5.5 V
0.5 mm
Surface Mount
TXS0108ERGYR
VS
TXB0106RGYR

Datasheet PDF

Download datasheets and manufacturer documentation for Texas Instruments TXS0108ERGYR.

PCN Design/Specification :
TXS0108E 31/Jan/2019

Frequently Asked Questions

What is Texas Instruments TXS0108ERGYR?

The Texas Instruments TXS0108ERGYR is a level translator that regulates the input voltage into a circuit. It has an open drain output and a minimum operating temperature of -40 °C and a maximum of 85 °C.
