1N4001 vs 1N4007: What’s the Differences?

A 1N4001 is a diode of the 1N400x series, all diodes of this series are widely used in electronic devices.

The 1N4001 diode is manufactured with good specifications, such as 1A upstream current, 3W power dissipation, and small in size with low price, which makes it ideal for a wide variety of electronic applications.

1N4007 is a PN junction rectifier diode. These types of diodes only allow the flow of electric current in one direction. Therefore, it can be used for the conversion of alternating current to direct current. The 1N4007 is electrically compatible with other rectifier diodes and can be used instead of any diode of the 1N400X series.

The 1N4007 has various applications in real life. For example, applications of freewheeling diodes, general rectifying of power supplies, inverters, converters, etc.

Just shown below, The 1N4007 and 1N4001 both have two pins, the anode, and cathode respectively. Both pins have opposite charges on them. The two pins and their names and charges are shown in the table below.

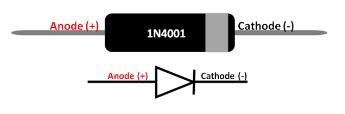

The 1N4007 and 1N4001 diodes have a cathode (-) and anode (+). In the schematic symbol, the tip of the triangle with the line on top of it is the cathode.

1N4001 Features

• The average forward current is 1A

• Non-repetitive peak current is 30A

• The reverse current is 5uA.

• RMS reverse voltage is 35V

• Peak repetitive reverse voltage is 50V

• Available in DO-41 Package

1N4007 Features

• Operating Junction Temperature : -550C – 1750C

• Forward Voltage: 1.1 Volts

• The average forward current is 1A

• Non-repetitive Peak current is 30A

• The reverse current is 5uA.

• Peak repetitive reverse voltage is 1000V

• Power dissipation 3W

• Available in DO-41 Package

1N4001 Application

• Can be used to prevent reverse polarity problem

• Half Wave and Full Wave rectifiers

• Used as a protection device

• Current flow regulators

1N4007 Application

• For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application.

• Power Supplies

• Battery Chargers

• Voltage Doublers

• Adapters

• Rectification

• Components protection

• Blocking incoming voltage were not required

1N4148, 1N4733A, 1N5408, 1N5822, Zener Diodes.

1N4001 series diodes are 1 Ampere current handling general purpose rectifier diodes. 1N stands for American standard semiconductor (Generic name) with ONE JUNCTION.

400X Series like 4001, 4002 to 4007 indicate the diodes' voltage, current, and power rating.

1N= Means One Junction between P-type and N-Type.

400= Means the Serial number of the rectifier.

1= Means Defines its (1 A) current rating.

To obtain the maximum operating time of the diode, it is recommended to stay between 30 and 40 V below its maximum repetitive reverse voltage and other values. Always connect with correct polarity, and do not exceed a load of 1A. Do not operate and store at a temperature below -55 centigrade and above +175 centigrade.

onsemi (legally ON Semiconductor Corporation; formerly ON Semiconductor until August 5, 2021) is an American semiconductor supplier company, formerly in the Fortune 500, but dropping into the Fortune 1000 (ranked 512) in 2020. Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power applications. onsemi runs a network of manufacturing facilities, sales offices, and design centers in North America, Europe, and the Asia Pacific. Headquartered in Phoenix, Arizona, onsemi has revenues of $3.907 billion (2016), which puts it among the top 20 semiconductor sales leaders worldwide.

1N4001 and 1N4007 are shown in the same datasheet.

1N4001~1N4007 datasheet
