ATTINY13V CMOS 8-bit Microcontroller: Features, Pinout and Datasheet

The following figure is the diagram of ATTINY13V pinout.

Pinout

The followings are ATTINY13V Symbol, Footprint, and 3D Model.

Symbol

Footprint

3D Model

The ATTINY13V is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY13V achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The ATtiny13 AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, and Evaluation kits.

This article provides you with a basic overview of the ATTINY13V CMOS 8-bit Microcontroller, including its pin descriptions, features and specifications, etc., to help you quickly understand what ATTINY13V is.

● High Performance, Low Power AVR^® 8-Bit Microcontroller

● Advanced RISC Architecture

   ◆ 120 Powerful Instructions – Most Single Clock Cycle Execution

   ◆ 32 x 8 General Purpose Working Registers

   ◆ Fully Static Operation

   ◆ Up to 20 MIPS Througput at 20 MHz

● High Endurance Non-volatile Memory segments

   ◆ 1K Bytes of In-System Self-programmable Flash program memory

   ◆ 64 Bytes EEPROM

   ◆ 64 Bytes Internal SRAM

   ◆ Write/Erase cyles: 10,000 Flash/100,000 EEPROM

   ◆ Data retention: 20 years at 85°C/100 years at 25°C

   ◆ Programming Lock for Self-Programming Flash & EEPROM Data Security

● Peripheral Features

   ◆ One 8-bit Timer/Counter with Prescaler and Two PWM Channels

   ◆ 4-channel, 10-bit ADC with Internal Voltage Reference

   ◆ Programmable Watchdog Timer with Separate On-chip Oscillator

   ◆ On-chip Analog Comparator

● Special Microcontroller Features

   ◆ debugWIRE On-chip Debug System

   ◆ In-System Programmable via SPI Port

   ◆ External and Internal Interrupt Sources

   ◆ Low Power Idle, ADC Noise Reduction, and Power-down Modes

   ◆ Enhanced Power-on Reset Circuit

   ◆ Programmable Brown-out Detection Circuit

   ◆ Internal Calibrated Oscillator

● I/O and Packages

   ◆ 8-pin PDIP/SOIC: Six Programmable I/O Lines

   ◆ 20-pad MLF: Six Programmable I/O Lines

● Operating Voltage: 1.8 - 5.5V

● Speed Grade: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V

● Industrial Temperature Range

● Low Power Consumption

   ◆ Active Mode: 1 MHz, 1.8V: 240 µA

   ◆ Power-down Mode: < 0.1 µA at 1.8V

The following is the Block Diagram of ATTINY13V.

Block Diagram

● USB ASP AVR Programmer

● AVR Development Board

● Crystal Oscillators

● Capacitors

● 12V Adapter

● 7805 Voltage Regulator

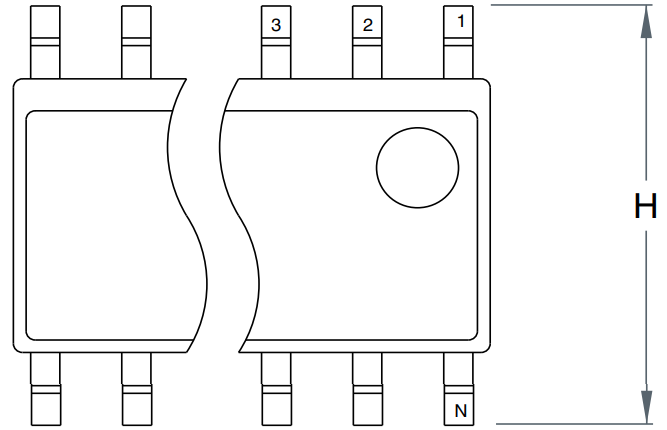

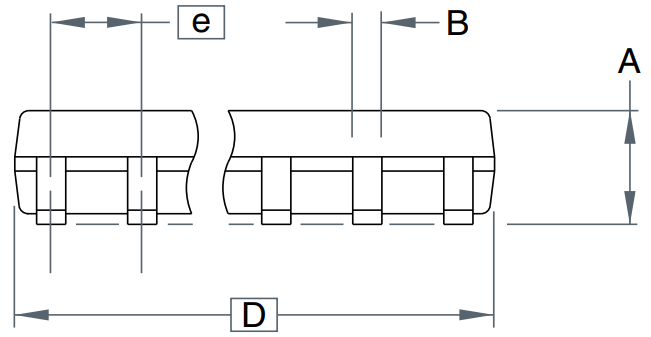

The following diagram shows the ATTINY13V package.

Top View

Side View

End View

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
