OPA2134 VS NE5532 How to differentiate the OPA2134 and NE5532

The OPA2134  is a low-noise, ultra-low-distortion operational amplifier designed specifically for audio applications. To deliver improved sound quality and speed for exceptional audio performance, a real FET input stage is included. This, combined with the high output drive capabilities and good DC  performance, makes it suitable for a wide range of demanding applications. The OPA134  also has a wide output swing, within 1 V  of the rails, which allows for more headroom and makes it perfect for use in any audio circuit.

In conventional configurations, single and dual versions are offered in 8-pin DIP  and SO-8 surface-mount packages. In 14-pin DIP  and SO-14 surface-mount packaging, the quad is offered. All are rated for temperatures ranging from –40°C to 85°C. A SPICE macro model is available for design analysis.

The NE5532  series of operational amplifiers are high-performance devices with good DC  and AC  characteristics. Low noise, high output drive capability, high unity-gain, and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection are all features. Internally, these operational amplifiers are calibrated to operate at unity gain. Maximum equivalent input noise voltage restrictions have been set for these devices.

OPA2134 Pinout

NE5532 Pinout

OPA2134 Block Diagram

NE5532 Block Diagram

OPA2134  3D Mode

OPA2134 Symbol

OPA2134 Footprint

NE5532 3D Model

NE5532 Symbol

NE5532 Footprint

OPA2134 Features

• Superior Sound Quality

• Ultra-Low Distortion: 0.00008%

• Low Noise: 8 nV/√Hz

• True FET-Input: IB = 5pA

• High Speed:

   -Slew Rate: 20 V/µs

   -Bandwidth: 8 MHz

• High Open-Loop Gain: 120 dB (600 Ω)

• Supply Range: ±2.5 V to ±18 V

• Single, Dual, and Quad Versions

NE5532 Features

•Small-Signal Bandwidth: 10 MHz

• Output Drive Capability: 600, 10 VRMS

• Input Noise Voltage: 5.0 nV Hz  (Typical)

• DC Voltage Gain: 50000

• AC Voltage Gain: 2200 at 10 kHz

• Power Bandwidth: 140 kHz

• Slew Rate: 9.0 V/s

• Large Supply Voltage Range: 3.0 to 20 V

• Compensated for Unity Gain

• Pb−Free Packages are Available

OPA2134  Absolute Maximum Ratings

NE5532 Absolute Maximum Ratings

OPA2134 Applications

• Professional Audio and Music

• Line Drivers

• Line Receivers

• Multimedia Audio

• Active Filters

• Preamplifiers

• Integrators

• Crossover Networks

NE5532 Applications

• AV Receivers

• Embedded PCs

• Netbooks

• Video Broadcasting and Infrastructure: Scalable Platforms

• DVD Recorders and Players

• Multichannel Video Transcoders

• Pro Audio Mixers

The OPA2134  is a Fet Input op-amp, while the NE5532  is a Bipolar Input op-amp.

Although many people dismiss the NE5532  as an obsolete component and try to locate a replacement, the NE5532  is still adequate for most applications. Because anything better is overkill and not cost-effective, a lot of new audio equipment still uses ancient op-amps like the NE5532  and TL072.

The NE5532  is usually a better choice than a JFET OPA2132  / OPA2134  if you can utilize a bipolar OP. When a FET type is required, the OPA2134  is a better alternative than the TL072,  It's possible that this is the case with low-frequency filters.  The OPAx132  family is the slightly better version for DC  critical applications.

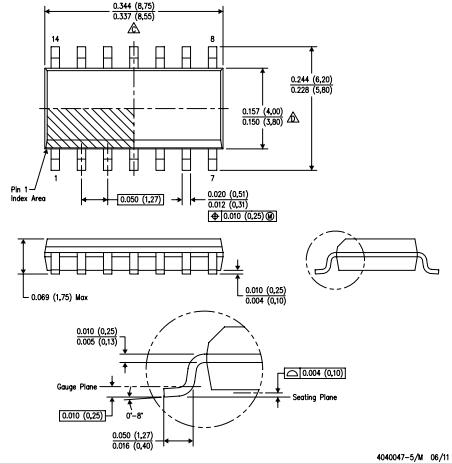

OPA2134 Package information

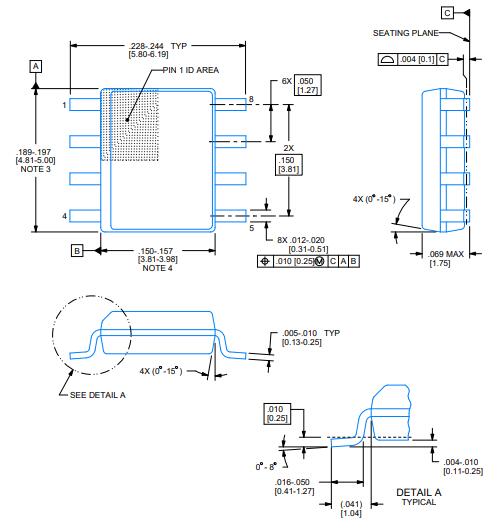

NE5532 Package information
