TLC555CP

TLC555CP

Texas Instruments

5V 555 Type, Timer/Oscillator (Single) Programmable Timers LinCMOS™ Series TLC555 8 Pins 2.1MHz 5V 8-DIP (0.300, 7.62mm)

Purchase Guide

5V 555 Type, Timer/Oscillator (Single) Programmable Timers LinCMOS™ Series TLC555 8 Pins 2.1MHz 5V 8-DIP (0.300, 7.62mm)

The TLC555 is a monolithic timing circuit fabricated using the TI LinCMOSE process. This article will introduce TLC555CP from the perspectives of datasheet, alternatives, specifications, and pinout.

In this video, The author will set up the 555 timer IC in astable mode and make an LED flash with an adjustable rate.

The 555 Timer in Astable Mode

TLC555CP Description

The 555 timer is a highly stable controller capable of producing accurate time delays or oscillation. The 555 can be used in countless applications and has three recognized operating modes. In monostable mode the 555 functions as a one-shot or pulse stretcher. Applications include timers, missing pulse detection, and bounce-free switches. In astable mode, the 555 can operate as an oscillator. Applications include LED and lamp flashers, pulse generation, logic clocks, tone generation, security alarms, and Pulse Width Modulation (PWM). In bistable mode, the 555 can operate as a flip-flop or changeover. Applications include bounce-free latched switches.

The TLC555 is a monolithic timing circuit fabricated using the TI LinCMOSE process. The timer is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2 MHz. Because of its high input impedance, this device uses smaller timing capacitors than those used by the NE555. As a result, more accurate time delays and oscillations are possible. Power consumption is low across the full range of power supply voltage.


TLC555CP CAD Models

Symbol


Footprint


3D Models


TLC555CP Pinout and Configurations


PIN
NumberNameDescription
1GNDGround
2THRESStart of timing input. TRIG < 1/2 CONT sets output high and discharge open.
3OUTHigh current timer output signal.
4RESETActive low reset input forces output and discharge low
5CONTControls comparator thresholds. Outputs 2/3 VDD and allows bypass capacitor connection.
6THRESEnd of timing input. THRES > CONT sets output low and discharges low.
7DISCHOpen collector output to discharge timing capacitor.
8VDDPower-supply voltage.


TLC555CP Applications

• Precision timing

• Pulse generation

• Sequential timing

• Time delay generation

• Pulse width modulation

• Pulse position modulation

Linear ramp generator


Specifications

Texas Instruments TLC555CP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TLC555CP.
  • Type
    Parameter
  • Lifecycle Status

    Lifecycle Status refers to the current stage of an electronic component in its product life cycle, indicating whether it is active, obsolete, or transitioning between these states. An active status means the component is in production and available for purchase. An obsolete status indicates that the component is no longer being manufactured or supported, and manufacturers typically provide a limited time frame for support. Understanding the lifecycle status is crucial for design engineers to ensure continuity and reliability in their projects.

    ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
    8 Weeks
  • Mount

    In electronic components, the term "Mount" typically refers to the method or process of physically attaching or fixing a component onto a circuit board or other electronic device. This can involve soldering, adhesive bonding, or other techniques to secure the component in place. The mounting process is crucial for ensuring proper electrical connections and mechanical stability within the electronic system. Different components may have specific mounting requirements based on their size, shape, and function, and manufacturers provide guidelines for proper mounting procedures to ensure optimal performance and reliability of the electronic device.

    Through Hole
  • Mounting Type

    The "Mounting Type" in electronic components refers to the method used to attach or connect a component to a circuit board or other substrate, such as through-hole, surface-mount, or panel mount.

    Through Hole
  • Package / Case

    refers to the protective housing that encases an electronic component, providing mechanical support, electrical connections, and thermal management.

    8-DIP (0.300, 7.62mm)
  • Number of Pins
    8
  • Weight
    440.409842mg
  • Operating Temperature

    The operating temperature is the range of ambient temperature within which a power supply, or any other electrical equipment, operate in. This ranges from a minimum operating temperature, to a peak or maximum operating temperature, outside which, the power supply may fail.

    0°C~70°C
  • Packaging

    Semiconductor package is a carrier / shell used to contain and cover one or more semiconductor components or integrated circuits. The material of the shell can be metal, plastic, glass or ceramic.

    Tube
  • Series

    In electronic components, the "Series" refers to a group of products that share similar characteristics, designs, or functionalities, often produced by the same manufacturer. These components within a series typically have common specifications but may vary in terms of voltage, power, or packaging to meet different application needs. The series name helps identify and differentiate between various product lines within a manufacturer's catalog.

    LinCMOS™
  • JESD-609 Code

    The "JESD-609 Code" in electronic components refers to a standardized marking code that indicates the lead-free solder composition and finish of electronic components for compliance with environmental regulations.

    e4
  • Pbfree Code

    The "Pbfree Code" parameter in electronic components refers to the code or marking used to indicate that the component is lead-free. Lead (Pb) is a toxic substance that has been widely used in electronic components for many years, but due to environmental concerns, there has been a shift towards lead-free alternatives. The Pbfree Code helps manufacturers and users easily identify components that do not contain lead, ensuring compliance with regulations and promoting environmentally friendly practices. It is important to pay attention to the Pbfree Code when selecting electronic components to ensure they meet the necessary requirements for lead-free applications.

    yes
  • Part Status

    Parts can have many statuses as they progress through the configuration, analysis, review, and approval stages.

    Active
  • Moisture Sensitivity Level (MSL)

    Moisture Sensitivity Level (MSL) is a standardized rating that indicates the susceptibility of electronic components, particularly semiconductors, to moisture-induced damage during storage and the soldering process, defining the allowable exposure time to ambient conditions before they require special handling or baking to prevent failures

    1 (Unlimited)
  • Number of Terminations
    8
  • ECCN Code

    An ECCN (Export Control Classification Number) is an alphanumeric code used by the U.S. Bureau of Industry and Security to identify and categorize electronic components and other dual-use items that may require an export license based on their technical characteristics and potential for military use.

    EAR99
  • Type
    555 Type, Timer/Oscillator (Single)
  • Terminal Finish

    Terminal Finish refers to the surface treatment applied to the terminals or leads of electronic components to enhance their performance and longevity. It can improve solderability, corrosion resistance, and overall reliability of the connection in electronic assemblies. Common finishes include nickel, gold, and tin, each possessing distinct properties suitable for various applications. The choice of terminal finish can significantly impact the durability and effectiveness of electronic devices.

    Nickel/Palladium/Gold (Ni/Pd/Au)
  • Max Power Dissipation

    The maximum power that the MOSFET can dissipate continuously under the specified thermal conditions.

    1W
  • Voltage - Supply

    Voltage - Supply refers to the range of voltage levels that an electronic component or circuit is designed to operate with. It indicates the minimum and maximum supply voltage that can be applied for the device to function properly. Providing supply voltages outside this range can lead to malfunction, damage, or reduced performance. This parameter is critical for ensuring compatibility between different components in a circuit.

    2V~15V
  • Terminal Position

    In electronic components, the term "Terminal Position" refers to the physical location of the connection points on the component where external electrical connections can be made. These connection points, known as terminals, are typically used to attach wires, leads, or other components to the main body of the electronic component. The terminal position is important for ensuring proper connectivity and functionality of the component within a circuit. It is often specified in technical datasheets or component specifications to help designers and engineers understand how to properly integrate the component into their circuit designs.

    DUAL
  • Number of Functions
    1
  • Supply Voltage

    Supply voltage refers to the electrical potential difference provided to an electronic component or circuit. It is crucial for the proper operation of devices, as it powers their functions and determines performance characteristics. The supply voltage must be within specified limits to ensure reliability and prevent damage to components. Different electronic devices have specific supply voltage requirements, which can vary widely depending on their design and intended application.

    5V
  • Terminal Pitch

    The center distance from one pole to the next.

    2.54mm
  • Current Rating

    Current rating is the maximum current that a fuse will carry for an indefinite period without too much deterioration of the fuse element.

    250A
  • Frequency

    In electronic components, the parameter "Frequency" refers to the rate at which a signal oscillates or cycles within a given period of time. It is typically measured in Hertz (Hz) and represents how many times a signal completes a full cycle in one second. Frequency is a crucial aspect in electronic components as it determines the behavior and performance of various devices such as oscillators, filters, and communication systems. Understanding the frequency characteristics of components is essential for designing and analyzing electronic circuits to ensure proper functionality and compatibility with other components in a system.

    2.1MHz
  • Base Part Number

    The "Base Part Number" (BPN) in electronic components serves a similar purpose to the "Base Product Number." It refers to the primary identifier for a component that captures the essential characteristics shared by a group of similar components. The BPN provides a fundamental way to reference a family or series of components without specifying all the variations and specific details.

    TLC555
  • Pin Count

    a count of all of the component leads (or pins)

    8
  • Operating Supply Voltage

    The voltage level by which an electrical system is designated and to which certain operating characteristics of the system are related.

    2.5V
  • Power Supplies

    an electronic circuit that converts the voltage of an alternating current (AC) into a direct current (DC) voltage.?

    5V
  • Supply Voltage-Min (Vsup)

    The parameter "Supply Voltage-Min (Vsup)" in electronic components refers to the minimum voltage level required for the component to operate within its specified performance range. This parameter indicates the lowest voltage that can be safely applied to the component without risking damage or malfunction. It is crucial to ensure that the supply voltage provided to the component meets or exceeds this minimum value to ensure proper functionality and reliability. Failure to adhere to the specified minimum supply voltage may result in erratic behavior, reduced performance, or even permanent damage to the component.

    2V
  • Operating Supply Current

    Operating Supply Current, also known as supply current or quiescent current, is a crucial parameter in electronic components that indicates the amount of current required for the device to operate under normal conditions. It represents the current drawn by the component from the power supply while it is functioning. This parameter is important for determining the power consumption of the component and is typically specified in datasheets to help designers calculate the overall power requirements of their circuits. Understanding the operating supply current is essential for ensuring proper functionality and efficiency of electronic systems.

    360μA
  • Nominal Supply Current

    Nominal current is the same as the rated current. It is the current drawn by the motor while delivering rated mechanical output at its shaft.

    360μA
  • Power Dissipation

    the process by which an electronic or electrical device produces heat (energy loss or waste) as an undesirable derivative of its primary action.

    1W
  • Output Current

    The rated output current is the maximum load current that a power supply can provide at a specified ambient temperature. A power supply can never provide more current that it's rated output current unless there is a fault, such as short circuit at the load.

    15mA
  • Quiescent Current

    The quiescent current is defined as the current level in the amplifier when it is producing an output of zero.

    250μA
  • Number of Timers/Counters
    1
  • Supply Current-Max (Isup)

    Supply Current-Max (Isup) refers to the maximum amount of current that an electronic component can draw from its power supply during operation. It represents the peak current demand of the device under normal operating conditions and is critical for ensuring that the power supply can adequately support the component's needs without risking damage or malfunction. This parameter is essential for designing circuits and selecting appropriate power supply units to prevent overloading and ensure reliable performance.

    0.4mA
  • High Level Output Current

    High-level Output Current IOH The current flowing into the output at a specified high- level voltage. Low-level Output Current IOL The current flowing into the output at a specified low- level output voltage.

    -10mA
  • Low Level Output Current

    The current into the output terminal with input conditions applied that, according to the product specification, will establish a low level at the output.

    100mA
  • Height
    5.08mm
  • Length
    9.81mm
  • Width
    6.35mm
  • Thickness

    Thickness in electronic components refers to the measurement of how thick a particular material or layer is within the component structure. It can pertain to various aspects, such as the thickness of a substrate, a dielectric layer, or conductive traces. This parameter is crucial as it impacts the electrical, mechanical, and thermal properties of the component, influencing its performance and reliability in electronic circuits.

    3.9mm
  • REACH SVHC

    The parameter "REACH SVHC" in electronic components refers to the compliance with the Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) regulation regarding Substances of Very High Concern (SVHC). SVHCs are substances that may have serious effects on human health or the environment, and their use is regulated under REACH to ensure their safe handling and minimize their impact.Manufacturers of electronic components need to declare if their products contain any SVHCs above a certain threshold concentration and provide information on the safe use of these substances. This information allows customers to make informed decisions about the potential risks associated with using the components and take appropriate measures to mitigate any hazards.Ensuring compliance with REACH SVHC requirements is essential for electronics manufacturers to meet regulatory standards, protect human health and the environment, and maintain transparency in their supply chain. It also demonstrates a commitment to sustainability and responsible manufacturing practices in the electronics industry.

    No SVHC
  • Radiation Hardening

    Radiation hardening is the process of making electronic components and circuits resistant to damage or malfunction caused by high levels of ionizing radiation, especially for environments in outer space (especially beyond the low Earth orbit), around nuclear reactors and particle accelerators, or during nuclear accidents or nuclear warfare.

    No
  • RoHS Status

    RoHS means “Restriction of Certain Hazardous Substances” in the “Hazardous Substances Directive” in electrical and electronic equipment.

    ROHS3 Compliant
  • Lead Free

    Lead Free is a term used to describe electronic components that do not contain lead as part of their composition. Lead is a toxic material that can have harmful effects on human health and the environment, so the electronics industry has been moving towards lead-free components to reduce these risks. Lead-free components are typically made using alternative materials such as silver, copper, and tin. Manufacturers must comply with regulations such as the Restriction of Hazardous Substances (RoHS) directive to ensure that their products are lead-free and environmentally friendly.

    Lead Free
0 Similar Products Remaining

TLC555CP Features

  • Very Low Power Consumption

− 1 mW Typ at VDD = 5 V

  • Capable of Operation in Astable Mode

  • CMOS Output Capable of Swinging Rail to Rail

  • High Output-Current Capability

− Sink 100 mA Typ

− Source 10 mA Typ

  • Output Fully Compatible With CMOS, TTL, and MOS

  • Low Supply Current Reduces Spikes During Output Transitions

  • Single-Supply Operation From 2V to 15V

  • Functionally Interchangeable With the NE555; Has Same Pinout

  • ESD Protection Exceeds 2000 V Per MIL-STD-883C, Method 3015.2

  • Available in Q-Temp Automotive

- High-Reliability Automotive Applications

- Configuration Control/Print Support

- Qualification to Automotive Standards


TLC555CP Manufacturer

Texas Instruments Inc. (TI) is an American technology company that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. Its headquarters are in Dallas, Texas, United States. TI is one of the top ten semiconductor companies worldwide, based on sales volume. Texas Instruments's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing (DLP) technology and education technology products including calculators, microcontrollers, and multi-core processors.


TLC555CP Block Diagram

block diagram.jpg

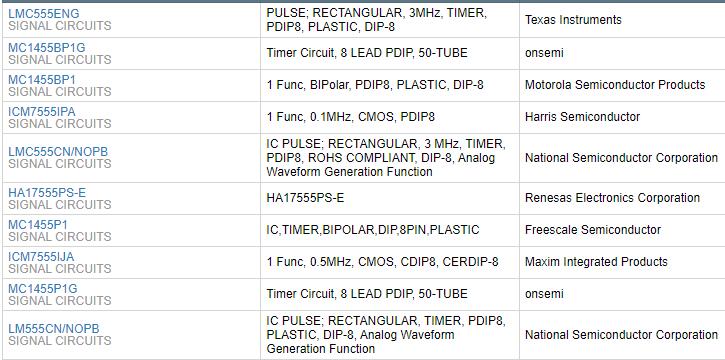

TLC555CP Alternatives


TLC555CP vs LMC555CN


LMC555CNTLC555CP
Rohs CodeNoYes
Part Life Cycle CodeTransferredActive
Package DescriptionDIP-8DIP, DIP8,.3
Reach Compliance Codenot_compliantcompliant
ECCN CodeEAR99EAR99
HTS Code8542.39.00.018542.39.00.01
Analog IC - Other TypePULSE; RECTANGULARPULSE; RECTANGULAR
JESD-30 CodeR-PDIP-T8R-PDIP-T8
JESD-609 Codee0e4
Length9.817 mm9.81 mm
Moisture Sensitivity Level1
Number of Functions11
Number of Terminals88
Operating Temperature-Max85 °C70 °C
Operating Temperature-Min-40 °C
Output Frequency-Max3 MHz1.2 MHz
Package Body MaterialPLASTIC/EPOXYPLASTIC/EPOXY
Package CodeDIPDIP
Package Equivalence CodeDIP8,.3DIP8,.3
Package ShapeRECTANGULARRECTANGULAR
Package StyleIN-LINEIN-LINE
Peak Reflow Temperature (Cel)260NOT SPECIFIED
Power Supplies5 V5 V
Qualification StatusNot QualifiedNot Qualified
Seated Height-Max5.08 mm5.08 mm
Supply Voltage-Max (Vsup)12 V15 V
Supply Voltage-Min (Vsup)1.5 V2 V
Supply Voltage-Nom (Vsup)5 V5 V
Surface MountNONO
TechnologyCMOSCMOS
Temperature GradeINDUSTRIALCOMMERCIAL
Terminal FinishTin/Lead (Sn/Pb)Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal FormTHROUGH-HOLETHROUGH-HOLE
Terminal Pitch2.54 mm2.54 mm
Terminal PositionDUALDUAL
Time@Peak Reflow Temperature-Max (s)40NOT SPECIFIED
Width7.62 mm7.62 mm
Base Number Matches21
Pb-free Code
Yes
Part Package Code
DIP
Pin Count
8
Supply Current-Max (Isup)
0.4 mA


Trend Analysis

Datasheet PDF

Download datasheets and manufacturer documentation for Texas Instruments TLC555CP.

Parts with Similar Specs

The three parts on the right have similar specifications to Texas Instruments & TLC555CP.
Frequently Asked Questions

What is TLC555?

The TLC555 is a monolithic timing circuit fabricated using the TI LinCMOSE process.

What’s TLC555CP minimum operating temperature?

-40℃

What’s TLC555CP minimum supply voltage?

2v

What’s TLC555CP High Level Output Current?

100 mA

What’s TLC555CP Operating Supply Current?

250 uA
