74HC595N Shift Register: Pinout, Datasheet, and Functional Logic Diagram

Q: 1.What is 74HC595N?

The 74HC595N is a shift register that works on Serial IN Parallel OUT protocol. It receives data serially from the microcontroller and then sends out this data through parallel pins. We can increase our output pins by 8 using the single chip. We can also connect more than 1 shift register in parallel.

Q: 2.What does a shift register do?

A shift register is a type of digital circuit using a cascade of flip flops where the output of one flip-flop is connected to the input of the next. They share a single clock signal, which causes the data stored in the system to shift from one location to the next.

Sophie

Published: 27 August 2021 | Last Updated: 27 August 2021

14544

74HC595N

HTC Korea TAEJIN Tech

74HC595N datasheet pdf and Unclassified product details from HTC Korea TAEJIN Tech stock available at Utmel

Purchase Guide

The 74HC595N contains an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type latch with parallel 3-state outputs.

In the third Arduino Tutorial I discuss one of the many ways that you can expand your outputs on the Arduino. In this case, by using a shift register, I am able to use three Arduino pins to control 8 LEDs.

Arduino Tutorial #3 - Shift Registers (74HC595)

Catalog

74HC595N Description

The 74HC595N contains an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type latch with parallel 3-state outputs. Separate clocks are provided for both the shift register and latch. The shift register has a direct overriding clear input, serial input, and serial outputs for cascading. The 74HC595N also has an asynchronous reset for the shift register.

74HC595N Pinout

74HC595N Pinout.jpg

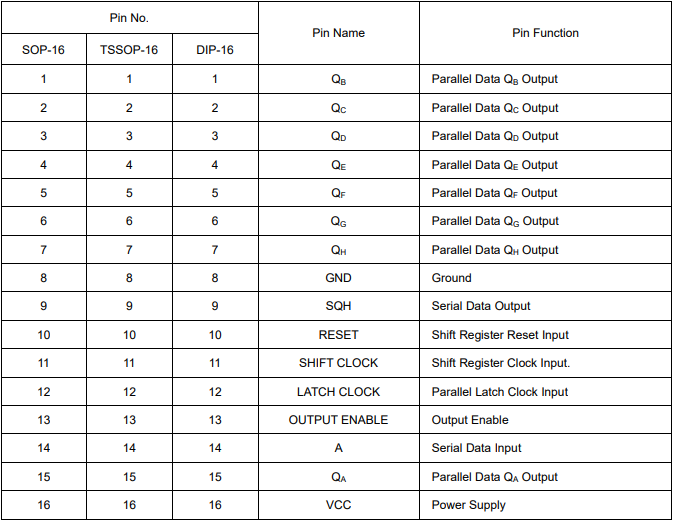

74HC595N Pin Description.png

74HC595N CAD Model

Symbol

74HC595N Symbol.png

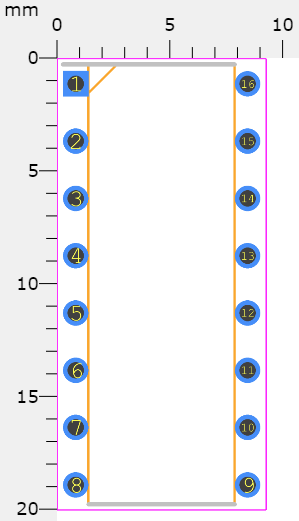

Footprint

74HC595N Footprint.png

3D Model

74HC595N 3D Model.jpg

74HC595N Features

Wide Operating Voltage Range of 2 V to 6 V
8-Bit Serial-Input, Serial or Parallel-Out Shift
Outputs Directly Interface to CMOS, NMOS, and TTL
Low Input Current: 1 µA
High Noise Immunity Characteristic of CMOS Devices

Specifications

HTC Korea TAEJIN Tech 74HC595N technical specifications, attributes, parameters and parts with similar specifications to HTC Korea TAEJIN Tech 74HC595N.

Type
Parameter
Package / Case
refers to the protective housing that encases an electronic component, providing mechanical support, electrical connections, and thermal management.
DIP-16
Packaging
Semiconductor package is a carrier / shell used to contain and cover one or more semiconductor components or integrated circuits. The material of the shell can be metal, plastic, glass or ceramic.
Tube-packed
RoHS Status
RoHS means “Restriction of Certain Hazardous Substances” in the “Hazardous Substances Directive” in electrical and electronic equipment.
RoHS Compliant

0 Similar Products Remaining

74HC595N Block Diagram

74HC595N Block Diagram.png

74HC595N Functional Logic Diagram

74HC595N Functional Logic Diagram.png

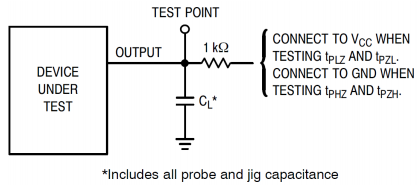

74HC595N Test Circuits

74HC595N Test Circuits1.png 74HC595N Test Circuits2.png

74HC595N Applications

Network Switches
Power Infrastructure
LED Displays
Servers
Serial-to-Parallel Data Conversion
Remote Control Holding Register

74HC595N Manufacturer

TAEJIN Technology Co., Ltd was incorporated in 2000 with aim of becoming the world leader in the Power Management IC industry. The brand name "HTC Korea" was created by TAEJIN Technology to meet customer's goals by using highly diversified R&D technology. HTC Korea is well-known for its high-quality products in the Asian market and targets three major sectors: Communication, Consumer, and Computer. HTC Korea has been promoting its products in cooperation with worldwide sales partners in China, Japan, Hong Kong, Singapore, Taiwan, and India.

Frequently Asked Questions

1.What is 74HC595N?

The 74HC595N is a shift register that works on Serial IN Parallel OUT protocol. It receives data serially from the microcontroller and then sends out this data through parallel pins. We can increase our output pins by 8 using the single chip. We can also connect more than 1 shift register in parallel.

2.What does a shift register do?

A shift register is a type of digital circuit using a cascade of flip flops where the output of one flip-flop is connected to the input of the next. They share a single clock signal, which causes the data stored in the system to shift from one location to the next.
