TMC2100 Stepper Motor Driver[Video]: TMC2100 VS TMC2130 VS TMC2208, Pinout, and Datasheet

For 3D printing, cameras, scanners, and other automated equipment applications, the TMC2100 delivers an integrated motor driver solution. The device is designed to operate a bipolar stepper motor and includes an integrated microstepping indexer as well as the entirely noiseless current control mode StealthChopTM. To drive the motor windings, the output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges. Each of the TMC2100's outputs may drive up to 2.5A of current (with proper heatsinking). The TMC2100 is designed to work with a 546V supply voltage. The gadget features a step and direction interface and digital pins that can be adjusted.

• Hardware compatible with StepStick and Pololu A4988 Stepper Driver

• Components on the bottom PCB side for better heat emission

• Automatic standby current reduction

• StealthChop - for quiet operation and smooth motion

• SpreadCycle - highly dynamic motor control chopper

• Drive capability up to 1.2A (RMS) continuous coil current

• Step/Dir interface with micro-step interpolation (up to 256 micro steps)

• Configuration via CFG pins

TMC2100 Pinout

Pin Descriptions

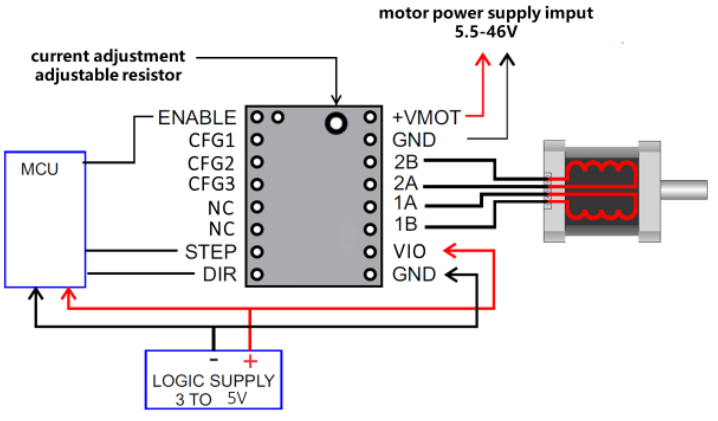

TMC2100 Wiring Diagram

Measuring the voltage on the Vref pin (0...2.5V) and adjusting the voltage with the potentiometer is the best technique to set the motor current. The greatest motor current that can be set is 1.77A RMS (0.11Ohm sensing resistors), while the SilentStepSticks can only handle 1.2A RMS.

• 3D-Printing

• Cameras

• Scanners

• Other automated equipment applications

SpreadCycle and StealthChop are two of the TMC2100's operation modes. The TMC2130 is similar to the TMC2130, however, it has more operation modes and stall detection. The TMC2208 is identical to the TMC2100, but it has a UART interface and a StealthChop 2 operation mode. This chip is also less difficult to install, and it can be utilized without any firmware updates! Additionally, the major differences between the TMC2100, TMC2130, and TMC2208 are their driver current. The driver current of TMC2100 is up to 1.7A, while the driver current of TMC2130 and TMC2208 is up to 2A.

• TMC2100 Datasheet

• TMC2130 Datasheet

• TMC2208 Datasheet
