Stop Struggling with Weak Sensor Signals: AD8338 Makes High-Gain Amplification Dead Simple

The Problem This Solves — and Why AD8338 Is the Answer

You’re building a long-range ultrasonic distance sensor or a DIY metal detector, and the signal coming back is so tiny your Arduino’s ADC can’t even "see" it. You try a standard op-amp, but the gain is fixed, and as soon as the signal gets a little stronger, it clips and ruins your data.

The AD8338 is the "automatic volume knob" your project has been missing. It is a Variable Gain Amplifier (VGA) that allows you to adjust signal strength on the fly, boosting faint whispers into clear data without the distortion of a standard fixed-gain circuit.

• What it does in plain English: It takes a tiny, messy electrical signal and makes it up to 10,000 times stronger, controlled by a simple voltage from your microcontroller.

• Who it's perfect for: Makers working with RF, ultrasonic transducers, inductive coils, or anyone needing to "normalize" a signal before it hits an ADC.

• Why not just use a standard Op-Amp? Standard op-amps have fixed gain; if your input signal changes, your output might be too small or too large. The AD8338 lets you adjust that gain dynamically (AGC).

• Availability note: Widely available from major distributors; look for "AD8338 breakout boards" if you aren't ready to solder tiny LFCSP chips!

1. Meet the AD8338: What's Inside the Package?

Imagine you're trying to record a conversation in a noisy room. You need to turn the mic up when people whisper and down when they shout. That is exactly what the AD8338 does for your electronics.

1.1 The Core Capability in Plain English

The AD8338 is a "Linear-in-dB" amplifier. This means that for every small increase in the control voltage you send it, the gain increases by a predictable amount of decibels. It handles "differential" signals, which is a fancy way of saying it’s great at ignoring electrical noise from your power supply or nearby motors.

1.2 The Numbers That Actually Matter

1.3 What Can It Talk To?

The AD8338 "speaks" analog. It takes an analog signal in, and you control its gain using an analog voltage (which you can easily create using a PWM pin and a low-pass filter or a DAC pin on an ESP32).

2. Wiring It Up: Pinout and Connections

Because the AD8338 comes in a tiny 3mm x 3mm package, most makers will use a breakout board. Here is how to get it talking to your favorite microcontroller.

2.1 The Pins You'll Actually Use

2.2 Which Version Should You Buy?

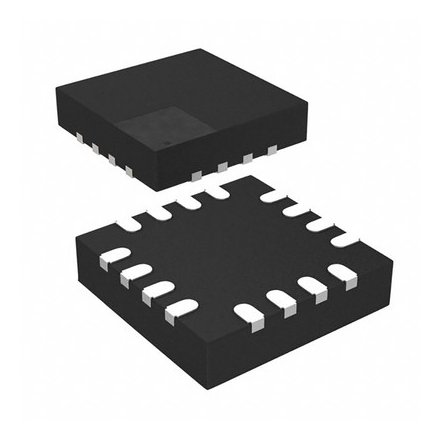

The AD8338 comes in an LFCSP package. This is NOT breadboard-friendly. Pro Tip: Look for "AD8338 Module" on Amazon or eBay. These modules include the necessary capacitors and resistors already soldered down, saving you a massive headache.

3. Getting It Running: Setup and Configuration

Maker Tip: Always check your GAIN voltage with a multimeter before connecting the output to your ADC. If the gain is too high, the output might stay at the rail voltage, making you think the chip is dead!

3.1 Minimum Viable Circuit

To keep the AD8338 stable, you need 0.1µF decoupling capacitors on the VCC line. If you are using it at high gain (>50dB), keep your input wires as short as possible to prevent the chip from picking up radio interference and oscillating.

3.2 Starter Code

This snippet shows how to sweep the gain of the AD8338 using an Arduino to find the "sweet spot" for your sensor.

// AD8338 Gain Sweep Example
// This uses PWM to control the gain pin via a simple RC filter
const int gainPin = 3; // Connect to GAIN pin through a 10k resistor/1uF cap filter

void setup() {
  pinMode(gainPin, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  for (int level = 0; level <= 255; level++) {
    analogWrite(gainPin, level); // Increasing voltage = Increasing gain
    Serial.print("Current Gain Level: ");
    Serial.println(level);
    delay(100);
  }
}

3.3 The 3 Most Common Mistakes (and How to Avoid Them)

4. Project Ideas: What Can You Build?

4.1 Quick-Start Project: The "Super-Ear" Ultrasonic Receiver

Using a 40kHz ultrasonic transducer and the AD8338, you can build a receiver that detects leaks in compressed air lines or "hears" bats from across a yard. Because the AD8338 can boost the signal by 80dB, you'll pick up sounds that standard Arduino ultrasonic modules would completely miss. Use the ESP32's ADC to sample the output and display the waveform on an OLED screen.

4.2 More Ideas to Explore

• Inductive Telemetry: Read data transmitted wirelessly through coils of wire.

• Hidden Wire Finder: Build a tool to find AC wiring behind walls by amplifying the 50/60Hz hum.

• DIY Lightning Detector: Use a long wire antenna and the AD8338 to "hear" the radio bursts from distant storms.

• Signal Compressor: Automatically level out audio signals before they enter a recording device.

5. When AD8338 Isn't Enough — Alternatives

• If you need even more bandwidth: Try the AD8330 (up to 150 MHz).

• If you need a simpler TI alternative: The VCA810 offers a similar wide gain range.

• If you need multiple channels: The VCA2612 is a dual-channel version often used in medical imaging.

6. Maker FAQ

• Q: How do I connect AD8338 to an Arduino?

• A: Connect VCC to 5V, GND to GND, and use a PWM pin with a low-pass filter to drive the GAIN pin.

• Q: Can I use AD8338 with a 3.3V system like ESP32?

• A: Yes! It operates perfectly down to 3.0V.

• Q: Why is my AD8338 getting hot?

• A: Check for a short circuit on the output or ensure your supply voltage doesn't exceed 5.5V.

• Q: Do I need a differential signal?

• A: No. You can tie the negative input (INN) to ground for "single-ended" use, though differential is cleaner.

7. Go Build Something

The AD8338 is one of those "secret weapon" chips that takes a project from "it barely works" to "pro-level performance." Whether you're hunting for lightning or building a high-tech metal detector, this VGA is your best friend for signal conditioning.

• Libraries & Code: No library needed! Just use analogWrite() or dacWrite().

• Community: Share your high-gain builds on r/arduino or Hackaday.io!
