AD5245 Digital Potentiometer: Specs, Application Fit, and I2C Design Cautions

When transitioning from mechanical potentiometers to solid-state solutions, engineers prioritize reliability, footprint, and power efficiency. The AD5245 from Analog Devices is a 256-position, I2C-compatible digital potentiometer designed to meet these requirements. Packaged in a highly compact SOT-23-8 footprint (2.9 mm × 3 mm), it performs the same electronic adjustment functions as a traditional mechanical variable resistor but eliminates the physical wear, vibration sensitivity, and bulk associated with mechanical parts.

Beyond its size, the AD5245 is defined by its low power consumption and versatile single-supply operation, making it highly suitable for battery-powered, portable, and precision-calibration applications.

Key Specifications and Performance

The AD5245 is selected primarily for designs where board space is at a premium but 8-bit resolution (256 positions) is required. It is available in multiple end-to-end resistance options—5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ—allowing designers to match the impedance requirements of their specific signal chain.

A crucial feature for system stability is the power-on preset to midscale, which ensures predictable behavior during initial boot sequences before the I2C master takes control.

Target Applications

Because it combines a low temperature coefficient with solid-state reliability, the AD5245 is frequently deployed in scenarios where mechanical adjustments are either impractical or prone to failure.

Common implementation areas include:

Display Calibration: LCD panel VCOM adjustment, as well as digital control of brightness and contrast.

Sensor Interfacing: Transducer adjustment for pressure, temperature, position, chemical, and optical sensors, where precise calibration is necessary to offset manufacturing tolerances.

RF Design: RF amplifier biasing, where stable resistance is required to maintain proper operating points across temperature shifts.

General Analog Control: Gain control, offset adjustment, and automotive electronics calibration.

Critical Design Cautions and Troubleshooting

While the AD5245 is a robust component, field data and application testing reveal a few specific implementation traps that can cause unpredictable behavior or signal degradation. Designers should integrate the following mitigations into their schematics.

1. I2C Bus Device Limitations

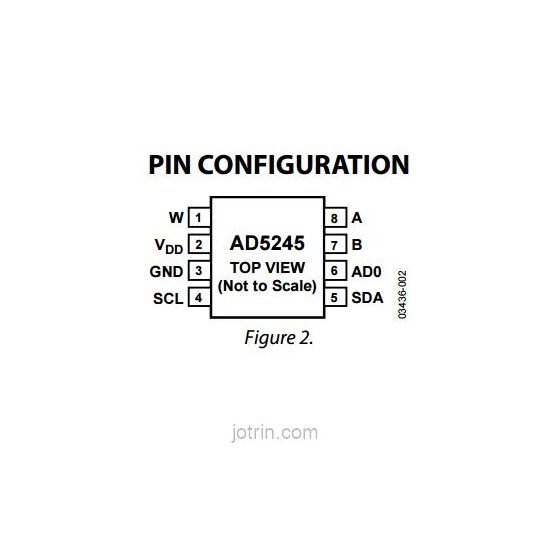

The AD5245 features a single address pin (AD0). Consequently, only two AD5245 devices can be independently addressed and controlled on a single I2C bus.

The Fix: If your design requires three or more of these digital potentiometers, you must implement an I2C multiplexer (such as a TCA9548A) or utilize secondary I2C buses on your host microcontroller.

2. Floating AD0 Pin Instability

The input stage of the AD0 address pin is not tri-stated. Leaving this pin floating will lead to an indeterminant logic state, causing the device to randomly drop off the I2C bus or fail to acknowledge commands.

The Fix: Always explicitly tie the AD0 pin to either system ground or the power supply (VDD). Never leave it unconnected.

3. AC Signal Amplitude Errors

When using the AD5245 in a voltage output configuration with AC signals (such as a 10 kHz sinusoidal input), some designers have reported a 15% to 25% error in peak-to-peak amplitude. This is rarely a flaw in the resistor ladder itself; rather, it is typically caused by power supply noise coupling into the internal circuitry.

The Fix: Implement rigorous filtering on the VDD pin. A standard 0.1 µF ceramic bypass capacitor placed as close to the supply pin as possible is mandatory, and an additional 10 µF tantalum capacitor is recommended for environments with high power supply noise.

Sourcing Context and Alternatives

The digital potentiometer market is highly competitive. While Analog Devices is a premier manufacturer of precision analog components, supply chain constraints or alternative architectural needs (such as SPI interfaces, non-volatile memory, or multi-channel integration) may require looking at other vendors.

If the AD5245 does not perfectly fit your bill of materials, comparable digital potentiometers are manufactured by Microchip Technology, Texas Instruments, Infineon, Broadcom, and Renesas Electronics. When evaluating alternatives, be sure to compare the specific I2C addressing capabilities, as well as the power-on default states (midscale vs. zero-scale), to ensure a true drop-in replacement.
