STMicroelectronics STM32F051R8T7 Microcontroller Overview: Features and Applications

The STM32F051R8T7 microcontroller stands out as an entry-level option in the STM32 F0 series. It features an ARM Cortex-M0 core running at 48 MHz, delivering reliable processing power for your projects. This microcontroller is ideal for embedded system applications, offering a perfect mix of performance, low power consumption, and affordability. Whether you're designing compact devices or learning about microcontrollers, this model ensures efficiency without compromising on cost.

What is the STM32F051R8T7 Microcontroller?

Overview of the STM32 F0 Series

The STM32 F0 series, developed by STMicroelectronics, is designed to offer a cost-effective entry point into the world of 32-bit microcontrollers. These devices are built around the ARM Cortex-M0 core, which provides a balance of simplicity and performance. You’ll find that the F0 series is ideal for applications requiring low power consumption, compact designs, and reliable operation. Its architecture ensures compatibility with higher-end STM32 families, making it a great starting point for scalable projects.

Key features of the STM32 F0 series include:

• Low power consumption for energy-efficient designs.

• A wide range of peripherals to support diverse applications.

• Affordable pricing, making it accessible for both professionals and hobbyists.

The STM32F051R8T7 belongs to this series and exemplifies its strengths, offering a robust feature set tailored for embedded systems.

Key Characteristics of the STM32F051R8T7

The STM32F051R8T7 microcontroller unit (MCU) combines essential features with affordability, making it a standout choice in the F0 series. Its technical specifications highlight its entry-level positioning while ensuring reliable performance for various applications. Here’s a quick overview of its key characteristics:

This microcontroller offers a solid foundation for embedded systems. Its ARM Cortex-M0 core ensures efficient processing, while the 48 MHz clock speed provides sufficient performance for most entry-level applications. The inclusion of multiple communication interfaces, such as I2C, SPI, and USART, enhances its versatility. Additionally, its low power consumption and compact design make it suitable for space-constrained and battery-powered devices.

Role in Embedded Systems

The STM32F051R8T7 plays a vital role in embedded systems by delivering a combination of performance, accuracy, and power efficiency. Its architecture supports a wide range of applications, from consumer electronics to industrial automation. You can rely on its 12-bit ADC and DAC for precise analog signal processing, which is crucial for applications requiring high accuracy. The advanced timers and PWM capabilities make it ideal for motor control and other time-sensitive tasks.

This microcontroller’s low power modes and wide operating temperature range (-40°C to +105°C) ensure reliable operation in challenging environments. Whether you’re building IoT devices, smart home systems, or educational prototypes, the STM32F051R8T7 provides the tools you need to succeed.

Key Features of the STM32F051R8T7

ARM Cortex-M0 Core and Processing Power

The STM32F051R8T7 microcontroller is powered by the ARM Cortex-M0 core, which delivers efficient processing for entry-level applications. With a clock speed of up to 48 MHz, you can achieve reliable performance for tasks that require moderate computational power. The Cortex-M0 architecture is optimized for simplicity, making it easier for you to develop embedded systems without the complexity of higher-end cores.

This core supports 32-bit processing, ensuring compatibility with modern software tools and libraries. Its reduced instruction set computing (RISC) design minimizes power consumption while maintaining sufficient processing capabilities. Whether you're working on consumer electronics or prototyping IoT devices, the ARM Cortex-M0 core provides the foundation for smooth operation and dependable performance.

Memory and Storage Specifications

The STM32F051R8T7 offers a balanced memory configuration that supports efficient data handling and storage. It includes up to 64 Kbytes of flash memory, allowing you to store your application code and firmware securely. Additionally, the microcontroller features 8 Kbytes of SRAM, which ensures fast access to temporary data during runtime.

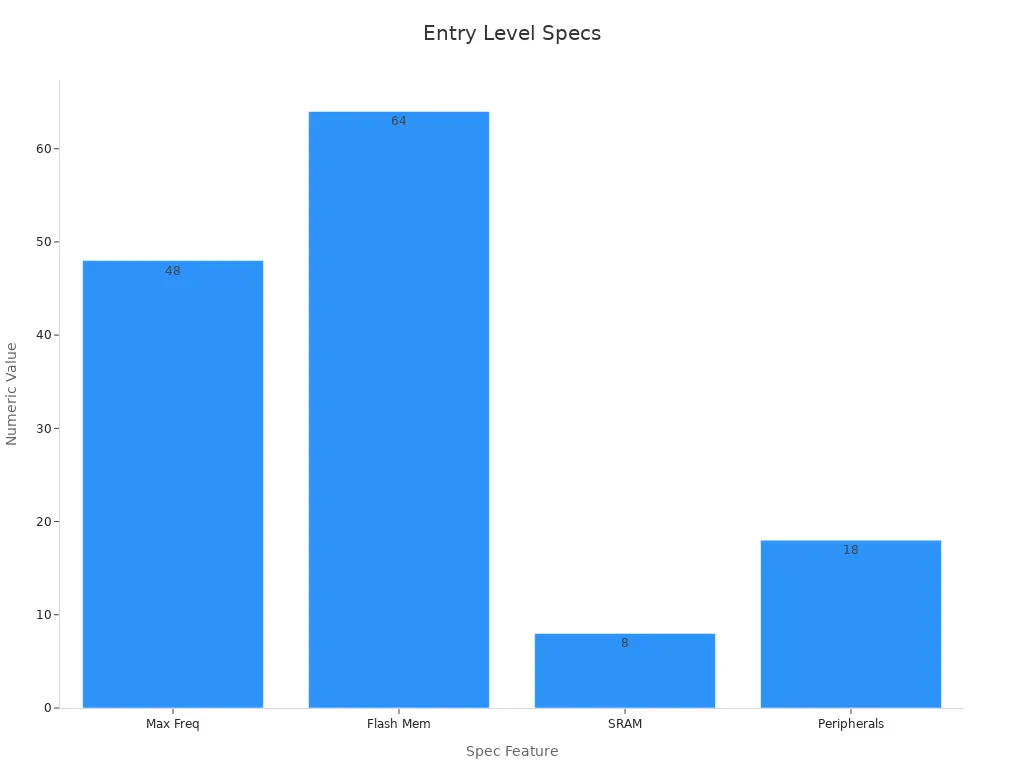

Here’s a detailed breakdown of its memory specifications:

The flash memory provides ample space for small to medium-sized applications, while the SRAM ensures smooth execution of your programs. This combination of memory and storage makes the STM32F051R8T7 suitable for applications requiring efficient data management, such as industrial automation and smart devices.

Peripheral and I/O Capabilities

The STM32F051R8T7 excels in its peripheral and I/O capabilities, offering a wide range of features to support diverse applications. With up to 55 fast I/O pins, you can connect multiple external components and sensors to your system. The microcontroller includes advanced peripherals like a 12-bit ADC and DAC, which enable precise analog signal processing.

Here’s a closer look at its peripheral and I/O features:

The ADC and DAC provide high-resolution analog-to-digital and digital-to-analog conversions, making this microcontroller ideal for applications like sensor data processing and audio signal generation. The inclusion of multiple communication interfaces, such as I2C, SPI, and USART, ensures seamless connectivity with external devices. These peripherals enhance the versatility of the STM32F051R8T7, allowing you to build complex systems with ease.

Power efficiency and management features

Power efficiency is a critical aspect of any microcontroller, especially when designing systems that rely on batteries or operate in energy-constrained environments. The STM32F051R8T7 microcontroller excels in this area by offering several features that help you optimize power consumption without sacrificing performance.

Low Power Modes

The STM32F051R8T7 includes multiple low power modes that allow you to reduce energy usage during periods of inactivity. These modes include:

• Sleep Mode: The CPU stops while peripherals like timers and communication interfaces remain active. This mode is ideal for tasks that require periodic activity.

• Stop Mode: The microcontroller enters a deep sleep state, halting most operations while retaining SRAM data. This mode is useful for applications that need to conserve power during long idle periods.

• Standby Mode: The lowest power state, where only essential components like the real-time clock (RTC) remain active. This mode is perfect for devices that need to wake up occasionally, such as IoT sensors.

Tip: You can switch between these modes dynamically based on your application's requirements. This flexibility helps you balance power efficiency and responsiveness.

Voltage Scaling and Power Supply Options

The STM32F051R8T7 supports a wide operating voltage range of 2.0V to 3.6V. This flexibility allows you to use different power sources, such as batteries or regulated power supplies. The microcontroller also features an internal voltage regulator that ensures stable operation across varying conditions.

Peripheral Power Management

Efficient power management extends to the microcontroller's peripherals. You can enable or disable specific peripherals based on your application's needs. For example, if your system doesn't require the ADC or DAC, you can turn them off to save power. This granular control over peripheral activity ensures that you only consume energy where it's needed.

Real-Time Clock (RTC) and Backup Registers

The built-in RTC operates independently of the main power supply, allowing you to maintain accurate timekeeping even in low power modes. Backup registers store critical data, ensuring that your system can recover seamlessly after a power cycle.

Practical Applications of Power Efficiency

The power management features of the STM32F051R8T7 make it suitable for a wide range of applications. For instance:

• Battery-Powered Devices: Extend battery life in portable gadgets by leveraging low power modes.

• IoT Sensors: Use standby mode to conserve energy while maintaining connectivity.

• Industrial Systems: Optimize energy usage in systems that require continuous operation.

By understanding and utilizing these features, you can design systems that are both energy-efficient and high-performing. The STM32F051R8T7 gives you the tools to achieve this balance, whether you're working on a small prototype or a large-scale project.

Unique Attributes of the STM32F051R8T7 Microcontroller

Cost-effectiveness and accessibility

The STM32F051R8T7 microcontroller offers an excellent balance between price and performance. Its ARM Cortex-M0 core, operating at 48 MHz, ensures reliable processing power for a wide range of applications. With up to 64 Kbytes of flash memory and 8 Kbytes of SRAM, it provides sufficient resources for small to medium-sized projects. This robust feature set makes it a cost-effective choice for developers working on a budget.

You’ll find this microcontroller accessible due to its long-term availability, ensuring support for ongoing projects. Its affordability and robust features make it a popular choice among professionals and hobbyists alike.

Compact design for space-constrained applications

The STM32F051R8T7 is designed with compactness in mind, making it ideal for devices where space is limited. It comes in multiple package options, including 32-pin and 64-pin configurations, allowing you to choose the best fit for your project.

This microcontroller integrates a variety of peripherals, reducing the need for additional components on your boards. Its small size and efficient design make it perfect for applications like wearable devices, portable gadgets, and other space-constrained systems.

Integration with STM32 development tools

STMicroelectronics provides a comprehensive suite of development tools to support the STM32F051R8T7. These tools simplify programming and debugging, helping you bring your ideas to life faster. The STM32Cube ecosystem includes software libraries, configuration tools, and example projects tailored for this microcontroller.

Tip: Use STM32CubeMX to configure peripherals and generate initialization code effortlessly.

You can also leverage STM32 Nucleo boards for prototyping and testing. These boards offer compatibility with a wide range of shields and accessories, making them a versatile choice for development. Whether you’re a beginner or an experienced developer, these tools streamline your workflow and enhance productivity.

Comparison with Other Microcontrollers

STM32F051R8T7 vs. other STM32 models

When comparing the STM32F051R8T7 to other STM32 models, you’ll notice its focus on simplicity and cost-effectiveness. While higher-end STM32 models, like the STM32F4 series, offer advanced features such as higher clock speeds and more memory, the STM32F051R8T7 excels in energy efficiency and affordability. This makes it ideal for entry-level applications.

Here’s a quick comparison of key specifications:

The STM32F051R8T7’s simpler architecture reduces power consumption, making it suitable for battery-powered devices. Its wide operating temperature range (-40°C to +105°C) ensures reliability in harsh environments, which is a shared strength across STM32 models.

STM32F051R8T7 vs. AVR and PIC microcontrollers

The STM32F051R8T7 stands out when compared to AVR and PIC microcontrollers due to its 32-bit ARM Cortex-M0 core. AVR and PIC microcontrollers often use an 8-bit or 16-bit architecture, which limits their processing power. The STM32F051R8T7’s 32-bit architecture allows you to handle more complex tasks and larger data sets efficiently.

Key differences include:

• Processing Power: The STM32F051R8T7 operates at 48 MHz, while many AVR and PIC models run at lower frequencies.

• Memory: With up to 64 Kbytes of flash memory, the STM32F051R8T7 offers more storage than most AVR and PIC counterparts.

• Peripherals: The STM32F051R8T7 includes advanced peripherals like a 12-bit ADC and DAC, which are often absent in AVR and PIC microcontrollers.

If you’re working on projects requiring high precision or advanced signal processing, the STM32F051R8T7 provides a clear advantage.

Advantages and trade-offs in specific scenarios

The STM32F051R8T7 offers several advantages, but it also comes with trade-offs depending on your application. Here’s what you should consider:

Advantages:

• Cost-Effectiveness: Its affordability makes it accessible for budget-conscious projects.

• Low Power Consumption: Ideal for battery-powered devices and IoT applications.

• Ease of Development: STMicroelectronics provides robust development tools, simplifying programming and debugging.

Trade-offs:

• Limited Performance: The 48 MHz clock speed may not suffice for high-performance applications.

• Basic Peripherals: While versatile, its peripheral set lacks advanced features like USB OTG or Ethernet.

Tip: Choose the STM32F051R8T7 for projects where simplicity, cost, and energy efficiency are priorities. For more demanding tasks, consider higher-end STM32 models.

Applications of the STM32F051R8T7 Microcontroller

Consumer electronics and smart devices

The STM32F051R8T7 microcontroller plays a vital role in modern consumer electronics. Its compact design and low power consumption make it ideal for devices like smartwatches, fitness trackers, and home automation systems. You can use its advanced peripherals, such as the 12-bit ADC, to process sensor data accurately. This feature is especially useful in devices that monitor environmental conditions or track user activity.

The microcontroller's ability to handle multiple communication protocols, including I2C and SPI, ensures seamless integration with other components. For example, you can connect it to displays, sensors, or wireless modules to create interactive and connected devices. Its affordability also makes it a popular choice for developing cost-effective smart gadgets.

Industrial automation and control systems

In industrial settings, the STM32F051R8T7 excels in automation and control applications. Its robust architecture and wide operating temperature range allow it to perform reliably in harsh environments. You can use its timers and PWM capabilities to control motors, valves, or other actuators with precision.

The microcontroller's 12-bit DAC and ADC enable accurate signal processing, which is crucial for monitoring and controlling industrial equipment. For instance, you can implement it in systems that measure pressure, temperature, or flow rates. Its low power modes also help reduce energy consumption, making it suitable for energy-efficient industrial designs.

IoT and connected devices

The STM32F051R8T7 is a perfect fit for IoT applications. Its low power consumption and standby modes allow you to design devices that operate for extended periods on battery power. You can use its communication interfaces to connect sensors, actuators, and wireless modules, creating a network of smart devices.

For example, you can build IoT sensors that monitor environmental data, such as temperature or humidity, and transmit the information to a central hub. The microcontroller's ability to process data in real-time ensures accurate and timely responses. Its compatibility with STMicroelectronics' development tools simplifies programming, helping you bring your IoT projects to life efficiently.

Educational and prototyping projects

The STM32F051R8T7 microcontroller is an excellent choice for educational and prototyping projects. Its simplicity, affordability, and robust feature set make it ideal for learning and experimenting with embedded systems. Whether you are a student, hobbyist, or educator, this microcontroller provides the tools you need to explore the world of electronics.

Why choose the STM32F051R8T7 for education?

You can use the STM32F051R8T7 to learn the fundamentals of microcontroller programming. Its ARM Cortex-M0 core offers a straightforward architecture, making it easier to understand how microcontrollers work. The availability of development tools like STM32CubeMX simplifies the process of configuring peripherals and generating code.

Tip: Start with basic projects like blinking an LED or reading sensor data to build your confidence.

Prototyping made easy

The STM32F051R8T7 is perfect for prototyping due to its versatile features. You can connect sensors, actuators, and communication modules using its multiple I/O pins and interfaces. For example, you can create a temperature monitoring system by interfacing a temperature sensor with the microcontroller's ADC.

Here’s a quick example of how you might use it in a project:

// Example: Reading temperature data using ADC
#include "stm32f0xx.h"

int main() {
    // Initialize ADC and read sensor data
    // Process and display the temperature
    return 0;
}

Benefits for educators and students

• Hands-on learning: Build real-world projects to understand theoretical concepts.

• Cost-effective: Affordable pricing makes it accessible for schools and universities.

• Scalable: Transition to advanced STM32 models as your skills grow.

The STM32F051R8T7 empowers you to turn ideas into reality. Its user-friendly design ensures that you can focus on creativity and innovation without worrying about complexity.

The STM32F051R8T7 microcontroller combines simplicity, efficiency, and versatility, making it a standout choice for embedded systems. Its ARM Cortex-M0 core delivers reliable performance at 48 MHz, while features like 64KB flash memory, 8KB RAM, and 55 programmable I/O pins support diverse applications. Whether you’re designing IoT devices, industrial controls, or consumer electronics, this microcontroller adapts to your needs with ease.

Here’s a quick overview of its specifications:

This microcontroller’s low power consumption and robust design make it suitable for both beginners exploring embedded systems and professionals developing advanced applications. Its affordability and comprehensive development tools ensure a smooth learning curve and efficient project execution.

Tip: Consider the STM32F051R8T7 for your next project to experience its balance of performance and cost-effectiveness firsthand.

FAQ

What makes the STM32F051R8T7 suitable for beginners?

The STM32F051R8T7 offers simplicity and affordability. Its ARM Cortex-M0 core is easy to program, and the STM32Cube tools simplify development. You can start with basic projects and gradually explore advanced features, making it perfect for learning embedded systems.

Can the STM32F051R8T7 handle IoT applications?

Yes, it can. Its low power modes and multiple communication interfaces, like I2C and SPI, make it ideal for IoT devices. You can connect sensors and wireless modules to create energy-efficient, connected systems.

How does the STM32F051R8T7 compare to AVR microcontrollers?

The STM32F051R8T7 uses a 32-bit ARM Cortex-M0 core, while most AVR microcontrollers use 8-bit or 16-bit cores. This gives you more processing power and memory for complex tasks. It also includes advanced peripherals like a 12-bit ADC and DAC.

What development tools can I use with the STM32F051R8T7?

You can use STM32CubeMX for peripheral configuration and code generation. STM32 Nucleo boards are great for prototyping. These tools simplify programming and debugging, helping you focus on your project.

Is the STM32F051R8T7 suitable for industrial applications?

Yes, it is. Its wide operating temperature range (-40°C to +105°C) and robust architecture ensure reliability in harsh environments. You can use its timers and ADC for precise control and monitoring in industrial systems.
